Toro 31900A - Installing the Sound Decal

g307379

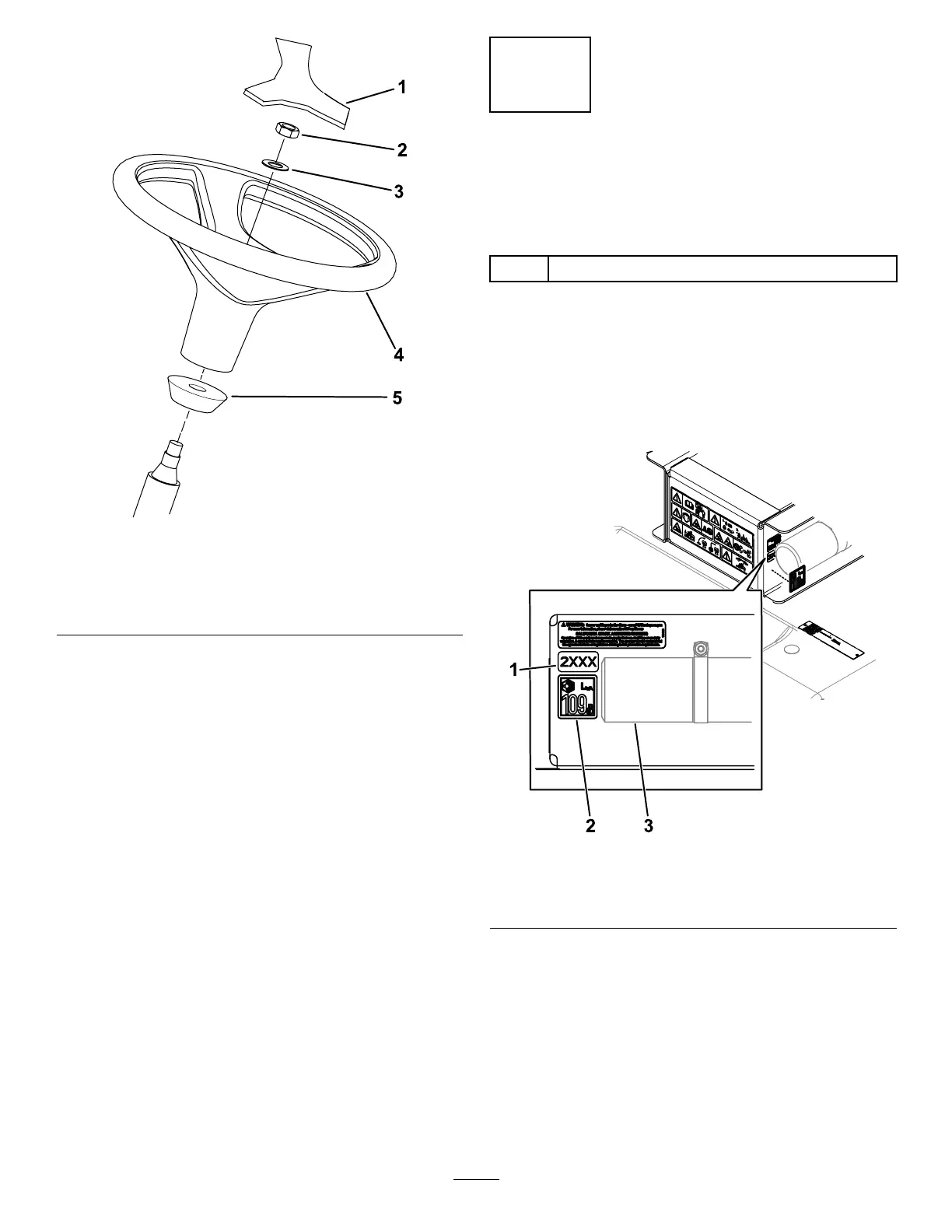

Figure 13
1. Cover 4. Steering wheel
2. Nylock nut 5. Foam collar
3. W asher
2. Remove the nylock nut and washer from the
steering shaft.
Note: Ensure that the foam collar remains on
the steering shaft ( Figure 13 ).
3. Slide the steering wheel and washer onto the
steering shaft ( Figure 13 ).
4. Use the nylock nut to secure the steering wheel
to the shaft. T ighten the nylock nut to 27 to 35
N∙m (20 to 26 ft-lb).
5. Mount the cover to the steering wheel ( Figure
13 ).
9
Installing the Sound Decal
Models 31907A and 31909A
Parts needed for this procedure:
1
Sound decal (Part 144-0512)
Procedure
For Models 31907A and 31909A, install the sound
decal (Part 144-0512) near the model year decal as
shown in Figure 14 .
Ensure that the surface is clean and dry .
g353549
Figure 14
1. Model year decal 3. Manual tube
2. Sound decal
17
