Toro 31900A - Installing the Bumper

10
Installing the Bumper
Models 31900A, 31901A, and
31907A Only
Parts needed for this procedure:
1 Bumper
2
Bolt (3/8 x 3 inches)
4
Bolt (3/8 x 3-1/4 inches)
6
Nut (3/8 inch)
Procedure
1. Remove the bumper from the shipping skid.
2. Loosely secure the upper area of the bumper
to the machine frame using 4 bolts (3/8 x 3-1/4
inches) and 4 nuts (3/8 inch) as shown in Figure
15 .

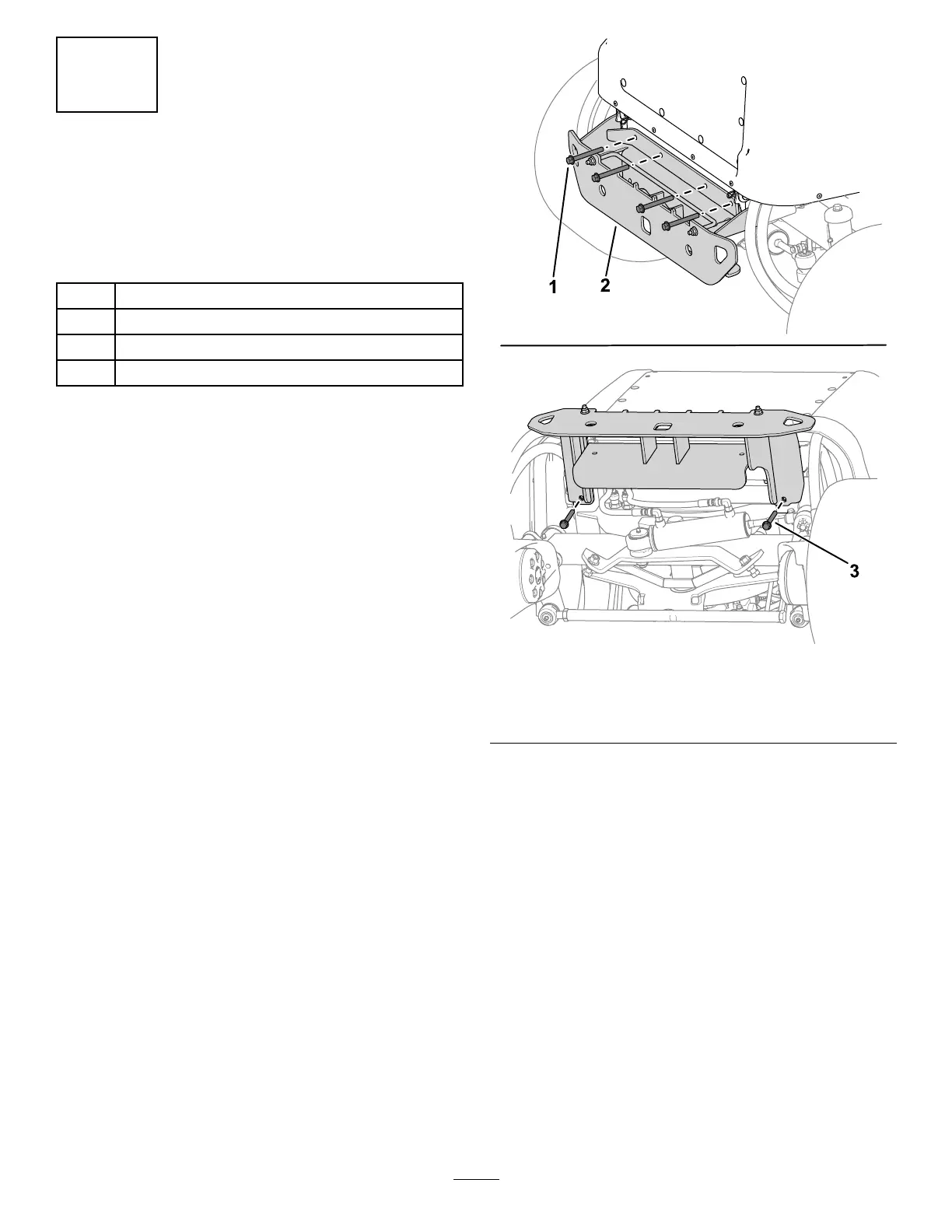

g302775
Figure 15
1. Bolt (3/8 x 3-1/4 inches) 3. Bolt (3/8 x 3 inches)
2. Bumper
3. Loosely secure the bumper under the machine
frame using 2 bolts (3/8 x 3 inches) and 2 nuts
(3/8 inch) as shown in Figure 15 .
4. T ighten the hardware.
18
