g467782

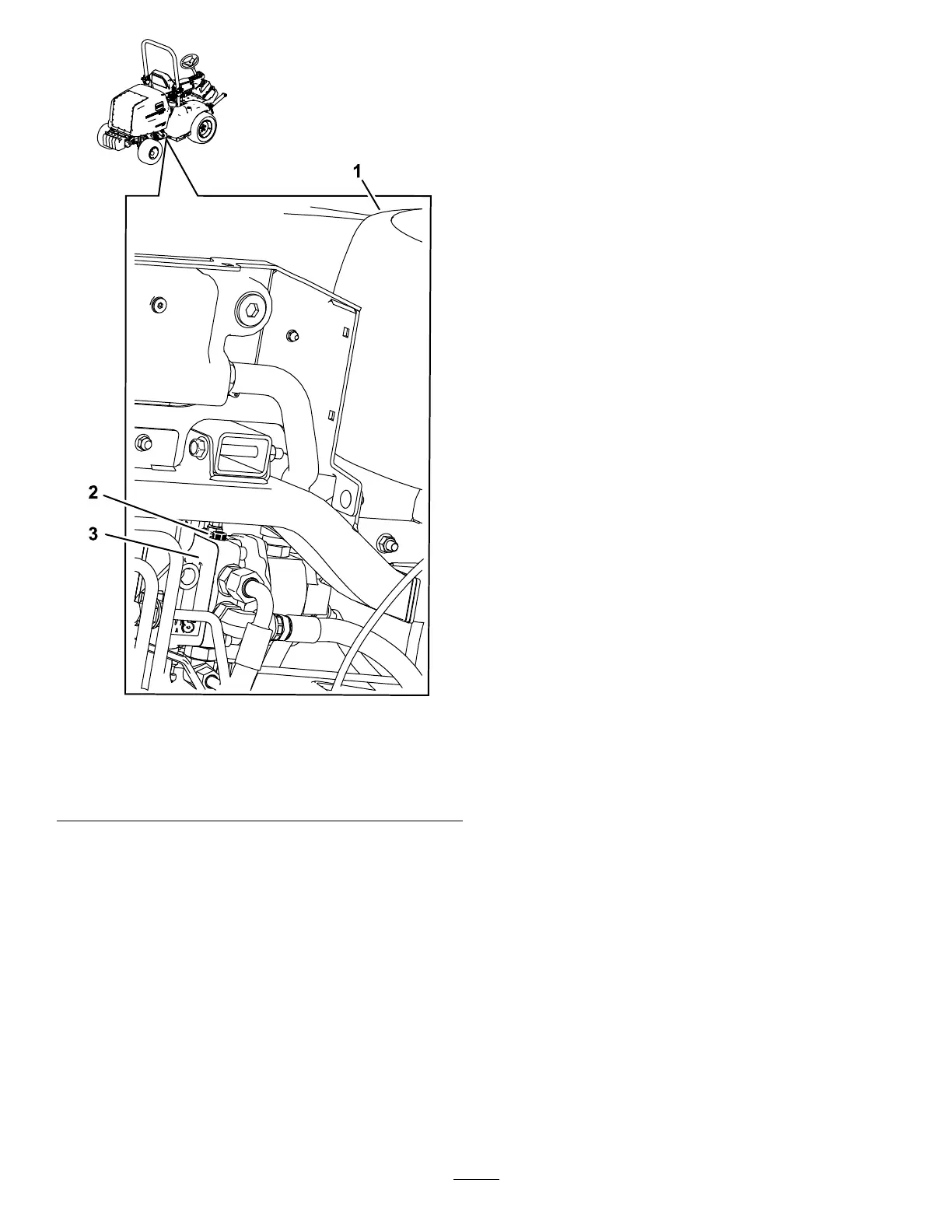

Figure 43
Bottom V iew
1. Right-front tire
3. T raction pump
2. Bypass valve
2. Use a 14 mm (9/16 inch) box-end wrench to
loosen the bypass valve, then open the valve no
more than 3 revolutions.
Important: Do not start or run the engine
when the valve is set to the bypass position.
3. After towing and before starting the engine,
tighten the bypass valve to 12 N·m (9 ft-lb).
Hauling the Machine
• Use care when loading or unloading the machine
into a trailer or a truck.
• Use full-width ramps for loading the machine into
a trailer or a truck.
• T ie the machine down securely .
• Remove the key before storing or hauling the
machine.
46
