Lubrication
Greasing the Bearings and
Bushings
Service Interval : Before each use or daily —Grease
the PT O driveshaft (cross-bearings
and telescoping splines).
Every 50 hours —Grease the bearings and
bushings.
The machine has grease ttings that you must
lubricate regularly with No. 2 lithium grease.
Important: Lubricate the machine immediately
after every washing.

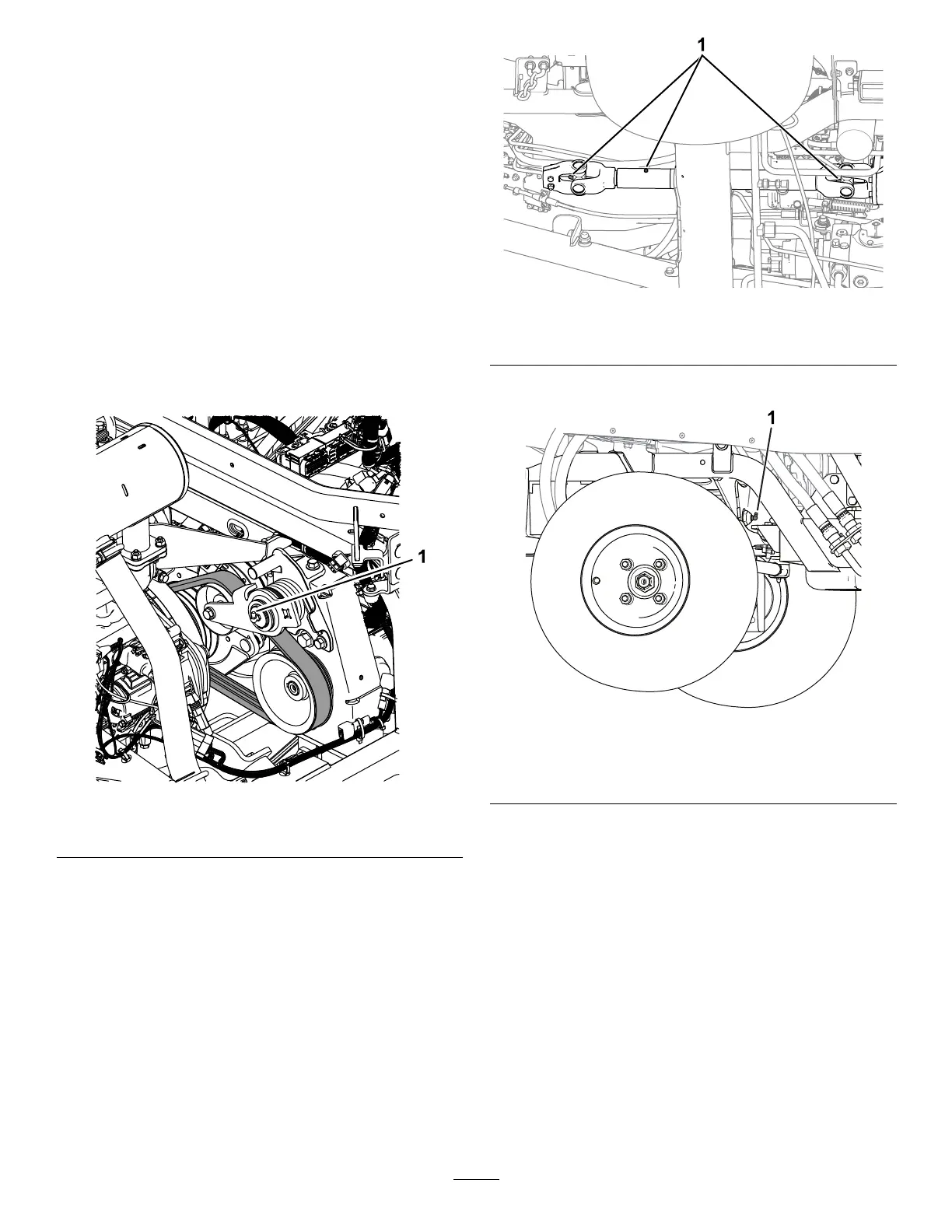

• Idler arm ( Figure 47 )
g467780
Figure 47
1. Idler arm
• PT O driveshaft ( Figure 48 )
Important: Grease the driveshaft before each
use or daily .
g303694
Figure 48
1. Grease ttings
• Axle pivot pin ( Figure 49 )
g308668
Figure 49
1. Axle pivot pin
• Front of the machine ( Figure 50 ):
– Attachment pivot hubs (2)
– Lift-cylinder bushings (2)
– Lift-arm pivot pins (2)
