Toro 31900A - Page 52

g285509

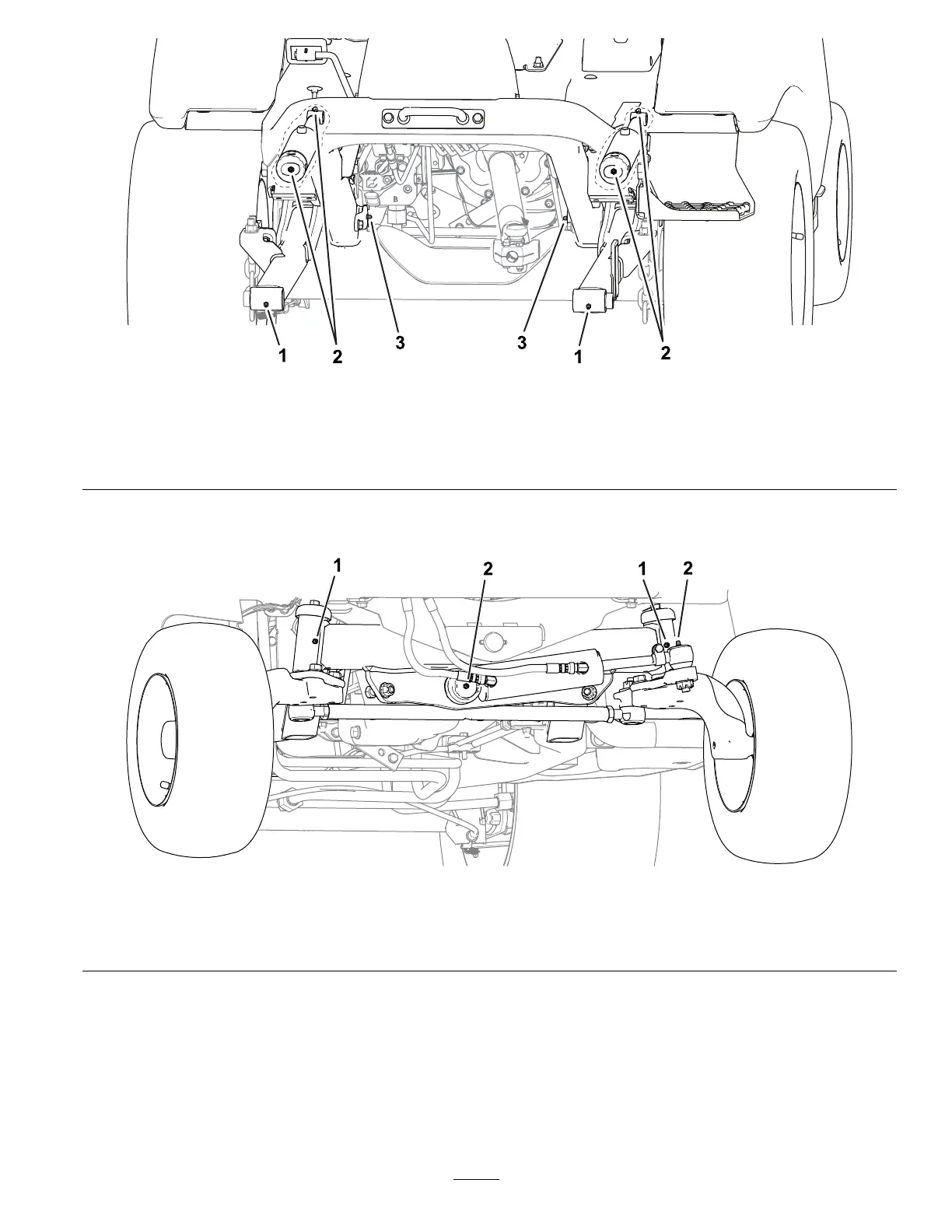

Figure 50
Front of the machine
1. Attachment pivot hubs
3. Lift-arm pivot hubs
2. Lift-cylinder bushings
• Rear of the machine ( Figure 51 ):
– Hydraulic-cylinder ball joint (2)
– Axle spindle hubs (2)
g353292
Figure 51
Rear of the machine (bumper removed)
1. Axle spindle hubs
2. Steering-cylinder ball joint
