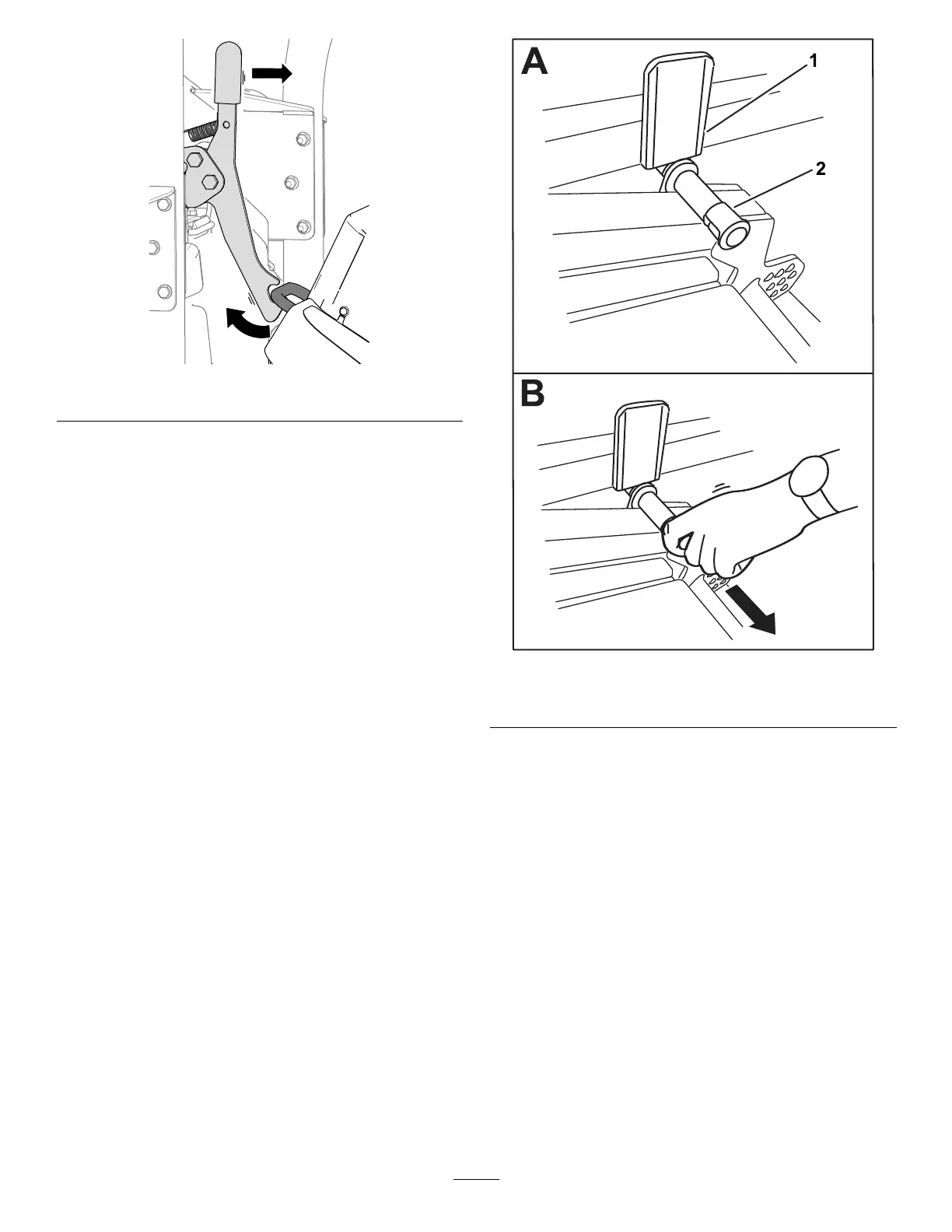

Figure 41
2. Slowly rotate the cutting unit down until the pin
contacts the lift-arm plate ( A in Figure 42 ).
g298288
Figure 42
1. Lift-arm plate
2. Pin
3. Use your foot to press down on the cutting unit,
then pull out on the pin ( B in Figure 42 ) to let the
cutting unit settle into the T RANSPORT position.
4. Insert the height-of-cut pins through the
height-of-cut plates and chains.
T owing the Machine
If you must tow or push the machine, set the traction
pump to bypass the hydraulic uid. Move the
machine at a speed below 4.8 kph (3 mph) for a
very short distance.
Important: If you exceed towing limits, severe
damage to the hydraulic pump may result.
If you must move the machine more than a short
distance, transport it on a trailer .
1. Access the bypass valve from under the
machine.
