Drive System
Maintenance
T orquing the Wheel-Lug
Nuts
Service Interval : After the rst hour
After the rst 10 hours
Every 200 hours
Wheel-lug nut torque specication: 102 to 108 N∙m
(75 to 80 ft-lb)
T orque the lug nuts at the front and rear wheels
(4-wheel-drive machines only) in the pattern as shown
in Figure 69 and Figure 70 to the specied torque.
• Front wheels: refer to Figure 69

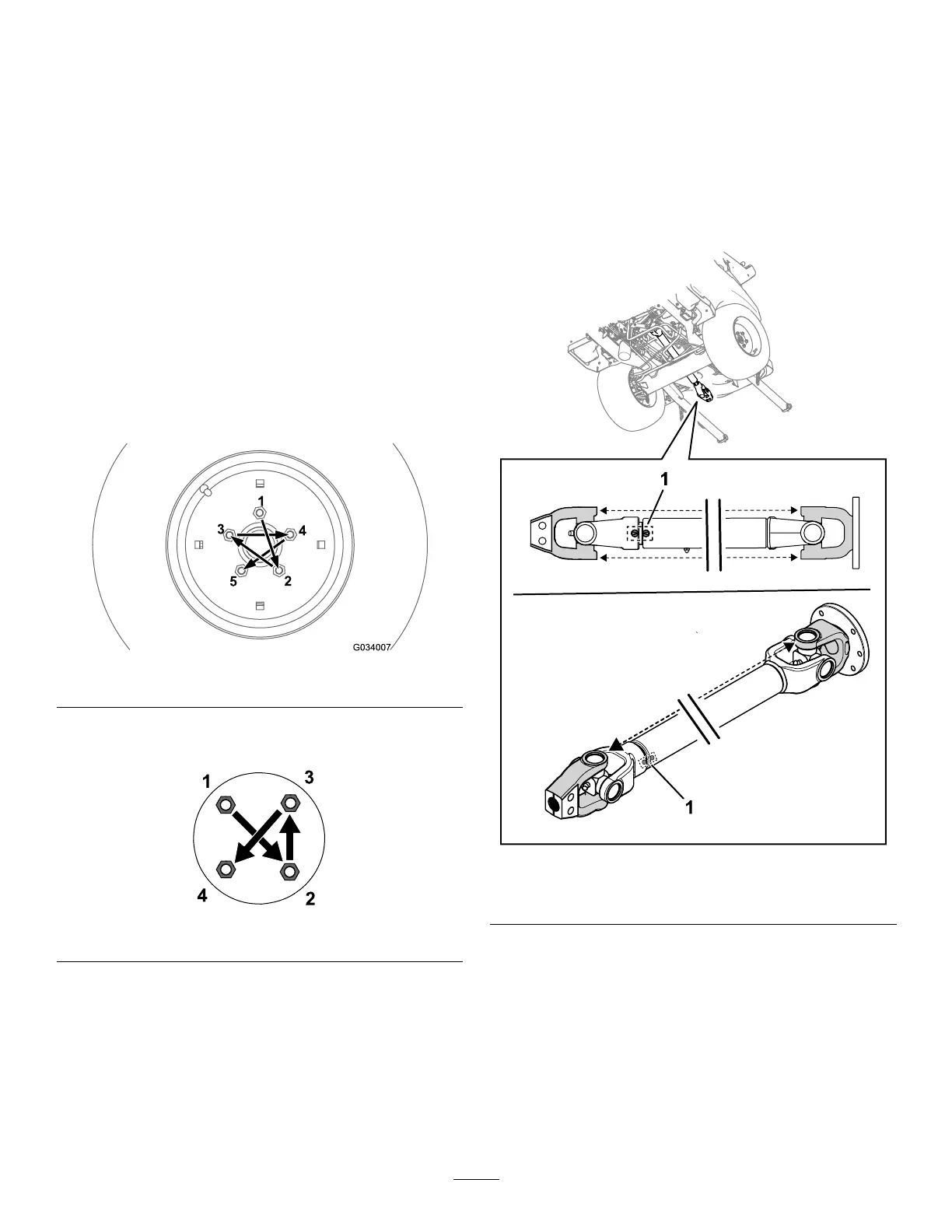

g034007
Figure 69
• Rear wheels (4-wheel-drive machines only): refer
to Figure 70
g274650
Figure 70
Aligning the PT O Driveshaft
If you separate the PT O-driveshaft telescoping end
the from the clutch end, ensure that the markings are
aligned ( Figure 71 ) when you install the telescoping
end. The end yokes should also be aligned as shown
in Figure 71 .
Important: If the markings on the driveshaft are
not aligned, severe imbalance may occur in the
driveline system.
g353347
Figure 71
1. Driveshaft markings
