Cab Controls
Machines Equipped with a Cab

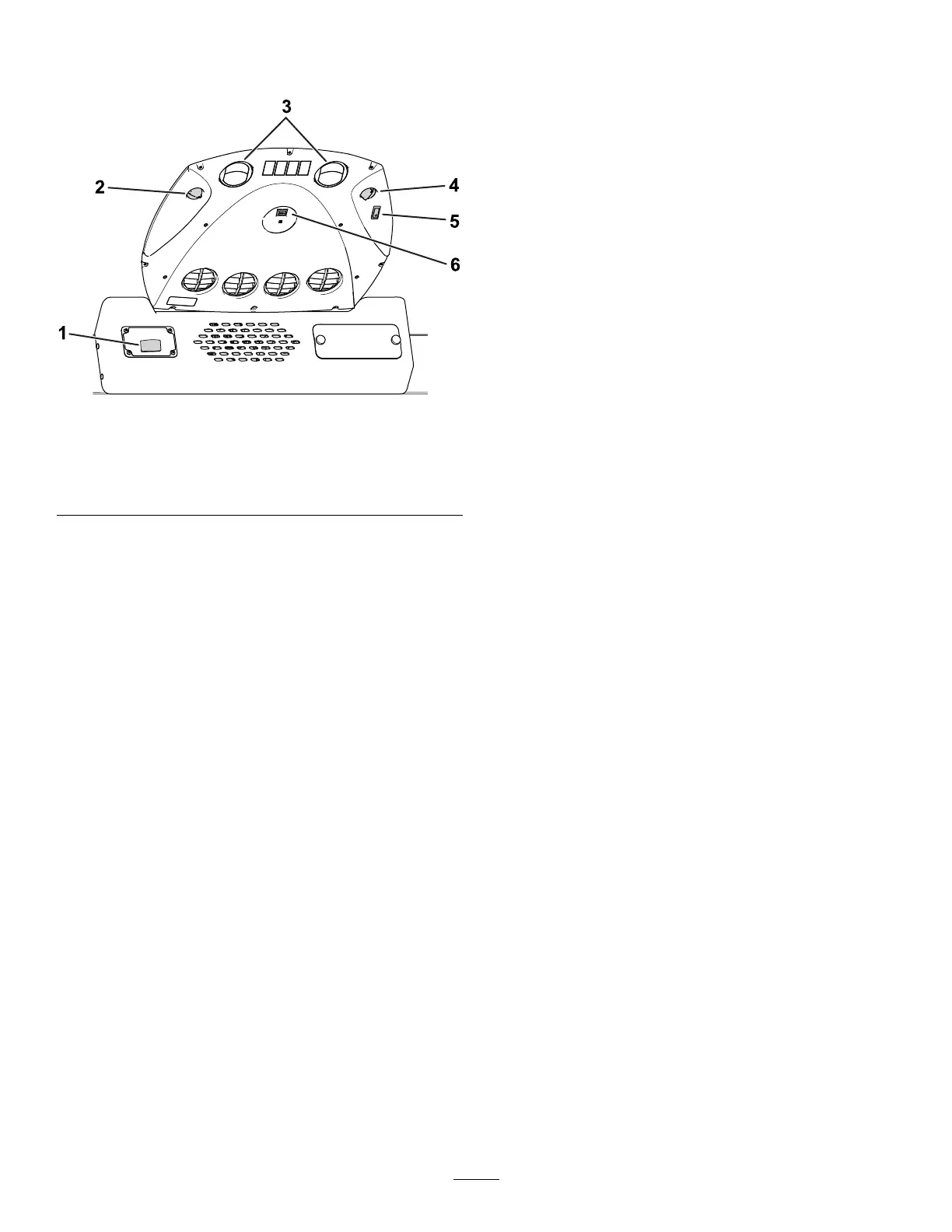

g320790
Figure 29
1. Windshield-wiper switch 4. Light switch
2. Fan-control knob 5. T emperature-control knob
3. Recirculation vents 6. Air-conditioning switch
W indshield-W iper Switch
Use the switch ( Figure 29 ) to turn the windshield
wipers on or of f.
Fan-Control Knob
Rotate the fan-control knob ( Figure 29 ) to regulate
the speed of the fan.
Light Switch
Press the switch ( Figure 29 ) to turn the dome light
on or of f.
T emperature-Control Knob
Rotate the temperature-control knob ( Figure 29 ) to
regulate the air temperature in the cab.
Air-Conditioning Switch
Use this switch ( Figure 29 ) to turn the air conditioning
on or of f. Use the fan-control knob to control the
air-conditioning.
Open the recirculation vents ( Figure 29 ) when the air
conditioning is on.
