W ARNING
If you leave the key in the switch, someone
could accidently start the engine and
seriously injure you or bystanders.
Remove the key from the switch and do not
start the engine with the cutting unit in the
S ERVICE position.
1. Park the machine a level surface.
2. Press the lift switch to raise the cutting unit to
the T RANSPORT position.
3. Engage the parking brake, shut of f the engine,
and remove the key .
4. Remove the pins from the height-of-cut plates
( Figure 38 ).

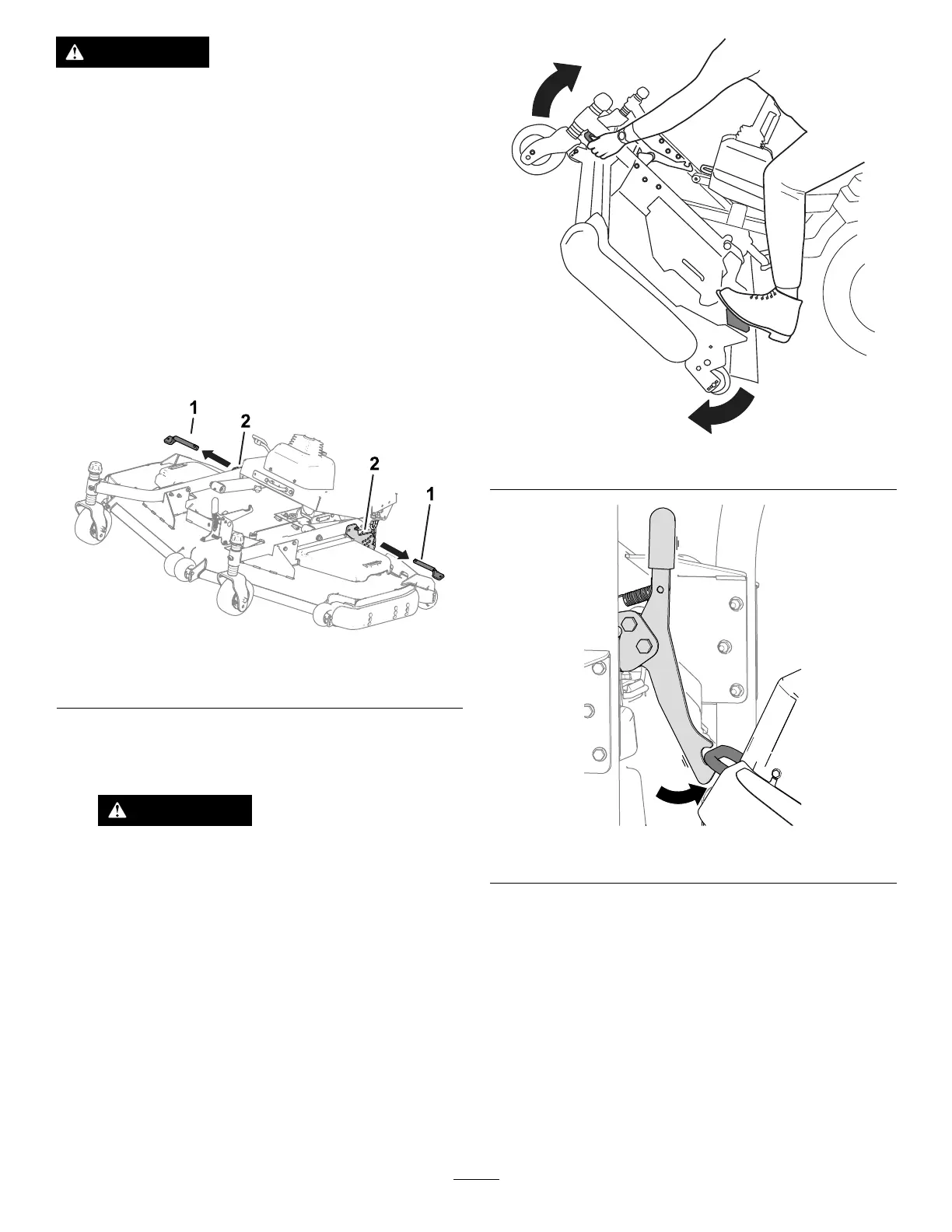

g258474
Figure 38
1. Height-of-cut pins 2. Height-of-cut plates
5. Rotate the cutting unit ( Figure 39 ) so that the
latch engages with the tie-down bracket ( Figure
40 ).
W ARNING
The cutting unit is heavy .
Use assistance when you lift the cutting
unit.
g298275
Figure 39
g298276
Figure 40
Rotating the Cutting Unit to the
T RANSPORT Position
Perform this procedure to rotate the cutting unit from
the S ERVICE position to the T RANSPORT position.
1. Release the cutting-unit latch from the tie-down
bracket ( Figure 41 ) by rotating the cutting unit
slightly forward (refer to Figure 39 ) and pulling
the latch handle forward.
