4.4 HDD 4 Replacement Procedures
5. (If an HDD-2 is installed) Turn the screw (with e-ring) securing an HDD-2 slot
cover and remove an HDD-2 slot cover.
6. Remove the following screw securing the HDD-2 assembly.
 M2.5x6.0B FLAT BIND screw x１
7. Disconnect the HDD-2 assembly from the connector CN1860 on the system board by
sliding it toward the arrow pointed.
HDD-2 slot cover
Screw (with e-ring)
M2.5x6.0B FLAT BIND
HDD-2 slot assembly
CN1860

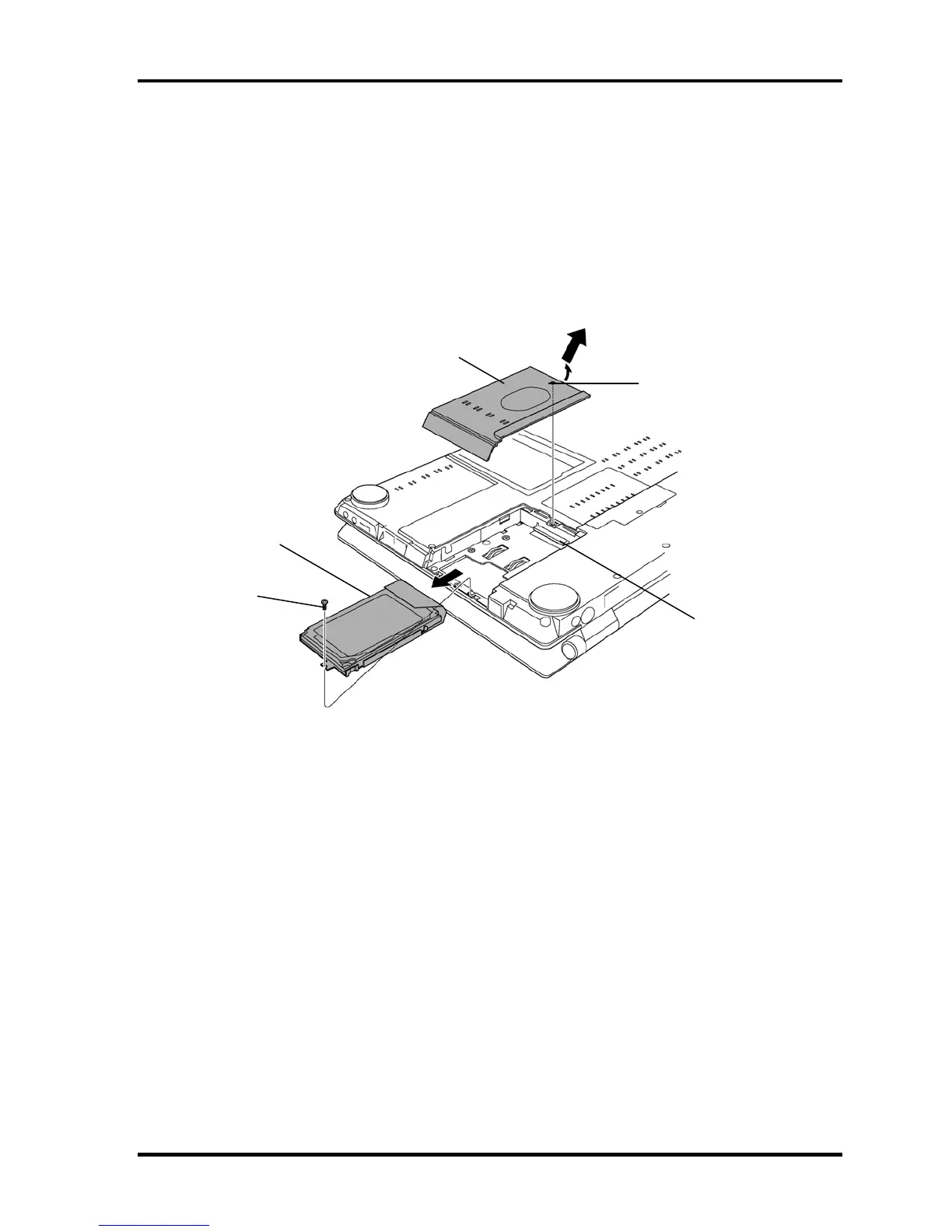

Figure 4-5 Removing the HDD-2 assembly
4-14 [CONFIDENTIAL] QOSMIO G20 Maintenance Manual (960-511)
