4.8 Bottom cover assembly 4 Replacement Procedures
“8”
“16”
“8” “16”
“4” or “LH”
“16”
“8” “16”
“8” “16”
“8”
“6”
“8”
“6”
“8”
“8”
“8”
“6”
“16”

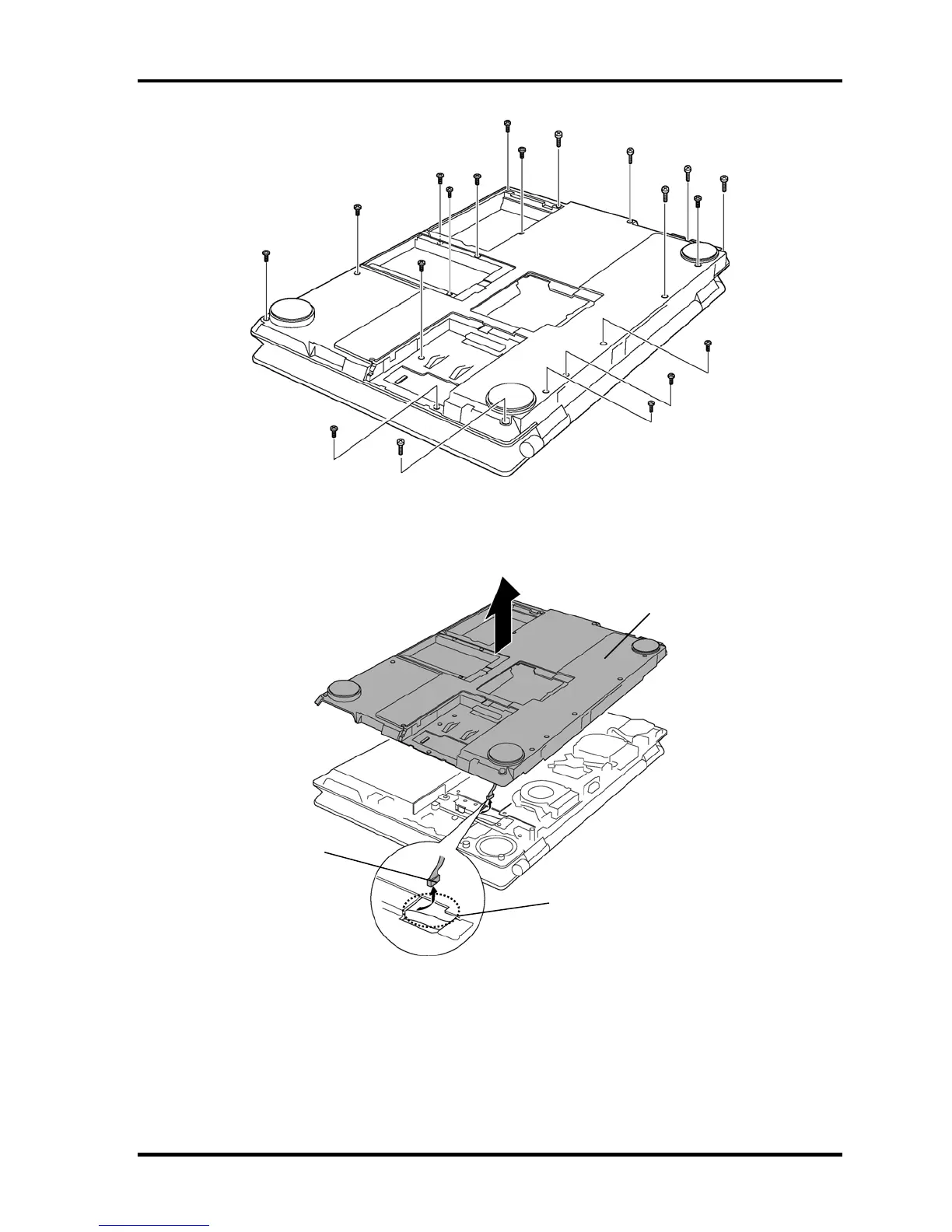

Figure 4-13 Removing the screws from bottom cover assembly
13. Pulling out the RJ45 harness from the slot, remove the bottom cover assembly.
Bottom cover assembly
RJ45 harness
Slot
Figure 4-14 Removing the bottom cover assembly
4-26 [CONFIDENTIAL] QOSMIO G20 Maintenance Manual (960-511)
