4.33 LCD unit / FL inverter 4 Replacement Procedures
8. Remove the following screws securing the LCD unit.
 M2.0x4.0C BIND screw x4
9. With the bottom edge of the LCD unit on the display cover, lift only the top edge of
the LCD unit. After peeling off the copper tape, disconnect the LCD harness from
the connector on the back of the LCD.
10. Remove the LCD unit.
Copper tape
LCD harness
M2.0x4.0C BIND
LCD unit

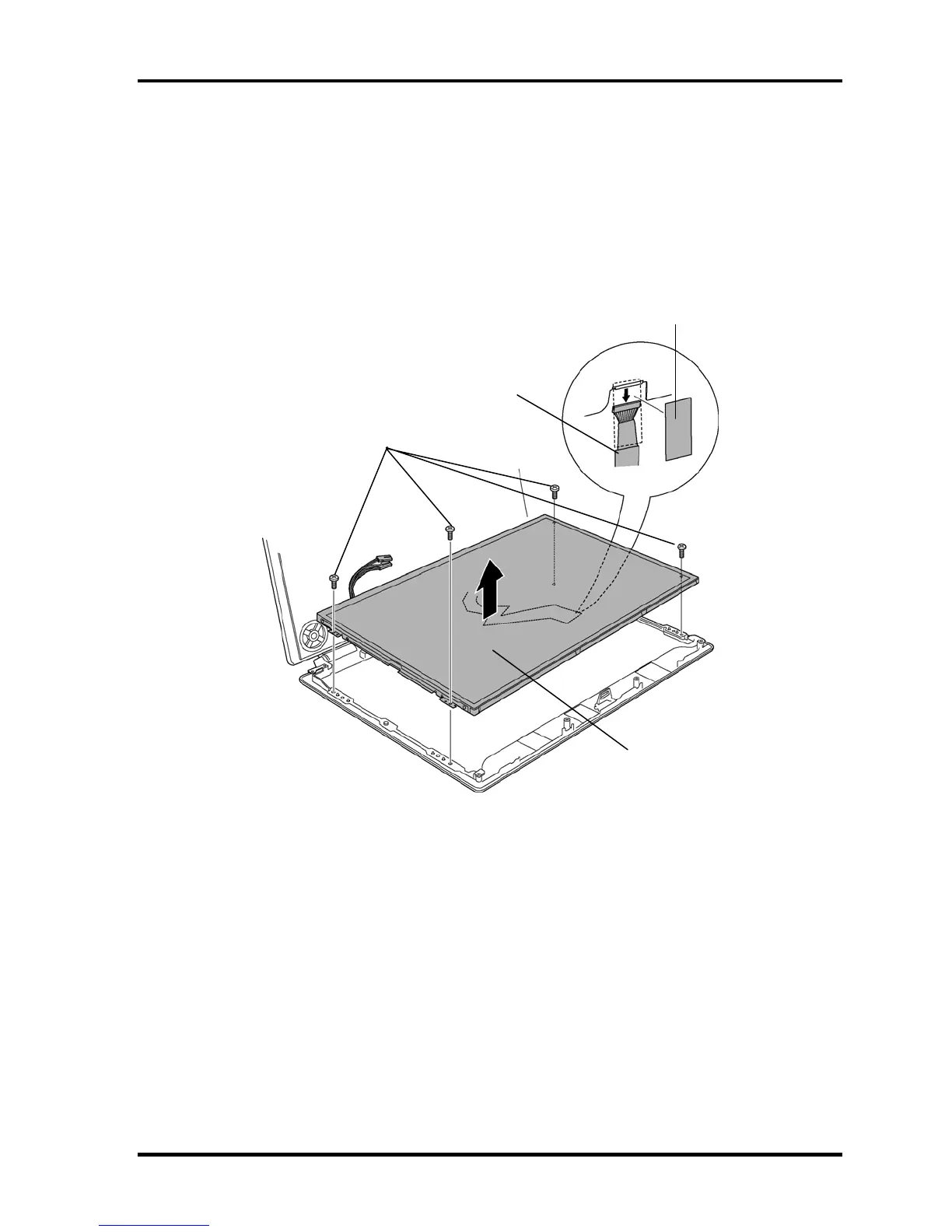

Figure 4-48 Removing the LCD unit
4-76 [CONFIDENTIAL] QOSMIO G20 Maintenance Manual (960-511)
