4 Replacement Procedures 4.33 LCD unit / FL inverter
11. Remove the following screws securing the LCD support and remove the LCD
supports from the LCD unit.
M2.0x3.0C S-THIN FLAT BIND screw x4
LCD support
M2.0x3.0C
SUPER THIN HEAD
M2.0x3.0C
SUPER THIN HEAD

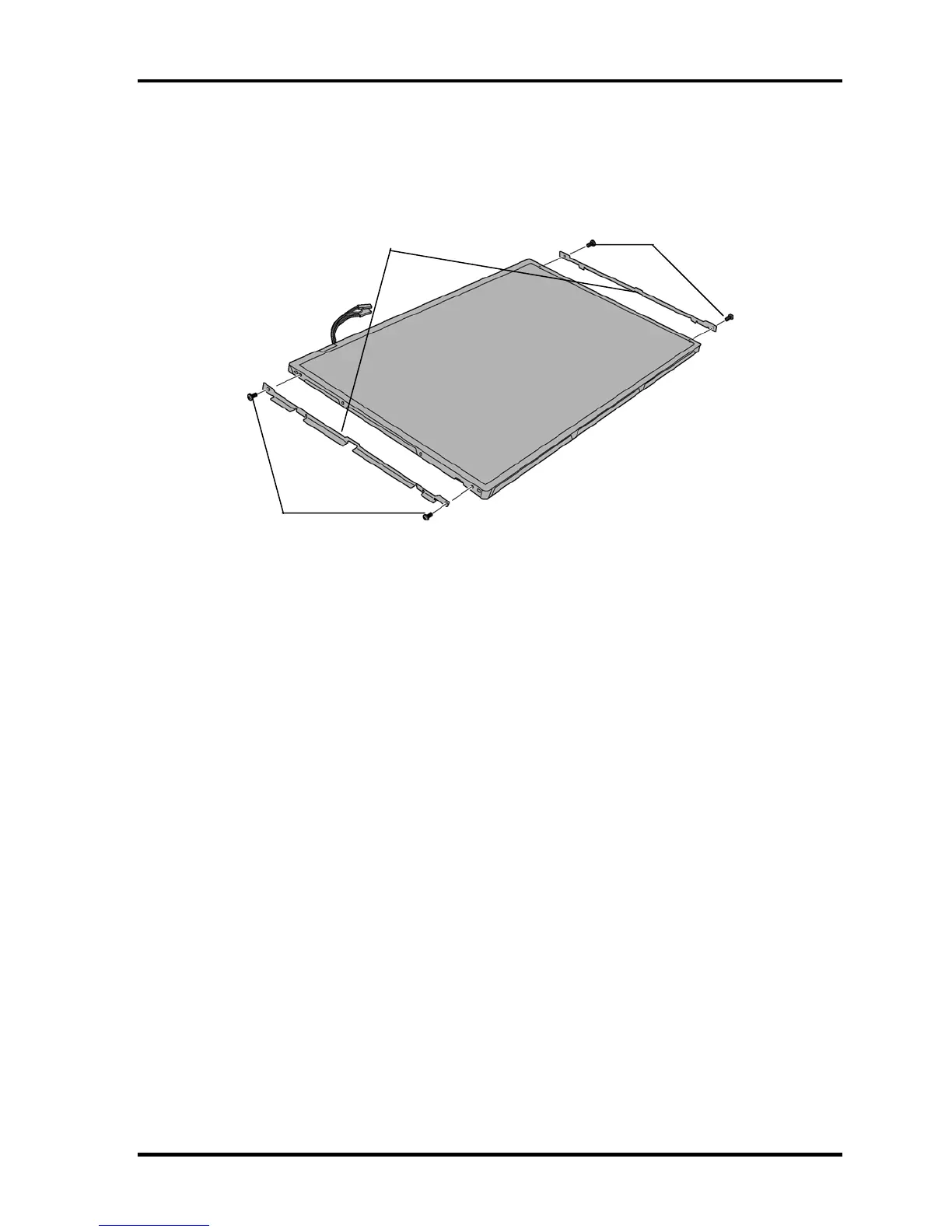

Figure 4-49 Removing the LCD support
