4.3 ExpressCard & PC card / Bridge media 4 Replacement Procedures
[PC Card (Lower slot)]
PC card
Eject button

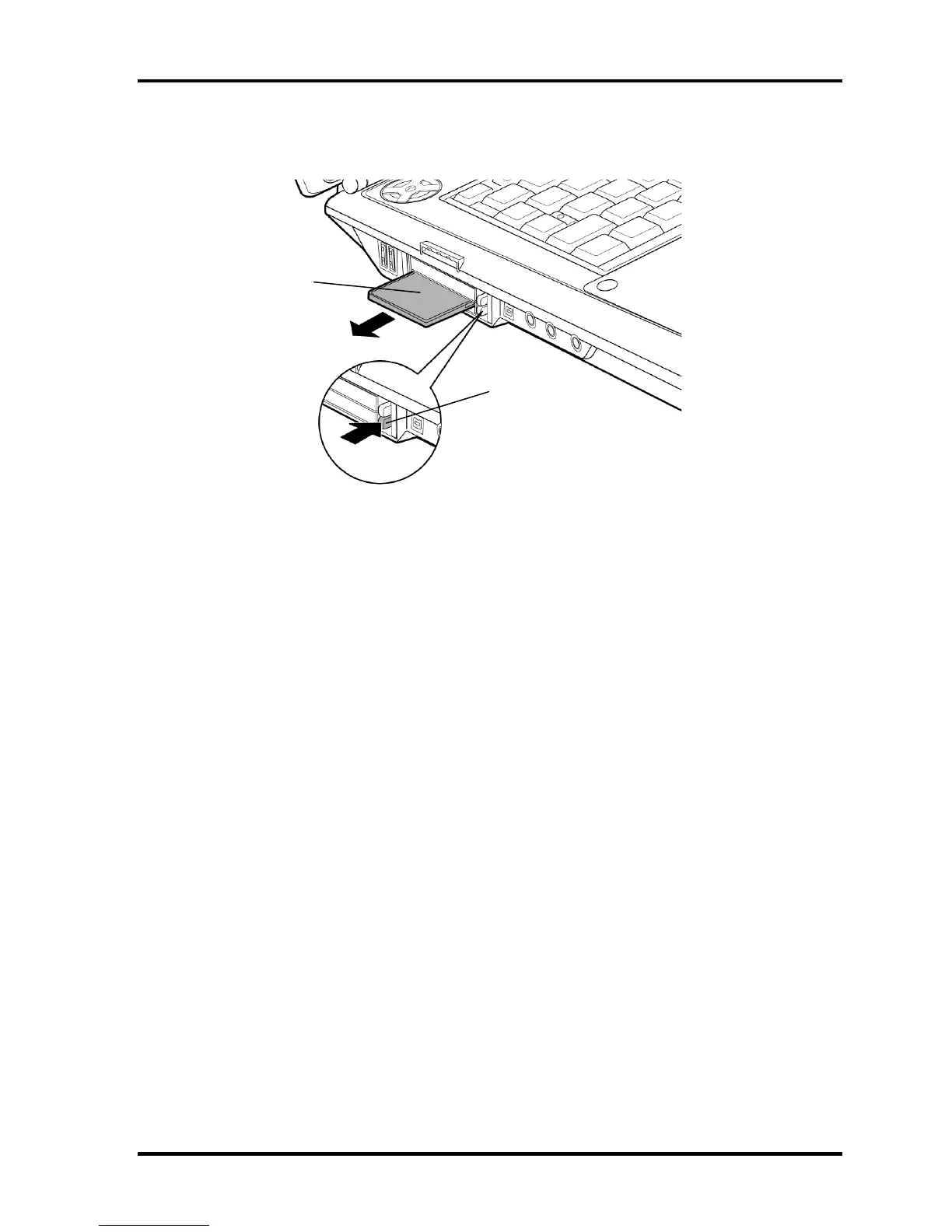

Figure 4-2 Removing the ExpressCard or PC card
Installing the ExpressCard & PC card
The following describes the procedure for installing the ExpressCard & PC card (See Figure
4-2).
1. Make sure the eject button does not stick out.
2. Insert the ExpressCard or PC card and press it until it is securely connected.
QOSMIO G30 Maintenance Manual (960-546) [CONFIDENTIAL] 4-11
