4 Replacement Procedures 4.23 GPU Fan
4.23 GPU Fan
Removing the GPU fan
The following describes the procedure for removing the GPU fan (See Figure 4-34).
1. Pass the GPU fan cable through the insulator and remove the GPU fan while
releasing the hook.
GPU fan
Insulator
Hook
GPU fan cable

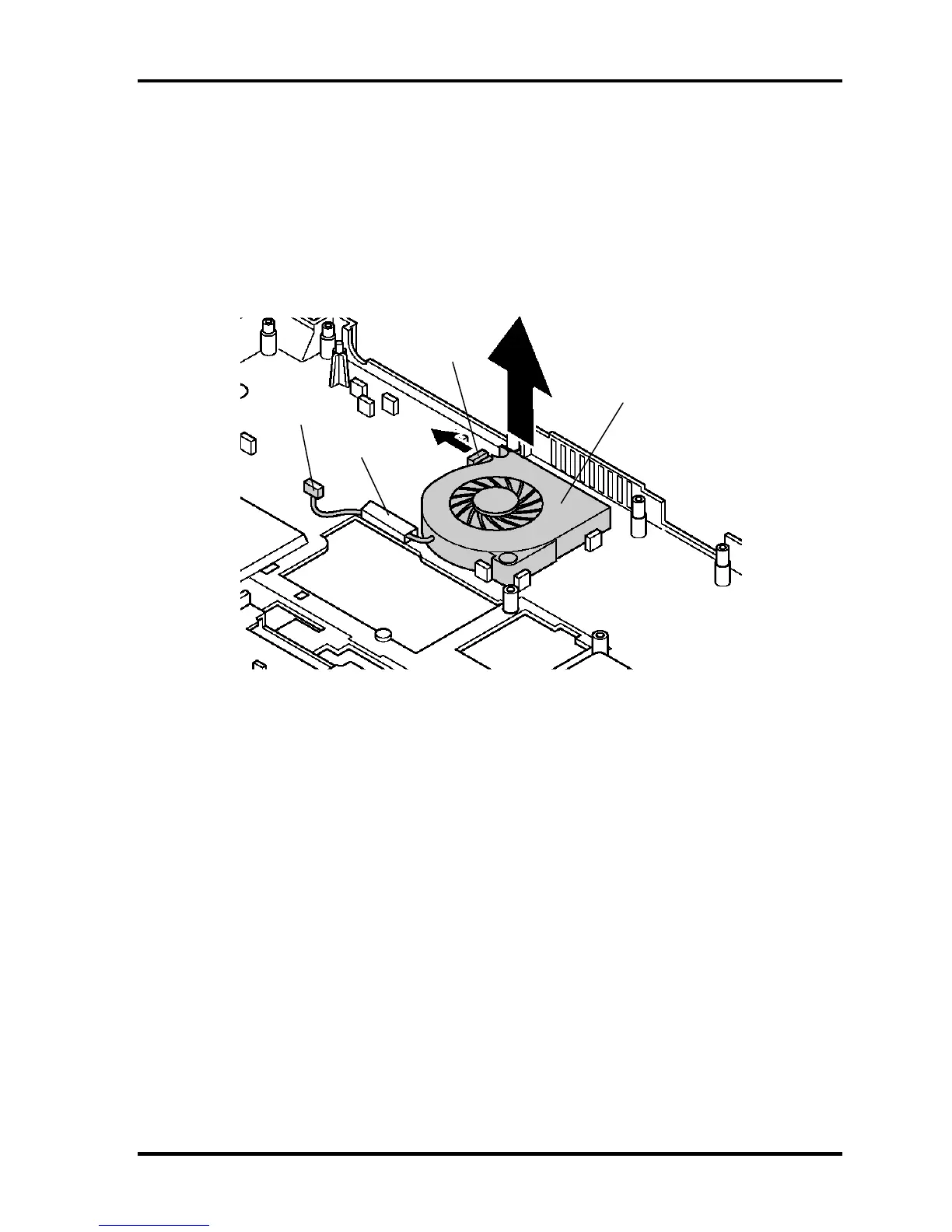

Figure 4-34 Removing the GPU fan
Installing the GPU fan
The following describes the procedure for installing the GPU fan (See Figure 4-34).
1. Install the GPU fan to the slot of the base assembly.
2. Pass the GPU fan cable through the insulator and arrange it in place.
4-56 [CONFIDENTIAL] QOSMIO G30 Maintenance Manual (960-546)
