Toshiba Qosmio G30 Maintenance Manual

4.18 RTC battery 4 Replacement Procedures
4.18 RTC battery
Removing the RTC battery
The following describes the procedure for removing the RTC battery (See Figure 4-28).
1. Disconnect the RTC battery cable from the connector CN9990 on the system board.
2. Take out the insulator (RTC battery is in the insulator) from the slot and separate
the insulator and RTC battery.
RTC battery
Insulator
RTC battery cable
CN9990

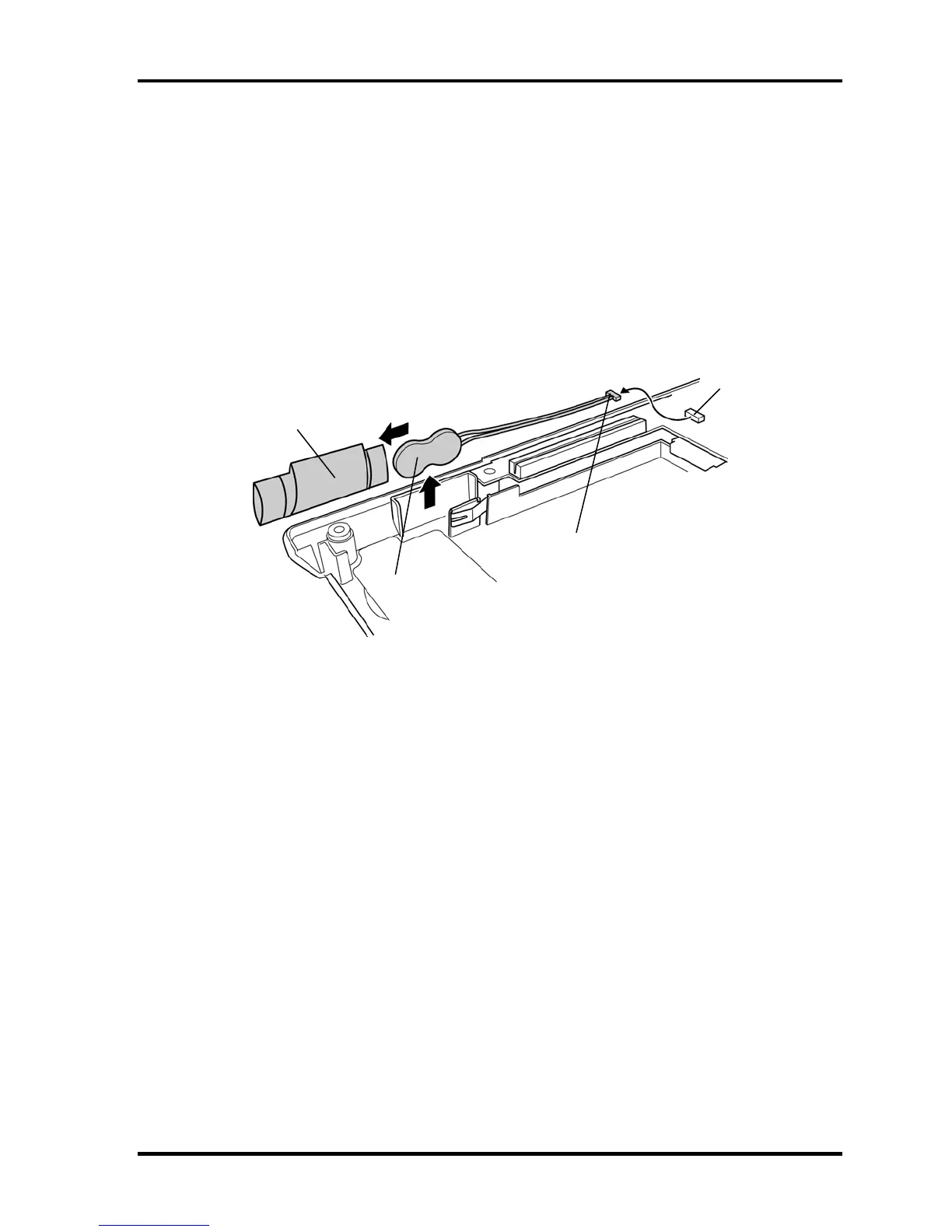

Figure 4-28 Removing the RTC battery
Installing the RTC battery
The following describes the procedure for installing the RTC battery (See Figure 4-28).
1. Set the RTC battery into the insulator.
2. Install the RTC battery to the slot of the base assembly.
3. Connect the RTC battery cable to the connector CN9990 on the system board.
QOSMIO G30 Maintenance Manual (960-546) [CONFIDENTIAL] 4-47
