Toshiba Qosmio G30 Maintenance Manual

4.10 Bluetooth module 4 Replacement Procedures
4.10 Bluetooth module
Removing the Bluetooth module
The following describes the procedure for removing the Bluetooth module (See Figure 4-14).
1. Peel off the glass tape.
2. Unhook the stopper and take out the Bluetooth module from the slot.
3. Disconnect the Bluetooth flat cable from the connector on the Bluetooth module.
4. Disconnect the Bluetooth antenna cable from the connector on the Bluetooth
module.
5. Disconnect the Bluetooth flat cable from the connector CN4400 on the system board.
Bluetooth antenna cable
Bluetooth flat cable
CN4400
Bluetooth module
Glass tape

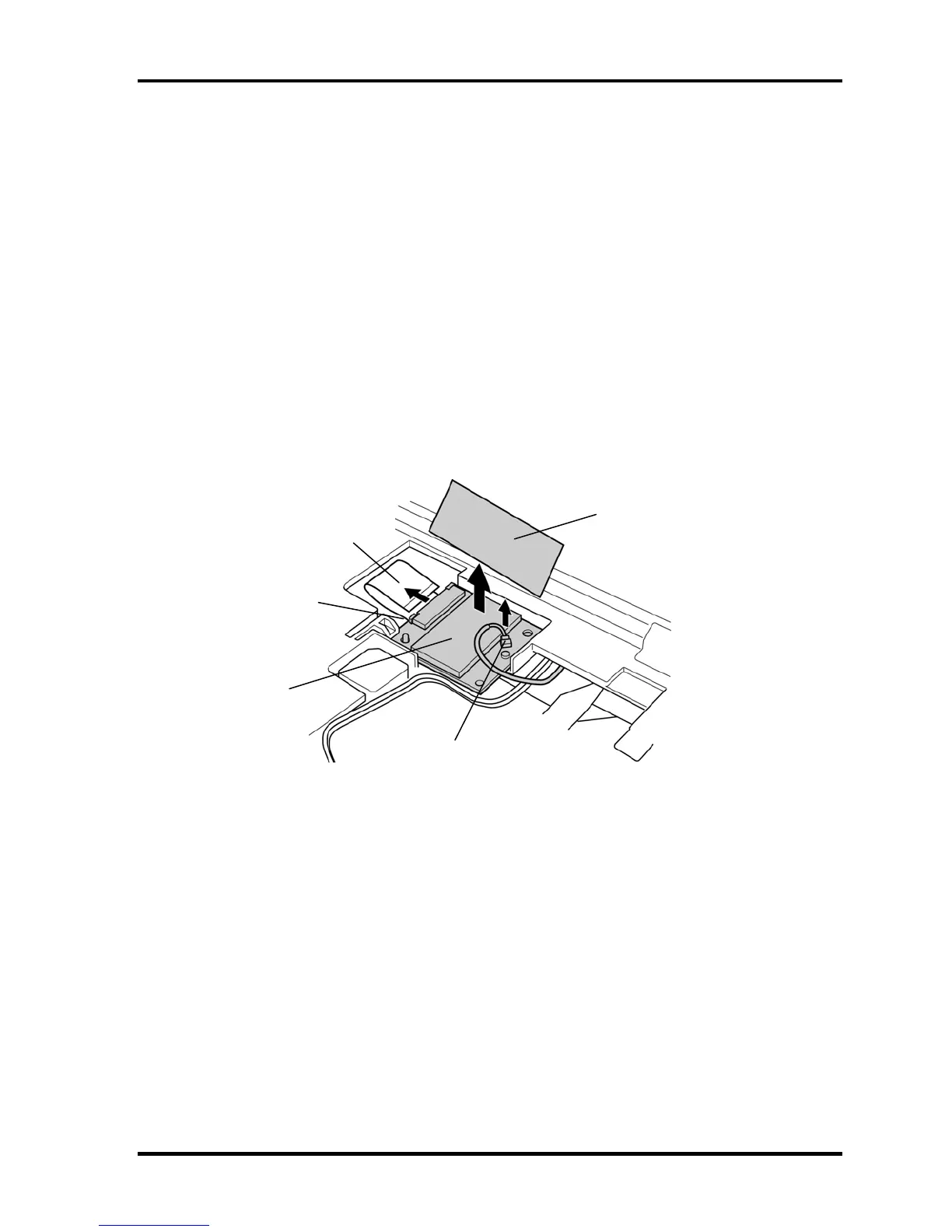

Figure 4-14 Removing the Bluetooth module
Installing the Bluetooth module
The following describes the procedure for installing the Bluetooth module (See Figure 4-14).
1. Connect the Bluetooth flat cable to the connector CN4400 on the system board.
2. Connect the Bluetooth flat cable to the connector on the Bluetooth module.
3. Install the Bluetooth module to the slot.
4. Connect the Bluetooth antenna cable to the connector on the Bluetooth module.
5. Stick the glass tape in place.
QOSMIO G30 Maintenance Manual (960-546) [CONFIDENTIAL] 4-27
