1 Hardware Overview 1.5 Keyboard
1.5 Keyboard
A keyboard which consists of 85(US)/86(UK) keys is mounted on the system unit. The
keyboard is connected to membrane connector on the system board and controlled by the
keyboard controller.

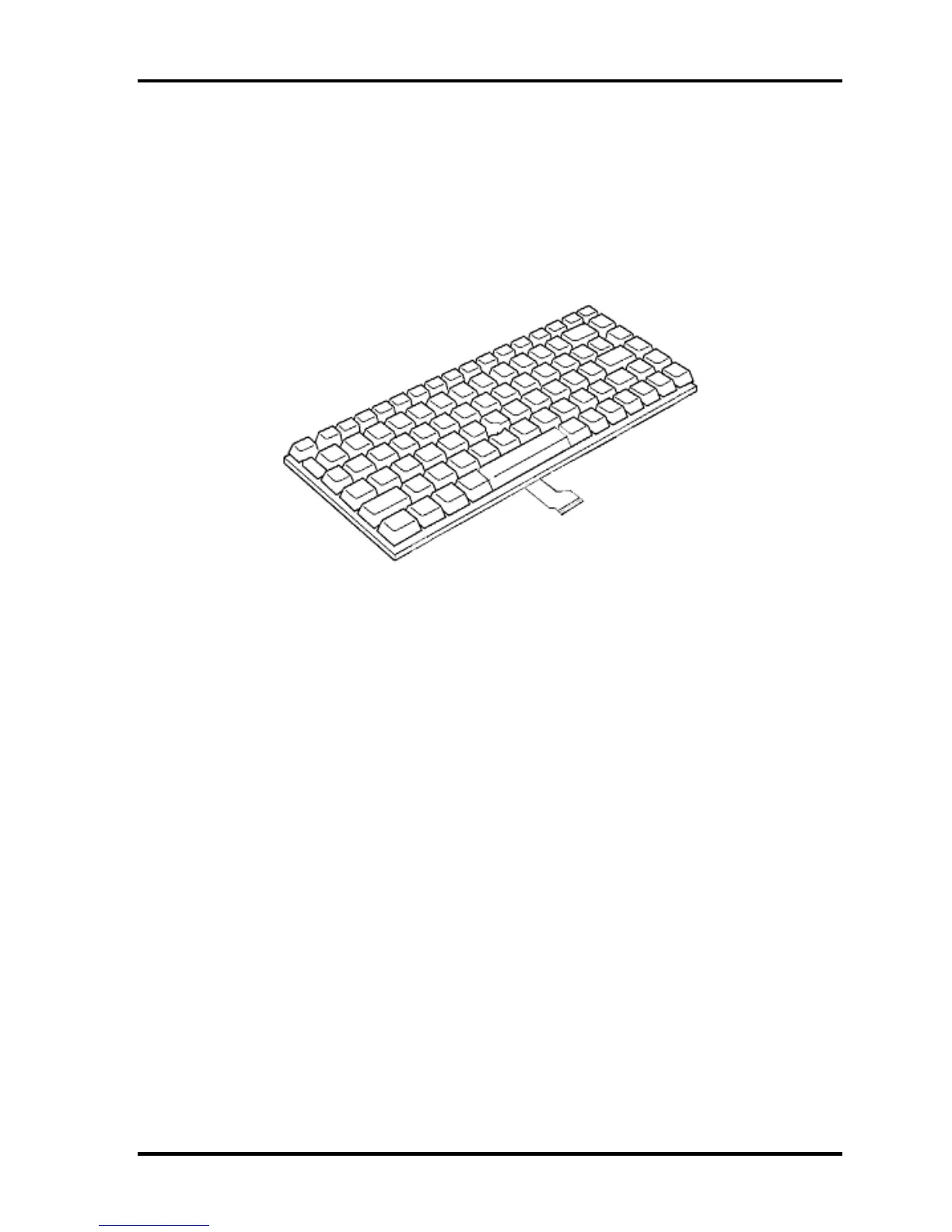

Figure 1-6 is a view of the keyboard.
Figure 1-6 Keyboard
See Appendix E for details of the keyboard layout.
1-16 [CONFIDENTIAL] QOSMIO G30 Maintenance Manual (960-546)
