4.16 Switch board 4 Replacement Procedures
4.16 Switch board
Removing the Switch board
The following describes the procedure for removing the switch board (See Figure 4-23).
1. Peel off the glass tape A and move the cables on the reinforcing plate.
2. Peel off the glass tape B.
3. Disconnect the switch cable from the connector CN9660 on the switch board.
4. Remove the following screws securing the switch board.
• M2.5×6S Tapping screw ×2
5. Turn up the insulator and remove the reinforcing plate and switch board.
M2.5×6S Tapping
Glass tape B
M2.5×6S Tapping
Switch cable
Switch board
CN9660
Reinforcing plate
Glass tape A
Cables
Insulator

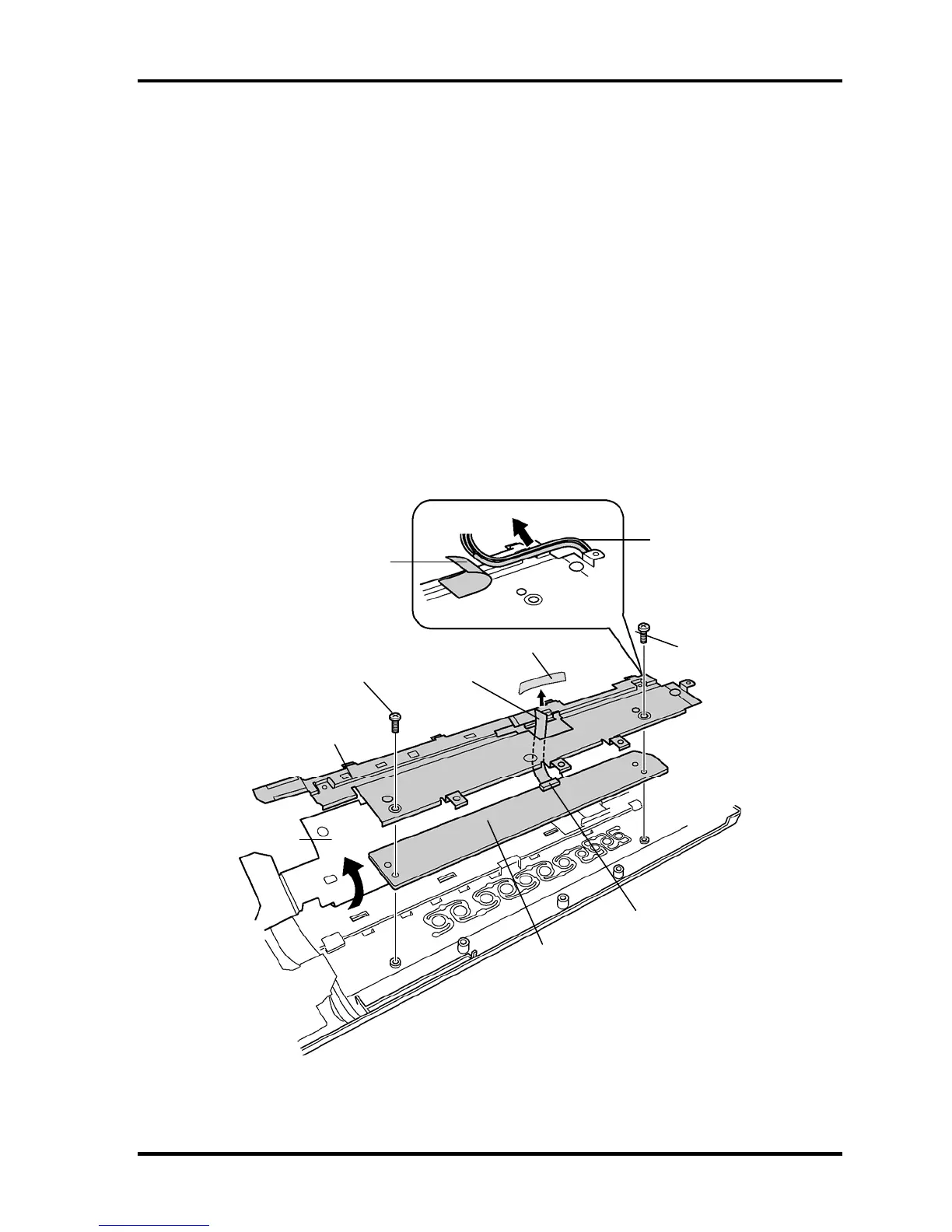

Figure 4-23 Removing the switch board
QOSMIO G30 Maintenance Manual (960-546) [CONFIDENTIAL] 4-39
