4 Replacement Procedures 4.20 LED board
4.20 LED board
Removing the LED board
The following describes the procedure for removing the sound board (See Figure 4-30).
1. Remove the following screw securing the LED board.
• M2.5×6S Tapping screw ×1
2. Disconnect the LED cable from the connector CN9500 on the system board.
3. Remove the LED board from the base assembly.
4. Disconnect the LED cable from the connector CN9510 on the LED board.
CN9500
M2.5x6S Tapping
CN9510
(Back of the LED board)
LED board
LED cable

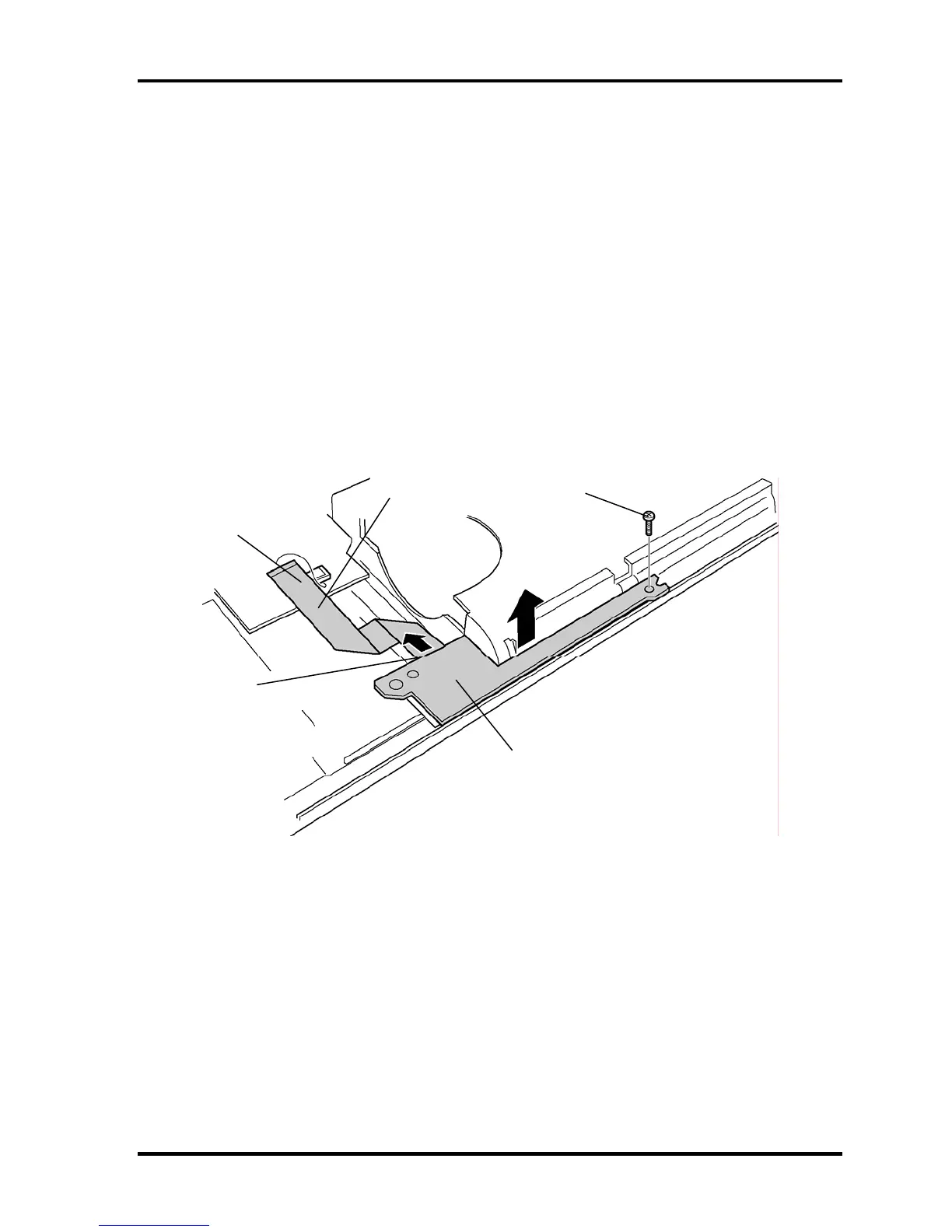

Figure 4-30 Removing the LED board
4-50 [CONFIDENTIAL] QOSMIO G30 Maintenance Manual (960-546)
