4 Replacement Procedures 4.29 PC card slot
4.29 PC card slot
Removing the PC card slot
The following describes the procedure for removing the PC card slot (See Figure 4-42).
1. Remove the following screws securing the PC card slot.
• M2.0×3S S-THIN HEAD screw ×2
• M2.0×8S BIND screw ×2
2. Pull up the PC card slot straight and remove it from the connector CN2110 on the
system board.
CN2110
PC card slot
M2.0x3S
S-THIN HEAD
M2.0x8S BIND

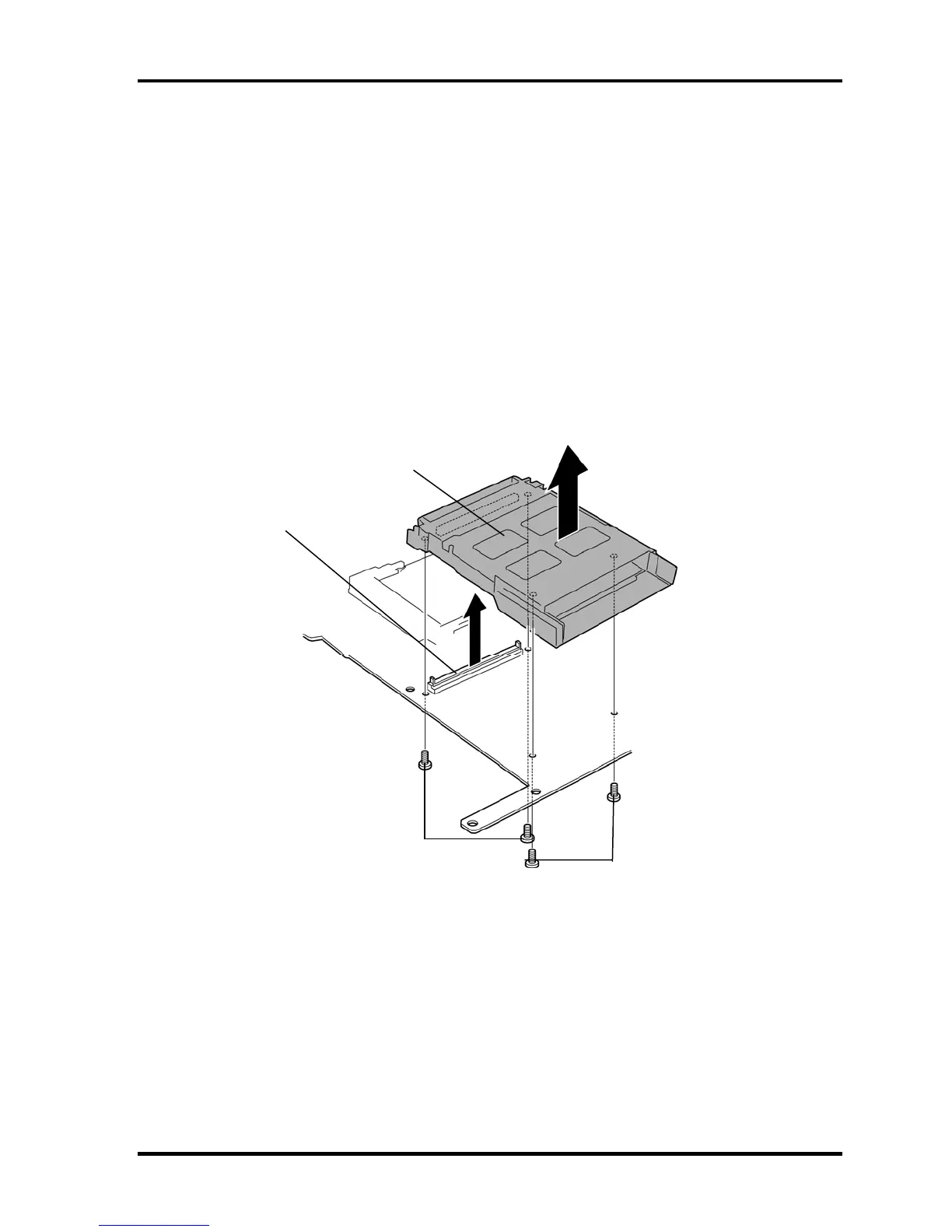

Figure 4-42 Removing the PC card slot
4-66 [CONFIDENTIAL] QOSMIO G30 Maintenance Manual (960-546)
