4.32 Wireless LAN antennas/Bluetooth antenna 4 Replacement Procedures
4.32 Wireless LAN antennas/Bluetooth antenna
Removing the wireless antennas/Bluetooth antenna
The following describes the procedure for removing the wireless antennas/Bluetooth antenna
(See Figure 4-48).
1. Remove the hinge cap (R) from the display assembly.
2. Peel off the acetate tapes fixing the wireless LAN antenna cables and Bluetooth
antenna cable and turn up insulator.
3. Peeling off the wireless LAN antennas and Bluetooth antenna from the display rear
cover and remove the antennas from the display assembly.
Wireless LAN antenna
with black cable
Bluetooth antenna
with brown cable
Wireless LAN antenna
(with white cable)
Acetate tape
Insulator
Hinge cap (R)

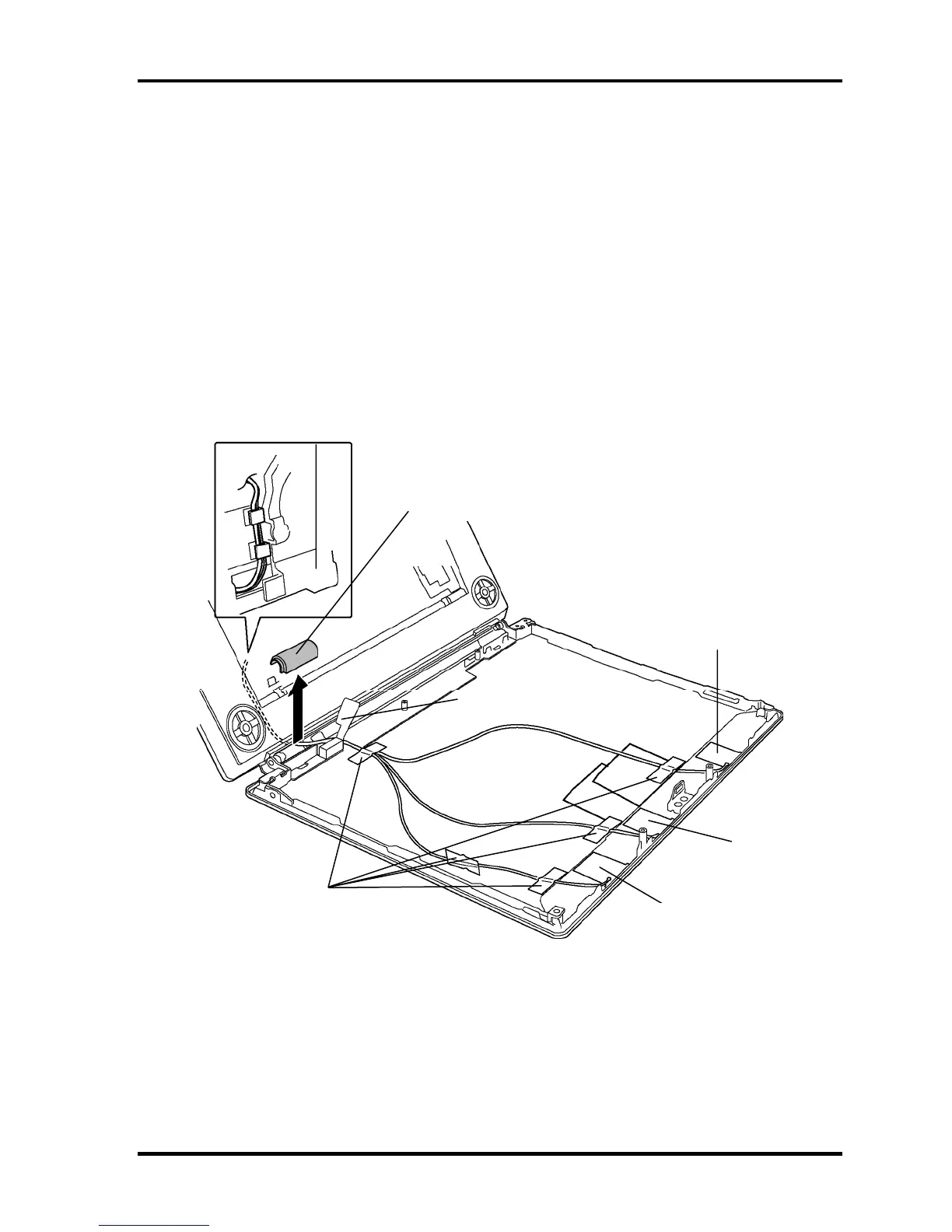

Figure 4-48 Removing the wireless LAN antenna/Bluetooth antenna
QOSMIO G30 Maintenance Manual (960-546) [CONFIDENTIAL] 4-75
