4 Replacement Procedures 4.22 Speaker
4.22 Speaker
Removing the speaker
The following describes the procedure for removing the speaker (See Figure 4-32 and 4-33).
1. Remove the following screw and lift up the speaker AMP board.
• M2.5×6S Tapping screw ×1
2. Disconnect the speaker cable and speaker AMP cable from the connector on the
speaker AMP board.
M2.5x6S Tapping
Speaker AMP board
Speaker AMP cable
Speaker cable

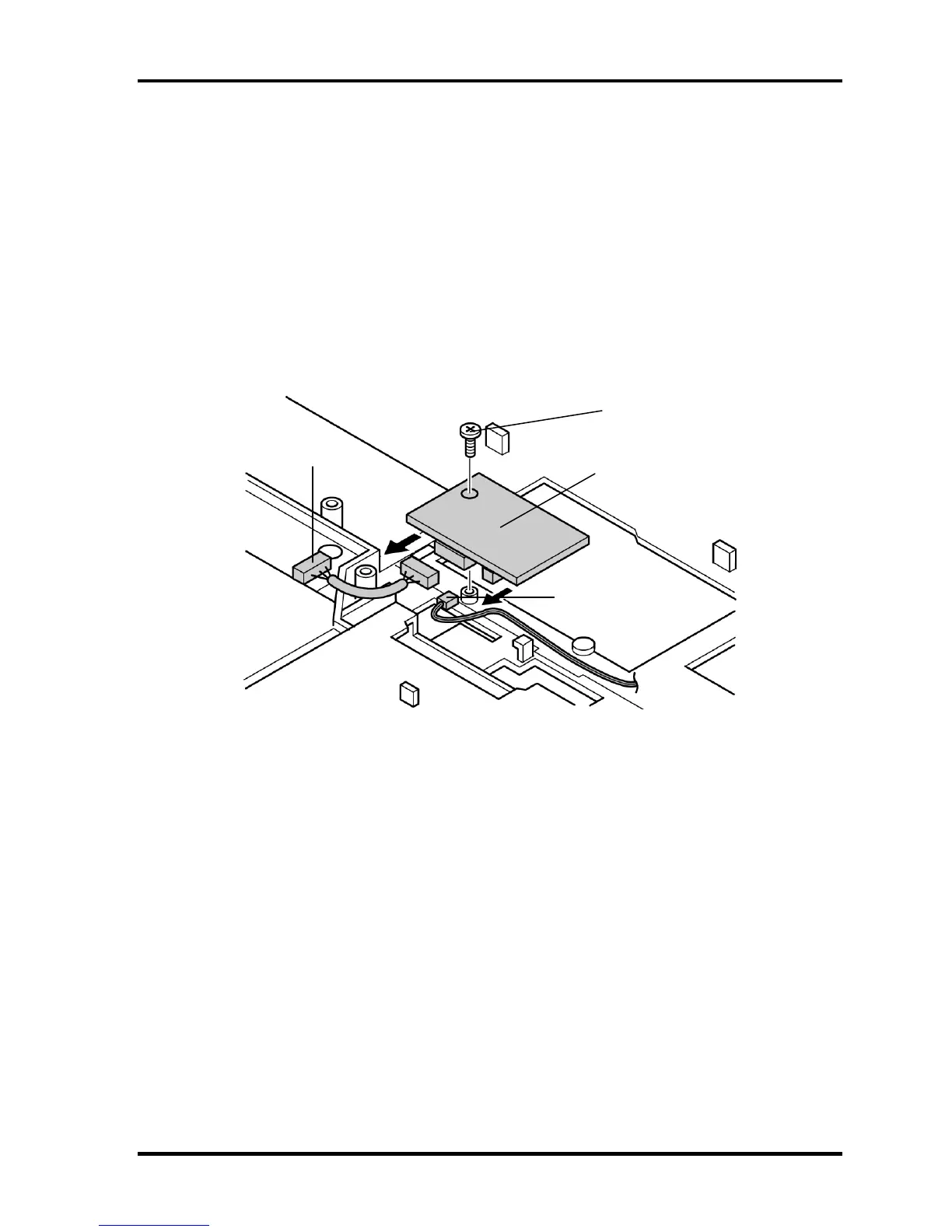

Figure 4-32 Removing the speaker AMP board
4-54 [CONFIDENTIAL] QOSMIO G30 Maintenance Manual (960-546)
