4.22 Speaker 4 Replacement Procedures
3. Peel off three glass tapes and remove the speakers from the slot of the base assembly.
Speaker
Glass tape

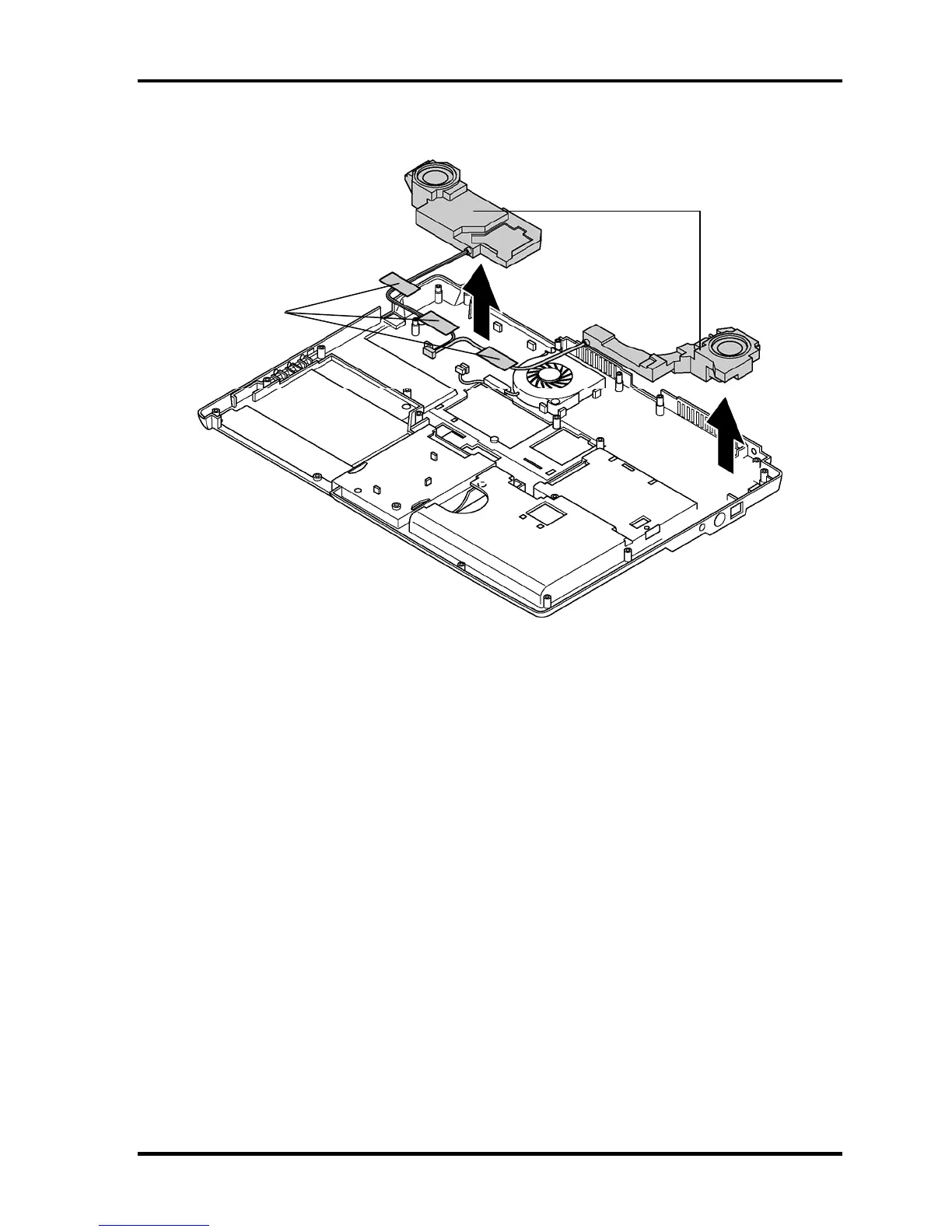

Figure 4-33 Removing the speaker
Installing the speaker
The following describes the procedure for installing the speaker (See Figure 4-32 and 4-33).
1. Install the speaker to the slot of the base assembly and arrange the speaker cable in
place.
2. Stick three glass tapes.
3. Connect the speaker cable and speaker AMP cable to the connector on the speaker
AMP board.
4. Install the speaker AMP board and secure it with the following screw.
• M2.5×6S Tapping screw ×1
QOSMIO G30 Maintenance Manual (960-546) [CONFIDENTIAL] 4-55
