Toshiba Qosmio G30 Maintenance Manual

4 Replacement Procedures 4.30 LCD unit / FL inverter
4
4.30 LCD unit / FL inverter
CAUTION: When replacing a LCD, it is required that SVP parameter is set. Update with
the latest EC/KBC as described in Appendix H “EC/KBC Rewrite
Procedures”.
Removing the LCD unit / FL inverter
The following describes the procedure for removing the LCD unit and FL inverter (See
Figure 4-43 to 4-46).
1. Peel off the mask seals and mask pads and remove the following screws securing
the LCD mask.
• M2.5×8B FLAT BIND screw ×6
2. Insert your finger between the edge of the LCD mask and LCD and remove the LCD
mask while releasing the latches.
LCD mask
M2.5x8B
FLAT BIND
(with mask pad)
M2.5x8B FLAT BIND
(
with mask seal
)
M2.5x8B FLAT BIND
(
with mask seal
)

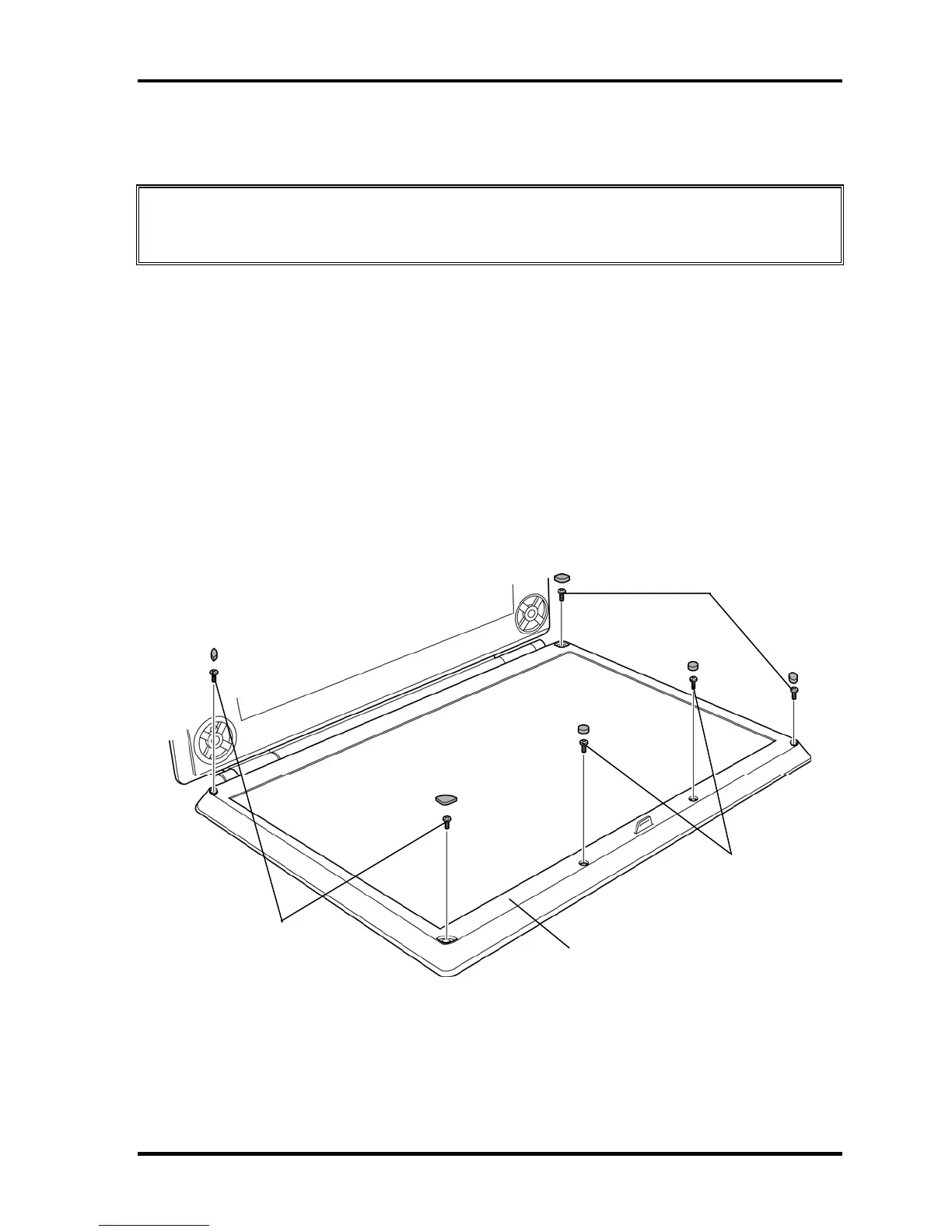

Figure 4-43 Removing the LCD mask
4-68 [CONFIDENTIAL] QOSMIO G30 Maintenance Manual (960-546)
