4.30 LCD unit / FL inverter 4 Replacement Procedures
3. Remove the following screw securing the FL inverter.
• M2.0×4S BIND screw ×1
4. Peel off the insulator adhered to the FL inverter.
5. Disconnect the LCD cables from the connectors CN1 and CN2 on the FL inverter.
6. Disconnect the HV cables from the connectors CN3 and CN4 on the FL inverter.
7. Remove the FL inverter from the display assembly.
M2.0x4S BIND
FL inverter
Insulator
CN2
CN1
LCD cable
HV cable

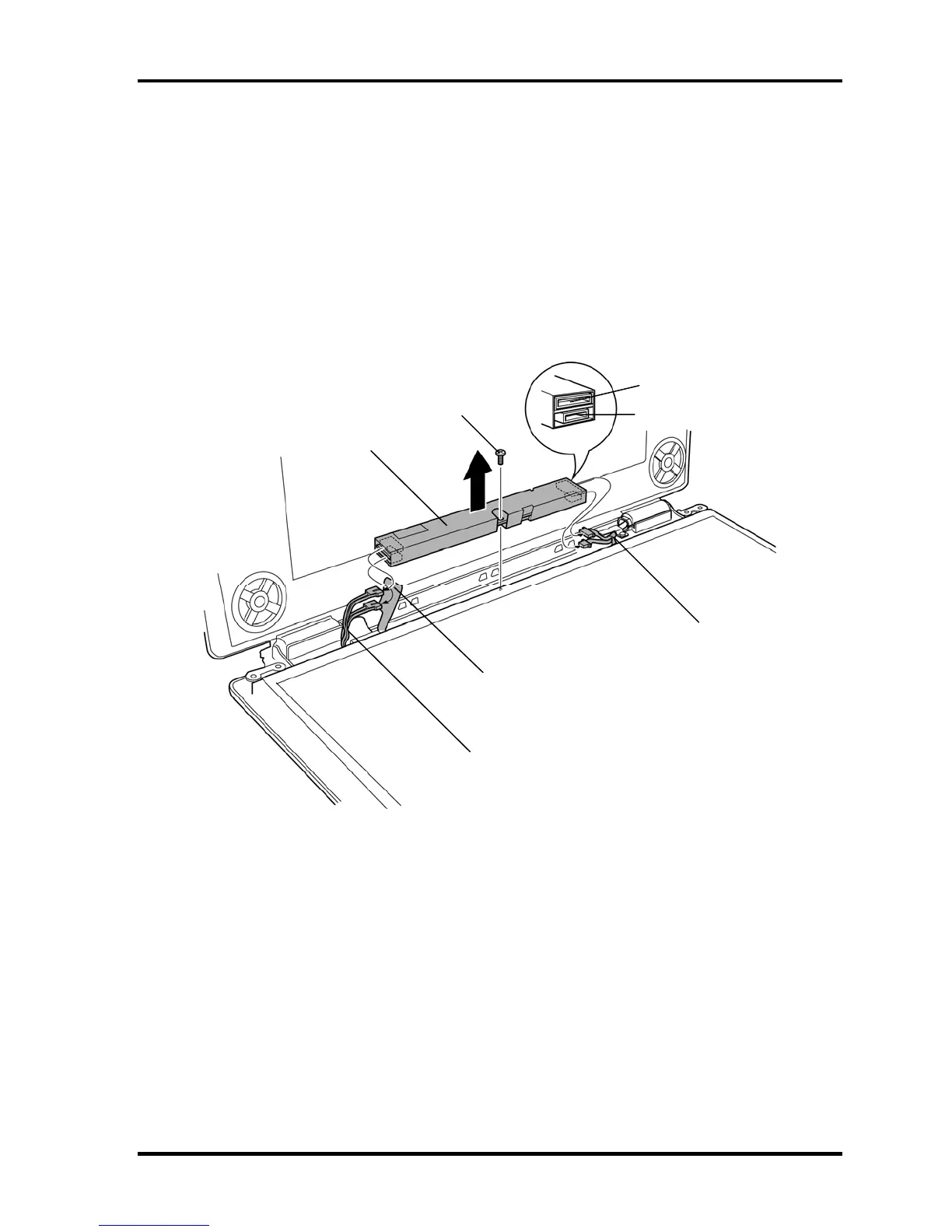

Figure 4-44 Removing the FL inverter
QOSMIO G30 Maintenance Manual (960-546) [CONFIDENTIAL] 4-69
