4 Replacement Procedures 4.30 LCD unit / FL inverter
8. Remove the following screws securing the LCD unit.
• M2.0×4S BIND screw ×4
9. With the bottom edge of the LCD unit on the display cover, lift only the top edge of
the LCD unit. After peeling off two aluminum tapes, disconnect the LCD cable
from the connector on the back of the LCD.
10. Remove the LCD unit.
M2.0x4S BIND
Aluminum tape
LCD cable
LCD unit

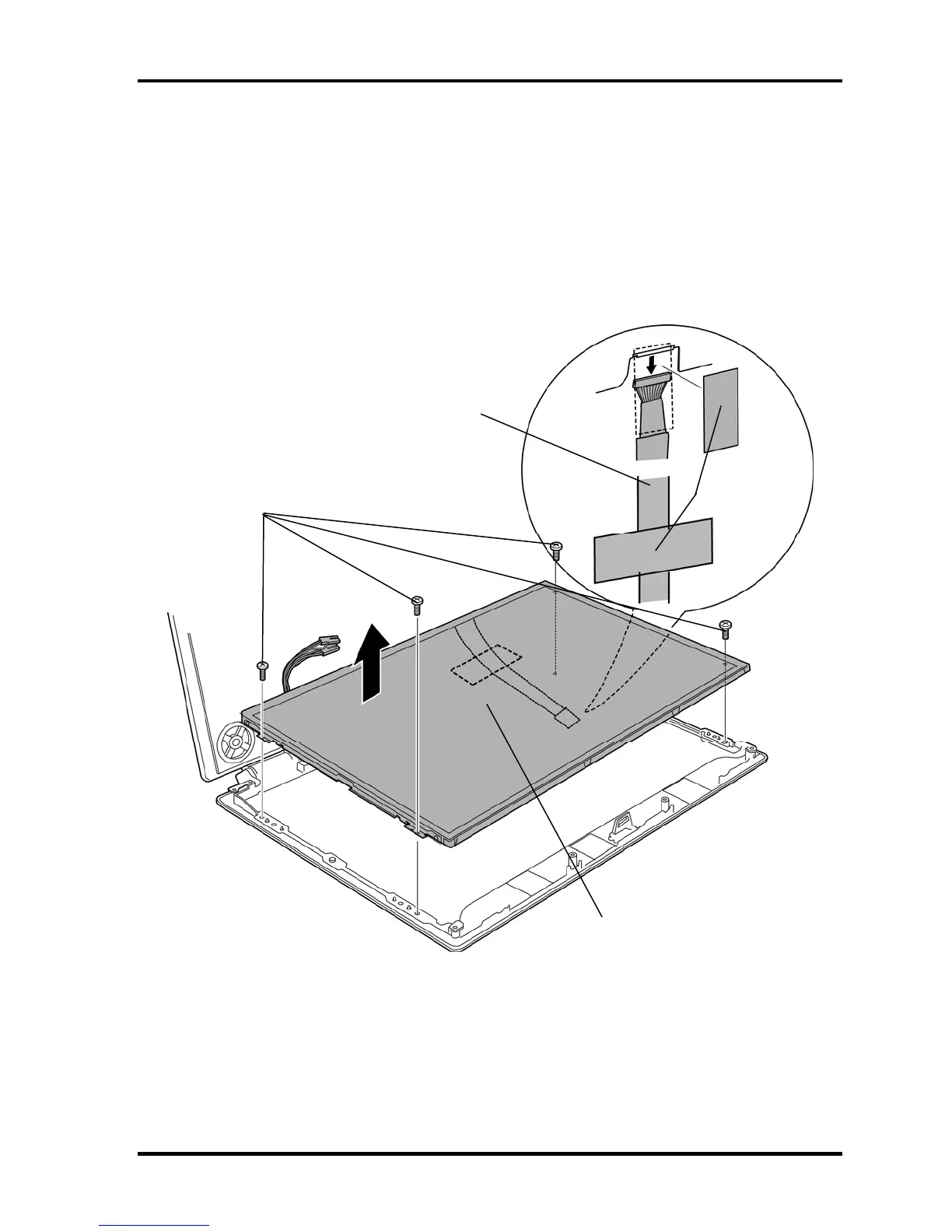

Figure 4-45 Removing the LCD unit
4-70 [CONFIDENTIAL] QOSMIO G30 Maintenance Manual (960-546)
