4 Replacement Procedures 4.34 Display rear cover

4.34 Display rear cover

Removing the display rear cover

The following describes the procedure for removing the display rear cover (See Figure 4-50).

1. Remove the following screws securing the display rear cover.

• M2.5×4B FLAT BIND screw ×6

2. Remove the display rear cover from the cover assembly.

M2.5x4B FLAT BIND

Display rear cover

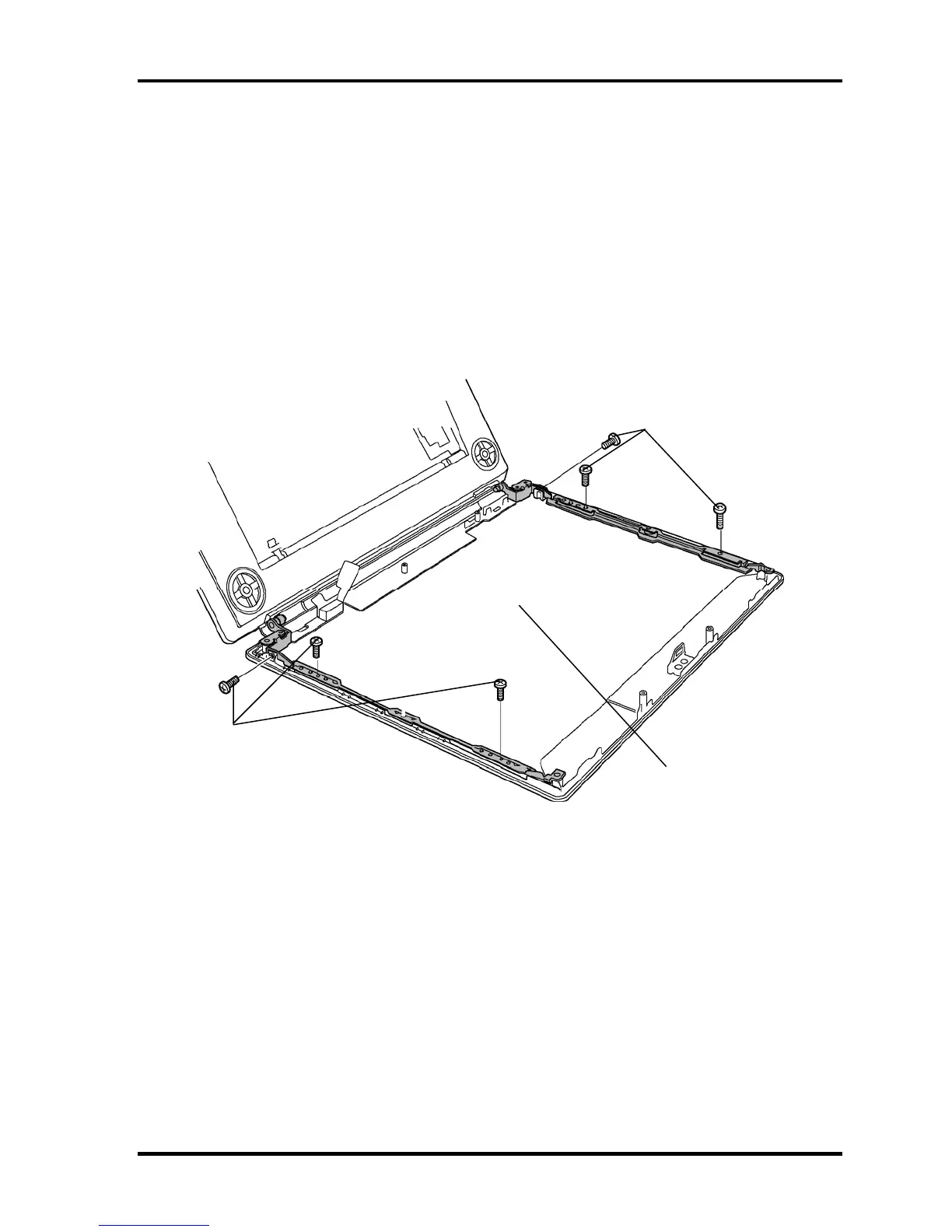

Figure 4-50 Removing the display rear cover

Installing the display rear cover

The following describes the procedure for installing the display rear cover (See Figure 4-50).

1. Install the display rear cover to the cover assembly and secure it with the following

screws.

• M2.5×4B FLAT BIND screw ×6
