4.35 Hinge 4 Replacement Procedures
4.35 Hinge
Removing the hinge
The following describes the procedure for removing the hinge (See Figure 4-51).
1. Remove the following screw securing the hinge (L).
• M2.5×6S Tapping screw ×1
2. Turn up the insulator.
3. Push the latch and remove the hinge (L) by sliding it to the right.
4. Remove the following screw securing the hinge (R).
• M2.5×6S Tapping screw ×1
5. Push the latch and remove the hinge (R) by sliding it to the left.
M2.5x6S Tapping
M2.5x6S Tapping
Hinge (R)
Hinge (L)
Insulator

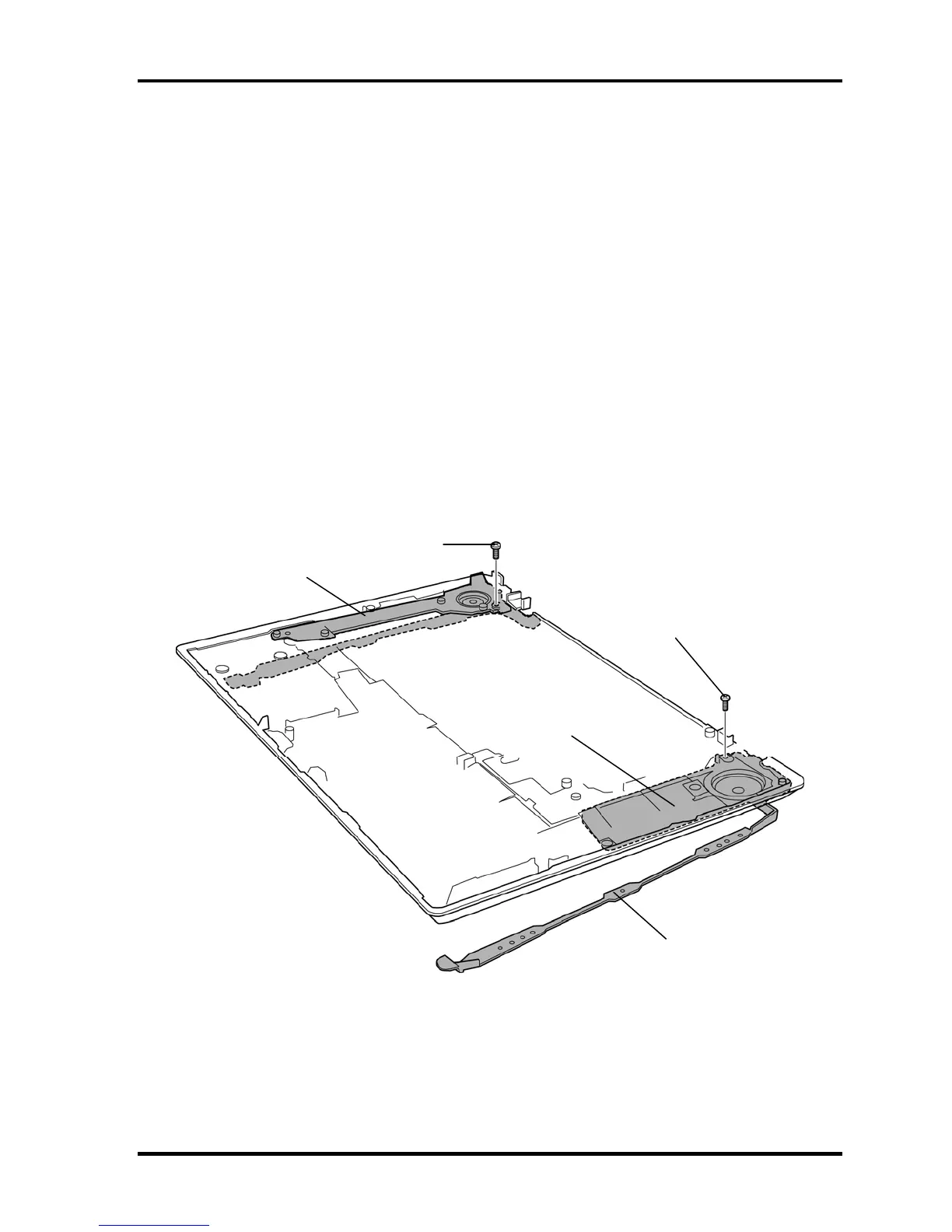

Figure 4-51 Removing the hinge
QOSMIO G30 Maintenance Manual (960-546) [CONFIDENTIAL] 4-79
