4.17 Optical disk drive 4 Replacement Procedures
4.17 Optical disk drive
CAUTION: Do not perform 4.17.2 “Ejecting the optical disk” except for the emergency
ejection of optical disk inside ODD.
4.17.1 Replacing the optical disk drive
Removing the optical disk drive
The following describes the procedure for removing the optical disk drive (See Figure 4-24
to 4-26).
1. Remove the following screws and ODD panel. (Only when the DVD super multi
drive is mounted.)
• M2.5×6B FLAT BIND screw ×2
M2.5x6B FLAT BIND
ODD panel

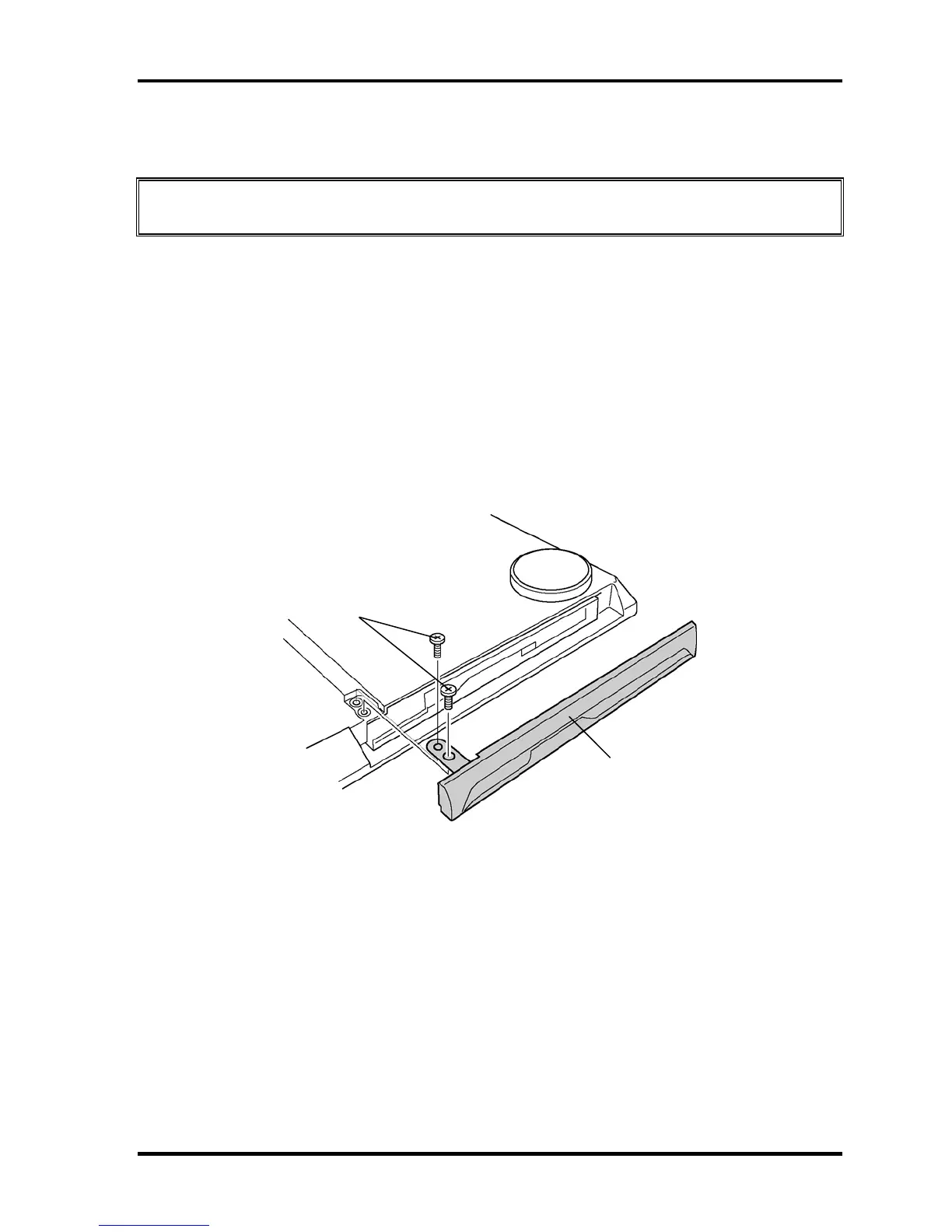

Figure 4-24 Removing the ODD panel
