Toshiba Qosmio G30 Maintenance Manual

4.11 Cover assembly 4 Replacement Procedures
5. Turn the computer face up and remove the LCD connector cover.
6. Disconnect the LCD cable from the connector CN5000 on the system board.
7. Disconnect the FL inverter from the connector CN5816 on the system board.
8. Disconnect the touch pad cable from the connector CN3201 on the system board.
9. Disconnect the volume cable from the connector CN3330 on the system board.
10. Disconnect the fingerprint sensor cable from the connector CN9530 on the system
board.
11. Disconnect the switch board cable from the connector CN9650 on the system board.
12. Disconnect the microphone cable from the connector CN6050 on the system board.
13. Remove the following screw securing the cover assembly.
• M2.5×8B FLAT BIND screw ×1
LCD connector cover
M2.5x8B FLAT BIND
FL inverter cable
(Connected to CN5816)
LCD cable
(
Connected to CN5000
)
Touch pad cable
(
Connected to CN3201
)
Fingerprint sensor cable
(
Connected to CN9530
)
Volume cable
(
Connected to CN3330
)
Switch board cable
(
Connected to CN9650
)
Microphone cable
(
Connected to CN6050
)

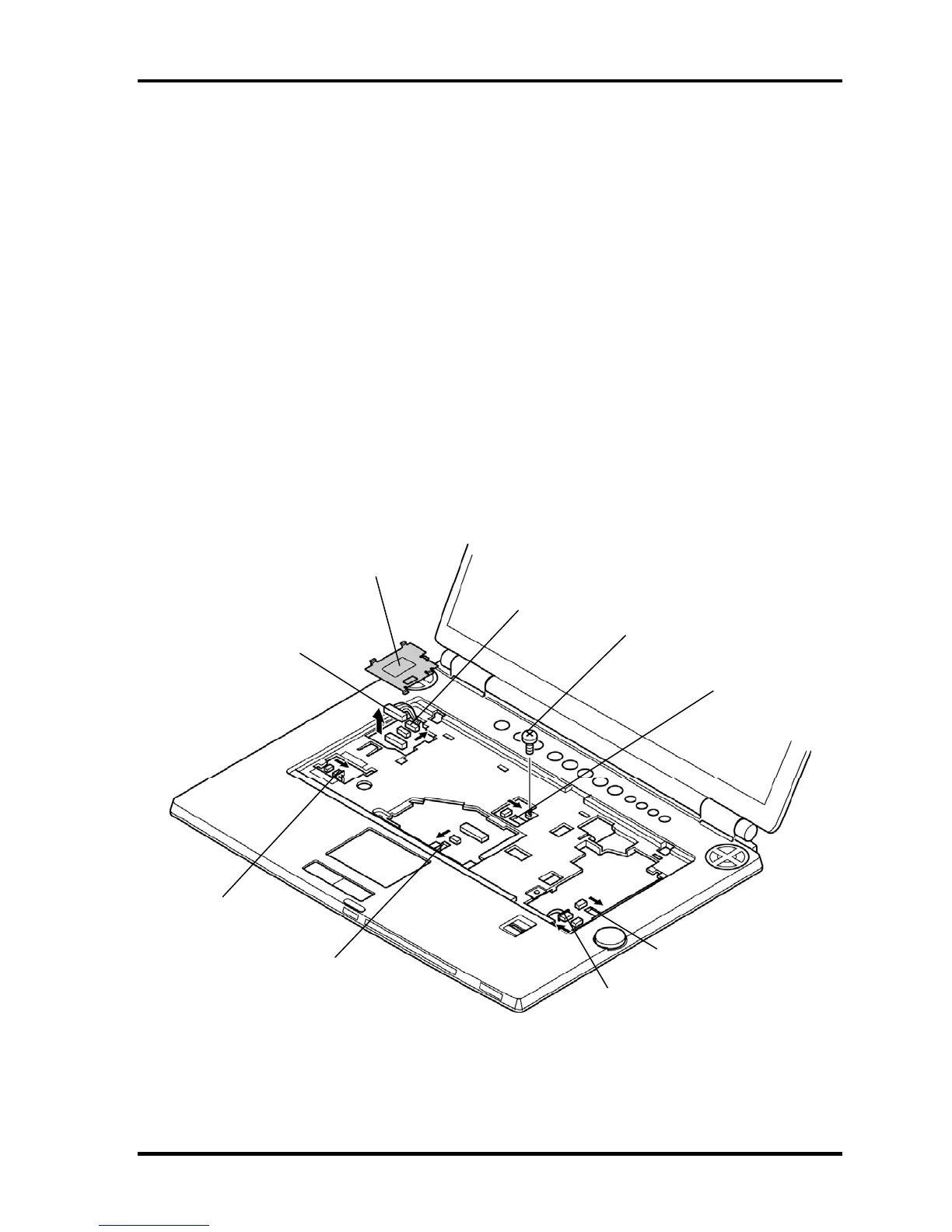

Figure 4-16 Removing the cover assembly (2)
QOSMIO G30 Maintenance Manual (960-546) [CONFIDENTIAL] 4-29
