4 Replacement Procedures 4.36 Fluorescent Lamp
Assembling the 17.1 Inch LG.Philips Fluorescent lamp
To assembling the 17.1-inch LG.Philips fluorescent lamp, follow the steps below and refer to
figures 4-56 to 4-59.
1. Install the FL tube cover, sheets, adhesive tape and board assembly.
1) Peel off the double-sided tape from the FL tube cover (L) at the bottom.
2) Secure the FL tube cover (L) at the bottom with the two screws.
NOTE: Maximum value of torque is 2.0kg
•
cm.
3) Install the light guide and sheets.
NOTE: Be careful not to scratch on the surface of the sheets and light guide.
4) Stick the adhesive tape to fix the sheets.
5) Install the board assembly.
NOTE: Be careful not to apply excessive force to the PCB and TCP.

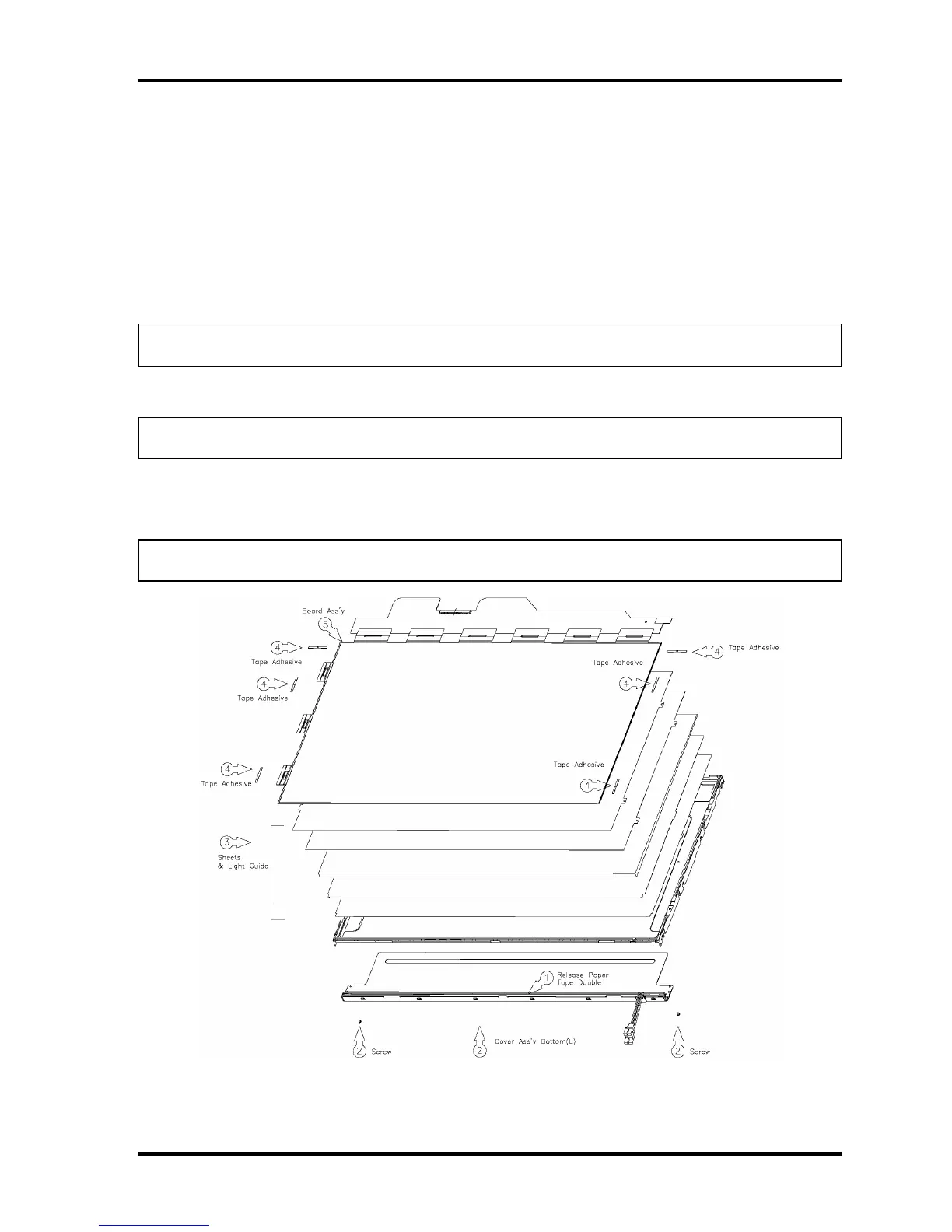

Figure 4-56 Replacing 17.1 Inch LG.Philips fluorescent lamp (5)
4-86 [CONFIDENTIAL] QOSMIO G30 Maintenance Manual (960-546)
