Appendix J Maintenance of TOSHIBA RAI
Delete Array

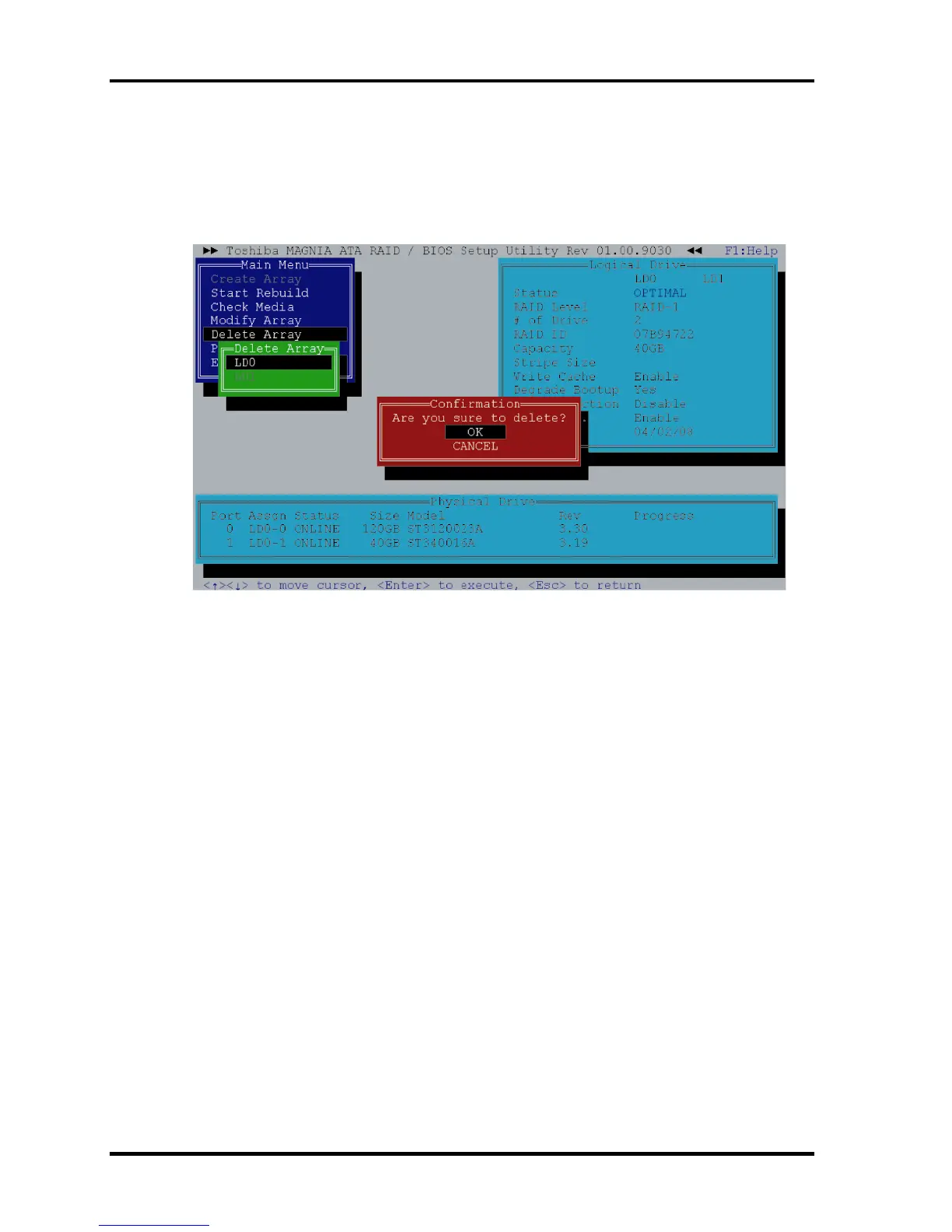

Selects [Delete Array] of Setup Utility and delete array. Put the cursor on the array you
want to delete and press
[Enter]
key.
When [Confirmation] is displayed, select “OK” to store the setting.
J-22 [CONFIDENTIAL]
QOSMIO G30 Maintenance Manual (
960-546)
453
455
