Introduction Connections Basic Setup Playback
Editing
VCR Functions Others
Function Setup
Recording
15
EN

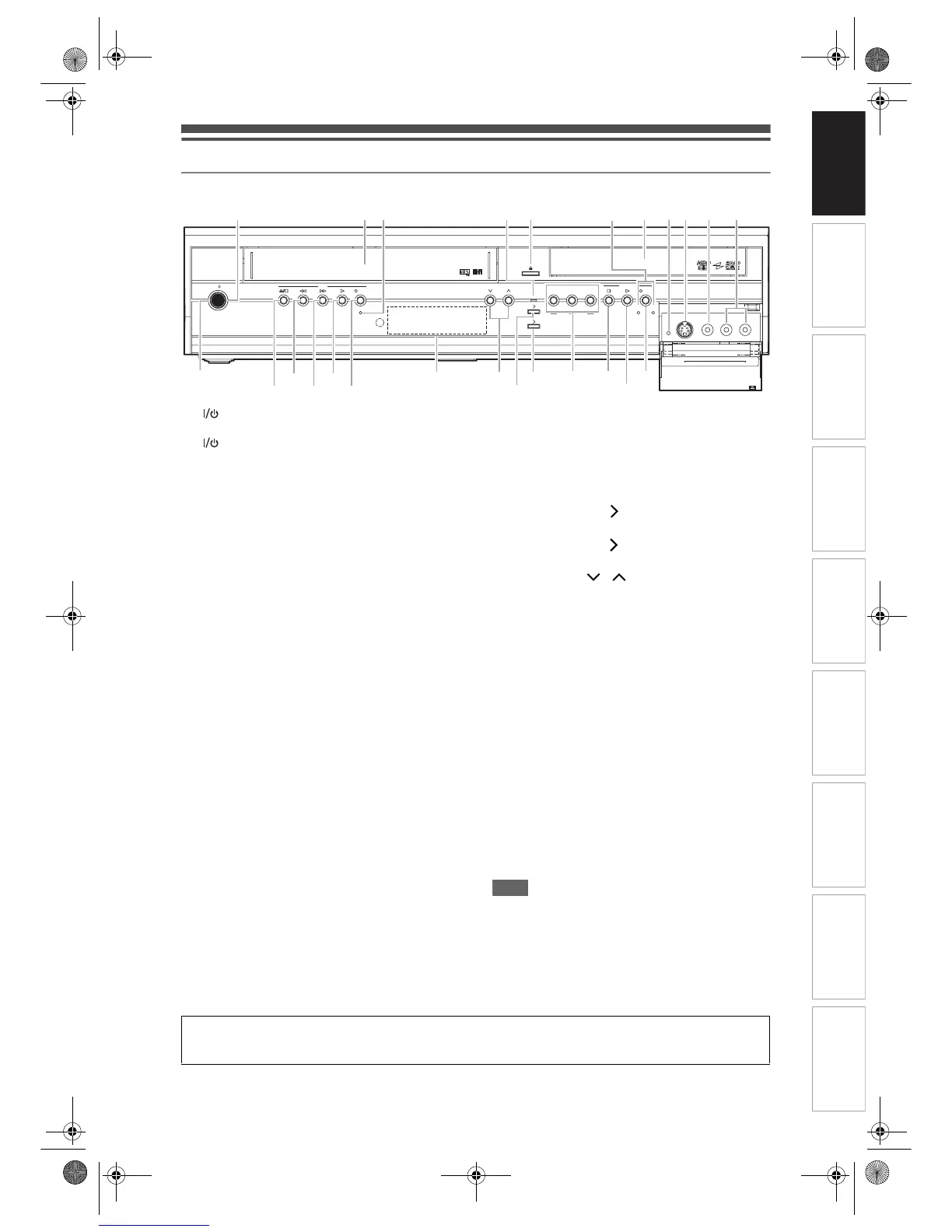

Functional Overview
Front Panel
1 ON / STANDBY button: Press to turn the
unit on / off.
2 ON / STANDBY indicator: Lights up when
the power is on.
3 Cassette compartment: Insert a tape here.
4 REC indicator (VCR): Lights up during VCR
recording.
5 DUBBING indicator
: Lights up during dubbing.
6 OPEN / CLOSE O button* (DVD): Press to
open / close the disc tray.
7 REC indicators (HDD / DVD): Lights up
during HDD / DVD recording.
8 Disc tray: Place a disc here.
9 RESET: Press with a sharp pointed object to
restart the unit. Also refer to the “Note” right
below.
10 S-VIDEO input jack (AV3)
(HDD / DVD / VCR)
: Connect the S-Video
output of an external device here using a
commercially available S-Video cable.
11 VIDEO input jack (AV3)
(HDD / DVD / VCR)
: Connect the video output
of an external device here using a commercially
available Video cable.
12 AUDIO input jacks (AV3)
(HDD / DVD / VCR)
: Connect the audio output
of an external device here using a commercially
available Audio (L / R) cable.
13 I REC button (HDD / DVD): Press once to
start a basic recording. Press repeatedly to start
an OTR (One-touch Timer Recording). Each
press increases the recording time by 30 minutes
up to 8 hours.
14 PLAY P button* (HDD / DVD): Press to start
or resume playback.
15 STOP S button* (HDD / DVD): Press to stop
playback, recording or dubbing.
16 Device Select Buttons / Indicators:
VCR: Press to activate the VCR. Lights up when
VCR is selected.
HDD: Press to activate the HDD. Lights up when
HDD is selected.
DVD: Press to activate the DVD. Lights up when
DVD is selected.
17 DUBBING HDD DVD button: Press to start
One Touch Dubbing from HDD to DVD.
18 DUBBING VCR DVD button: Press to start
One Touch Dubbing from VCR to DVD.
19 PROGRAM / buttons: Press to change
the channel.
20 Front Panel Display: Shows information and
messages. Refer to “Front Panel Display Guide”
on page 21.
21 I REC button (VCR): Press once to start a
basic recording. Press repeatedly to start an OTR
(One-touch Timer Recording). Each press
increases the recording time by 30 minutes up to
8 hours.
22 PLAY P button (VCR): Press to start playback.
23 F.FWD f button (VCR): Press to fast
forward or fast search.
24 REW r button (VCR): Press to rewind or
rewind search.
25 STOP / EJECT O/S button (VCR): Press to
eject the videotape. Press to stop recording or
playback.
(
*
)
You can also turn on the unit by pressing these buttons.
Note
After pressing [RESET],
• The settings for the items listed below will be lost;
- Clock Setting
- Timer Programme
- Resume point
• The settings for the item listed below will not be lost,
but need to be set again;
- Channel Setting
• All other settings will remain as memorized.
VCR
REC
PROGRAM
DUBBING
VCR
VCR
HDD
HDD
DVD
DVD
DVD
HDD
DVD
REC
HDD/DVD
ON / STANDBY
/
I
S-VIDEO
VIDEO L
R
AV3
45
1
23
6* 7
8
9
10
11
13
14*
17
18
16
15*
23 2125
19
20
24 22
12
Button names described in the Owner’s Manual
The instructions in this manual are described mainly with the operations using the remote control. Some
operations can be carried out using the buttons on the front panel.
E439BBD_EN.book Page 15 Wednesday, May 31, 2006 4:01 PM
