22
EN
Connections

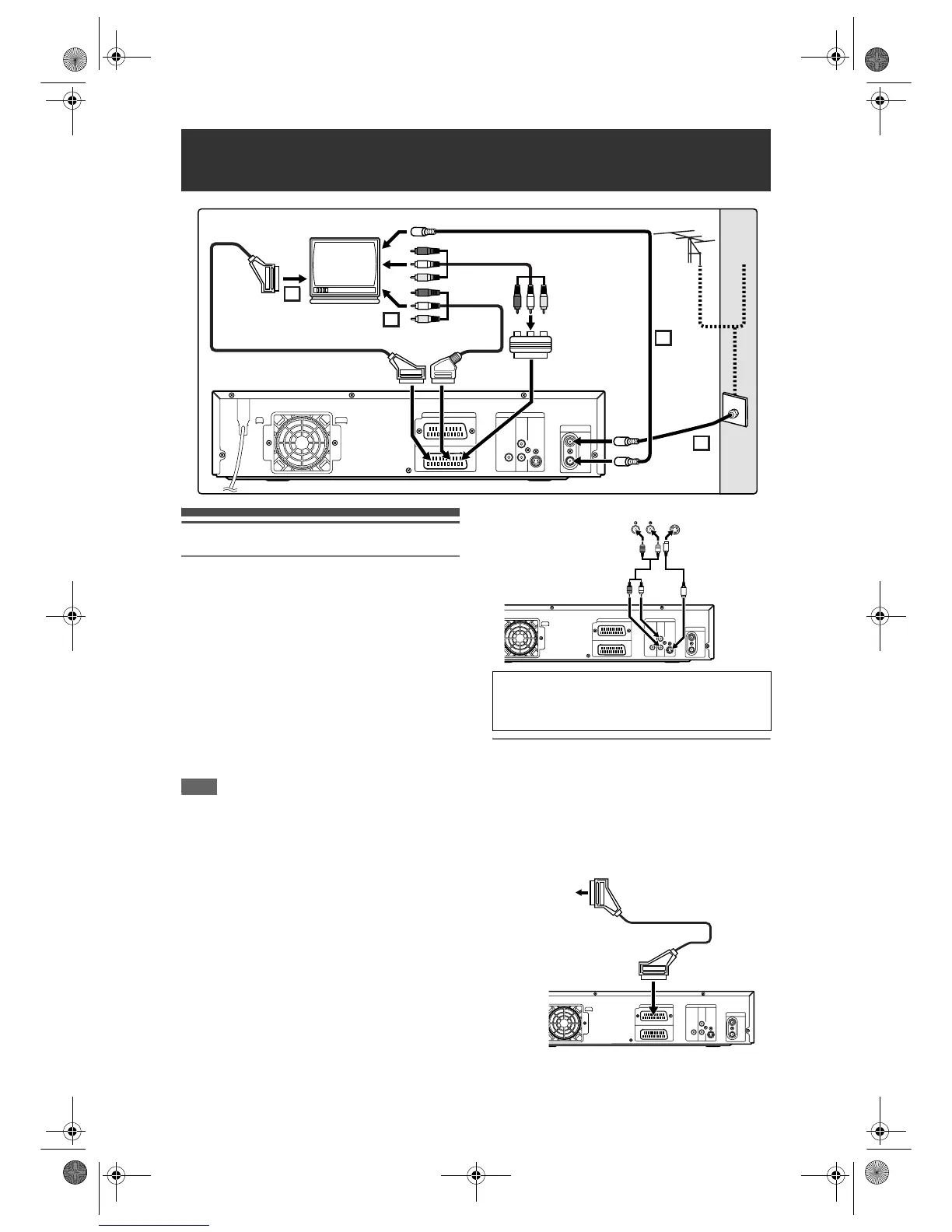

Connecting to a TV
Connect the unit to a TV after considering the
capabilities of your existing equipment.
Before installation, unplug your TV and this unit.
Using the Scart socket
1 Connect the antenna or cable to the
AERIAL jack of this unit.
2 Connect the RF OUT jack of this unit
to the Aerial jack of your TV. Use the
supplied RF cable.
3
Connect AV1(TV) Scart socket of this
unit to the Scart socket of your TV. Use
a commercially available Scart cable.
Note
• If your TV does not have a Scart socket, use a
commercially available Scart adaptor or Scart / RCA
cable to connect. Use only AV1(TV) or AV2(DECODER)
socket for the VCR output signals of this unit.
• Teletext can only be output in VCR mode through
AV1(TV) out.
Using the S-VIDEO OUT jack and the AUDIO
OUT jacks (only for HDD / DVD)
If your TV has an S-Video input jack, use S-Video and
Audio cables to connect.
1 Follow steps 1 and 2 above.
2
Connect S-VIDEO OUT jack of this unit
to the S-Video input jack of your TV. Use
a commercially available S-Video cable.
3 Connect the AUDIO OUT jacks of this
unit to the analogue Audio input
jacks of your TV. Use a commercially
available Audio cable.
Connecting to external equipment
This unit has three input terminals, AV1(TV) or
AV2(DECODER) on the rear panel and AV3 on the
front panel. Be sure that all the units are off before
making any connections.
Recording from a HDD / DVD player, VCR,
Satellite Box or other Audio-Video
equipment with a Scart output socket (AV2)
Connections
RF OUT
HDD
/
DVD
/
VCR
HDD/DVD/VCR
AV2
(DECODER)
AV1
(TV)
AUDIO
OUT
L
R
S-VIDEO
OUT
HDD/DVD
DIGITAL
AUDIO OUT
COAXIAL
AERIAL
2
3
3
1
Cable
Signal
Antenna
RF cable
(not supplied)
RF cable
(supplied)
Scart cable (not supplied)
or
Scart/RCA
cable (not
supplied)
To A e r i a l j a c k
Audio/Video cable (not supplied)
Scart adaptor
(not supplied)
Note for a TV with no S-Video input jack or Scart
socket:
• This unit has no RF modulator, so this type of TV
cannot be used.
RF OUT
HDD / DVD / VCR
HDD/DVD/VCR
AV2 (DECODER)
AV1 (TV)
AUDIO
OUT
L
R
S-VIDEO
OUT
HDD/DVD
DIGITAL
AUDIO OUT
COAXIAL
AERIAL
AUDIO IN S-VIDEO IN
S-Video cable
(not supplied)
Audio cable
(not supplied)
RF OUT
HDD / DVD / VCR
HDD/DVD/VCR
AV2 (DECODER)
AV1 (TV)
AUDIO
OUT
L
R
S-VIDEO
OUT
HDD/DVD
DIGITAL
AUDIO OUT
COAXIAL
AERIAL
AV output
socket (Scart)
Scart cable (not supplied)
AV2 (DECODER)
E439BBD_EN.book Page 22 Wednesday, May 31, 2006 4:01 PM
To Next Page
