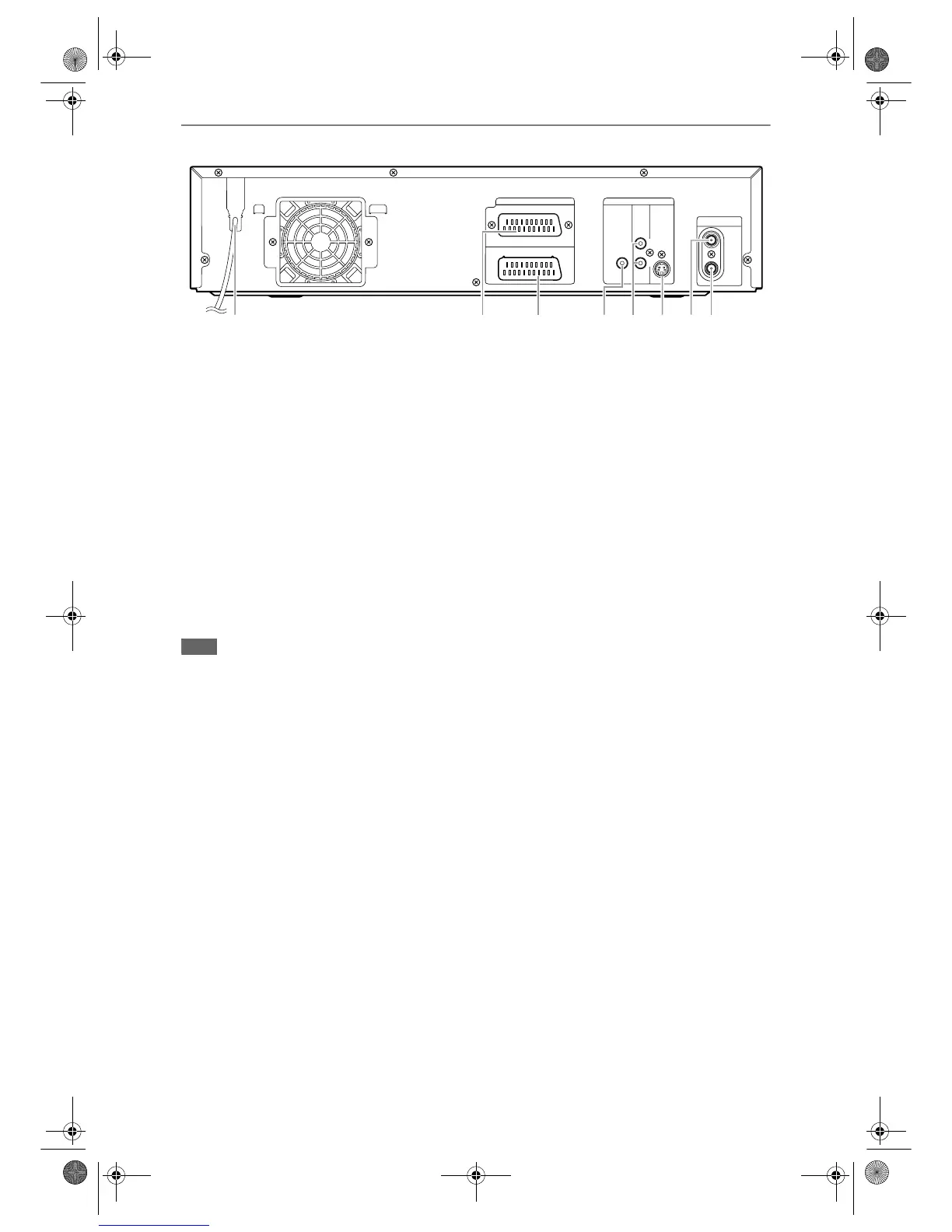

Rear Panel
1 Mains cable
• Connect to a standard AC outlet.
2 AV2(DECODER) (HDD / DVD / VCR)
• Connect to VCR, camcorder, or other
Audio-Video equipment. Use a commercially
available Scart cable.
3 AV1(TV) (HDD / DVD / VCR)
• Connect to the Scart socket on your TV. Use a
commercially available Scart cable.
4 DIGITAL AUDIO OUT (COAXIAL) jack
(HDD / DVD)
• Connect to an amplifier with a digital input jack
such as a Dolby Digital decoder or DTS
decoder. Use a commercially available Coaxial
cable.
5 AUDIO OUT jacks (HDD / DVD)
• Connect to the audio input jacks on your TV.
Use a commercially available Audio cable.
6 S-VIDEO OUT jack (HDD / DVD)
• Connect to the S-Video input jack on your TV.
Use a commercially available S-Video cable.
7 AERIAL (HDD / DVD / VCR)
• Connect to an antenna or cable.
8 RF OUT (HDD / DVD / VCR)
• Connect to the Aerial jack on your TV, cable box
or direct broadcast system.
Use the supplied RF cable.
Note
• Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage
to the unit.
• This unit does not have an RF modulator.
RF OUT
HDD
/
DVD
/
VCR
HDD/DVD/VCR
AV2
(DECODER)
AV1
(TV)
AUDIO
OUT
L
R
S-VIDEO
OUT
HDD/DVD
DIGITAL
AUDIO OUT
COAXIAL
AERIAL
72134 5 86
