Note
• When you record a TV programme from a Satellite
Box, you must connect a Scart cable to
AV2(DECODER). (See page 38.)
• If the external equipment connected to the
AV2(DECODER) socket supplies control voltage to
this unit via Pin 8 of the Scart cable, the display
functions (e.g.P01) of the remote control cannot be
seen on the TV. In this case, turn off the external
equipment to prevent control voltage.

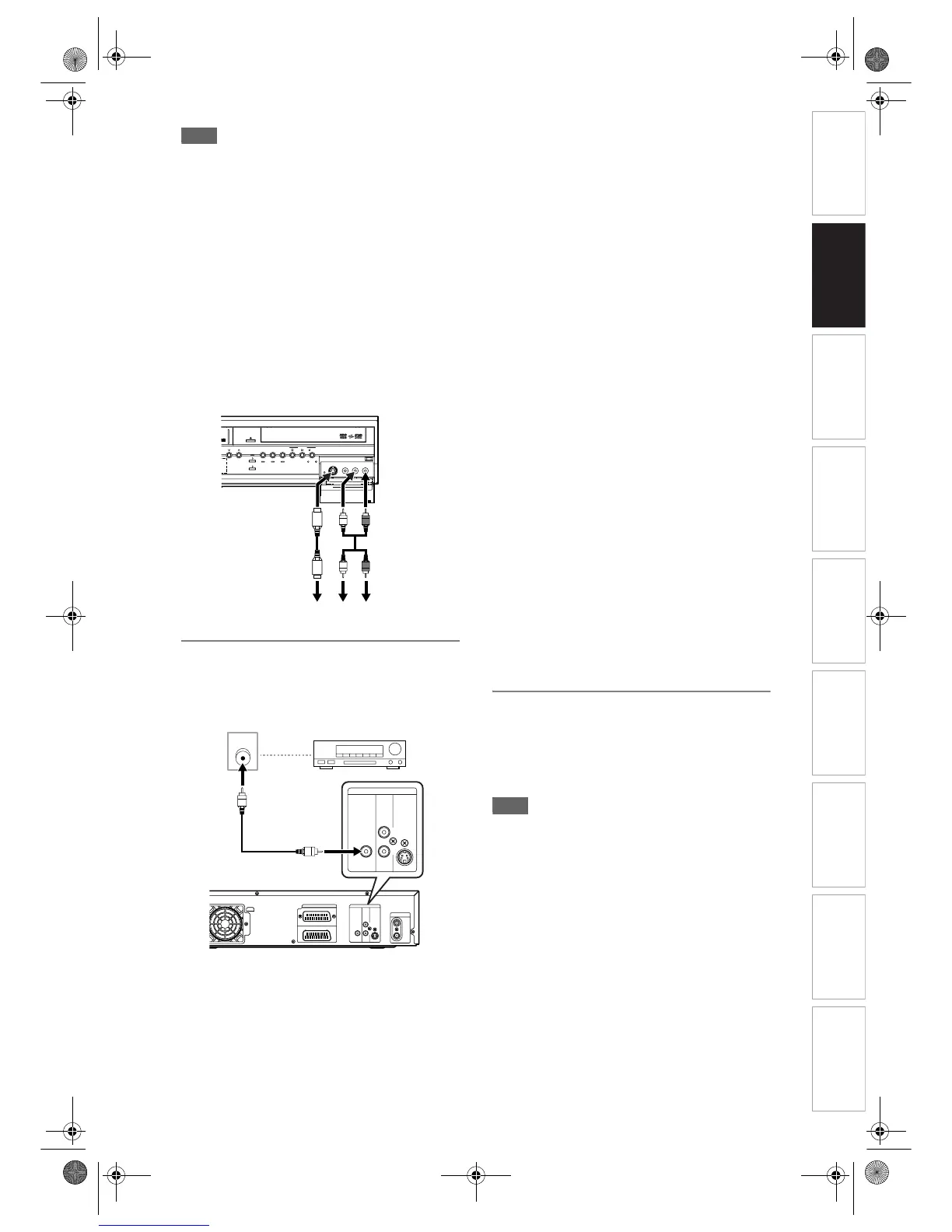

Recording from a camcorder or other
Audio-Video equipment with no Scart output
socket (AV3)
If no S-Video input jack is available, connect to
VIDEO input jack on the front panel using an RCA
Video cable.
Set “S-Video In” when using S-VIDEO input jack.
(See page 48.)
Digital audio for better sound quality
(only for HDD / DVD)
The connections illustrated above are
optional for better sound.
1 For clear digital sound quality, use
the DIGITAL AUDIO OUT (COAXIAL)
jack to connect your digital audio
equipment.
If the audio format of the digital output does not
match the capabilities of your receiver, the
receiver will produce a strong, distorted sound or
no sound at all.
Connecting a Dolby Digital™ decoder, DTS
decoder or MPEG decoder
• Connecting Multi-channel Dolby Digital decoder
allows you to enjoy the Multi-channel Dolby Digital
surround system as well as DTS decoder, Multi-
channel surround system.
• After connecting to a Dolby Digital decoder, set
“Dolby Digital” to “Stream” in “Audio Out”. (See page
85.)
• After connecting to a DTS decoder, set “DTS” to
“On” in “Audio Out”. (See page 85.)
• After connecting to a MPEG decoder, set “MPEG” to
“Stream” in “Audio Out”. (See page 85.)
Connecting to an MD deck or DAT deck
• The audio source recorded in Dolby Digital Multi-
channel surround format cannot be recorded using
an MD or DAT deck as a digital sound.
• If not connected to a Dolby Digital decoder, set
“Dolby Digital” to “PCM” in “Audio Out” (see page
85). Playing back a DVD using incorrect settings
may generate noise distortion, and damage
speakers.
• Set “Dolby Digital” and “MPEG” to “PCM” and set
“DTS” to “Off” in “Audio Out” (see page 85) for
connecting to an MD or DAT deck.
• You can use AUDIO OUT jacks for the connection of
your audio system.
After you have completed
connections
Switch the input selector on your TV to an appropriate
external input channel. For details, refer to the
Owner’s Manual of your TV.
Note
• Connect this unit directly to the TV. If the AV cables
are connected to a VCR, pictures may be distorted
due to the effects of the copy protection system.
