4.15 Fingerprint sensor board 4 Replacement Procedures
3. Remove the fingerprint sensor board fixed with the double-sided tape and peel off
the double-sided tape that prevents a waterdrop from entering the computer.
4. Disconnect the fingerprint sensor cable from the connector on the fingerprint
sensor board.
Fingerprint sensor board
Fingerprint sensor cable
Double-sided tape
Connector
Guide

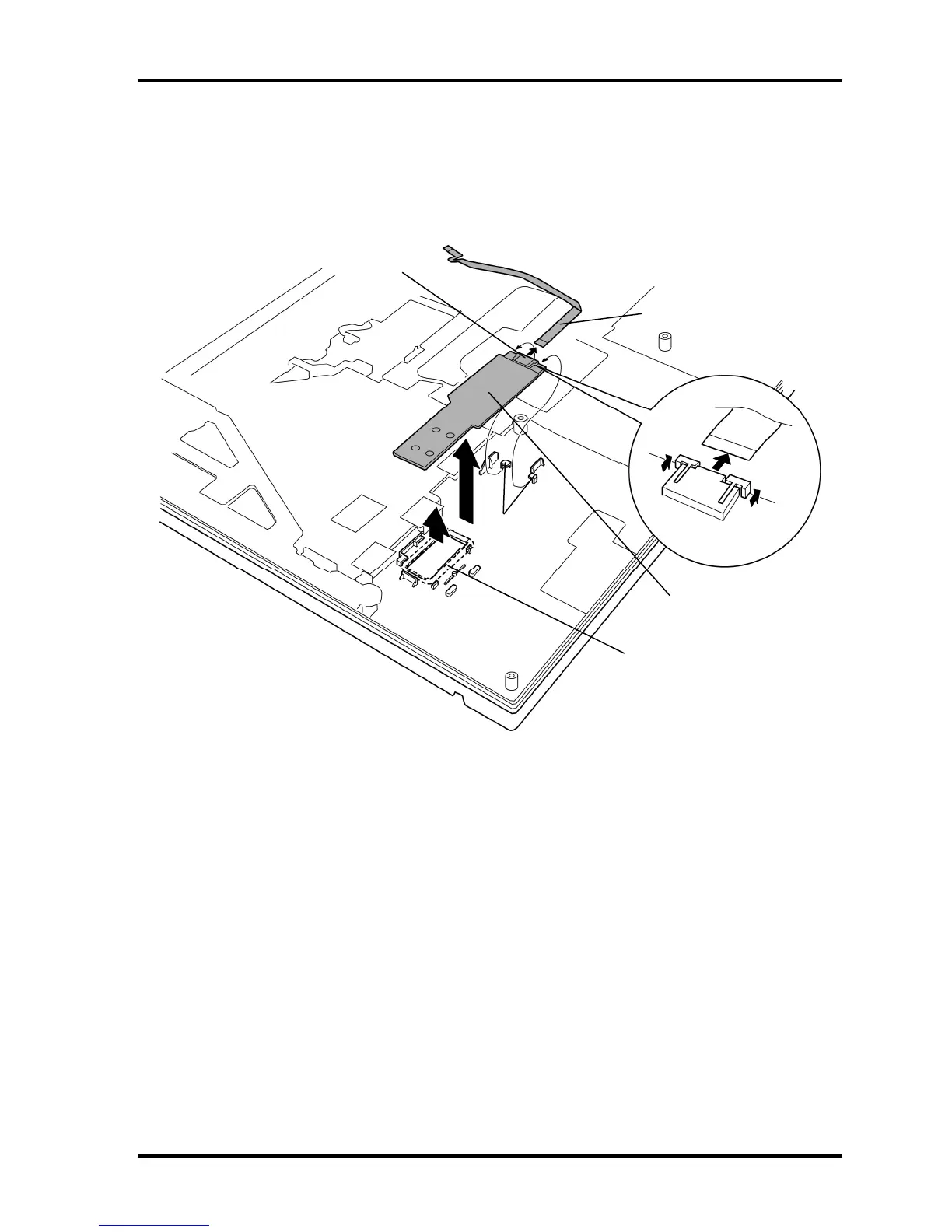

Figure 4-26 Removing the fingerprint sensor board
TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633) [CONFIDENTIAL] 4-43
