4.26 Wireless LAN antenna/Bluetooth antenna 4 Replacement Procedures
CAUTION: (Lower right)

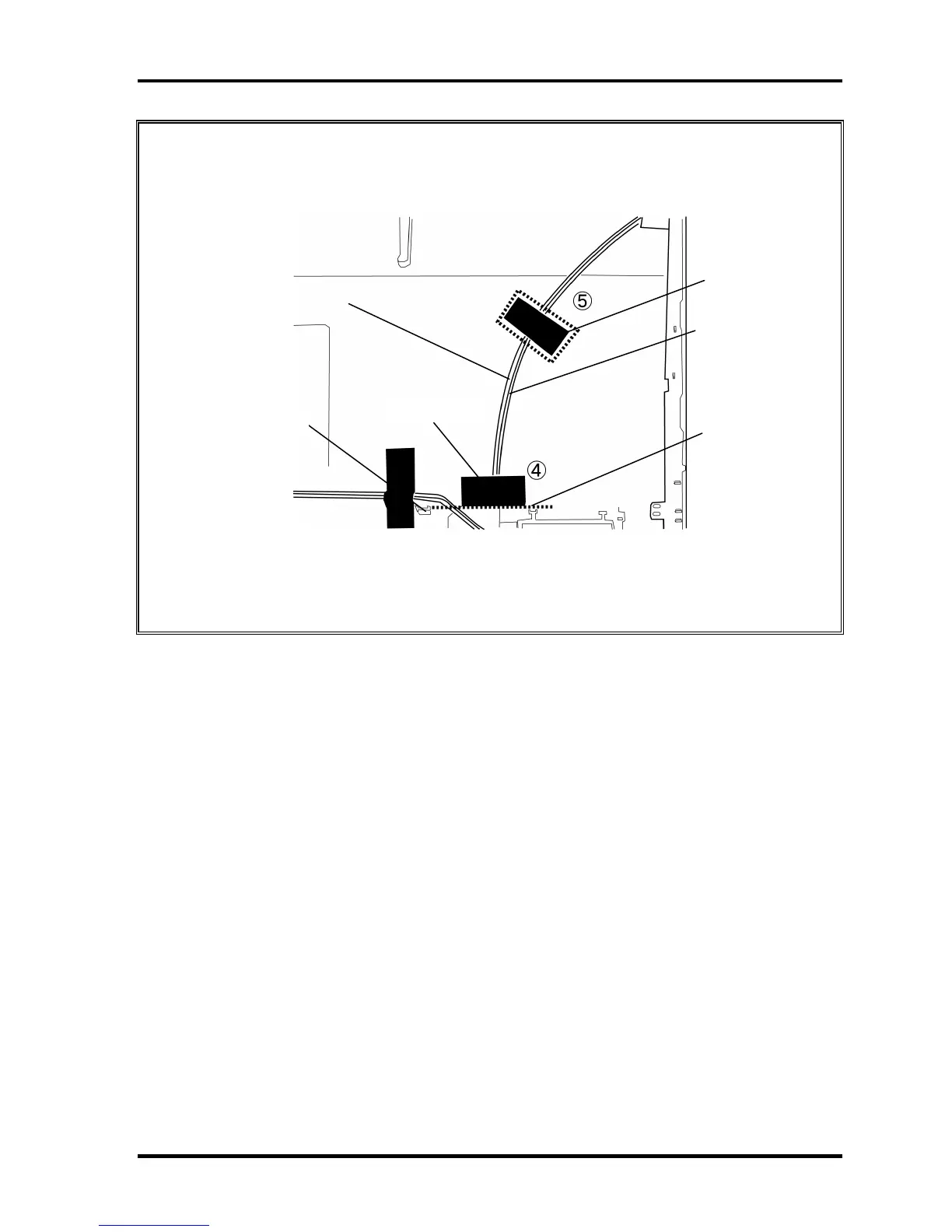

Arrange the wireless LAN antenna cable (black) and Bluetooth antenna
cable (brown), and stick two acetate tapes in place.
Wireless LAN antenna cable (black)
Bluetooth antenna
cable (brown)
cetate tape
cetate tape
Ruled line
Stand
TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633) [CONFIDENTIAL] 4-79
* When arranging the cables, be careful not to put the cables on top of each other.
1. Stick the acetate tape (4), aligning it with the stand.
2. Stick the acetate tape (5) in place.
