4 Replacement Procedures 4.26 Wireless LAN antenna/Bluetooth antenna
CAUTION: (Center right)

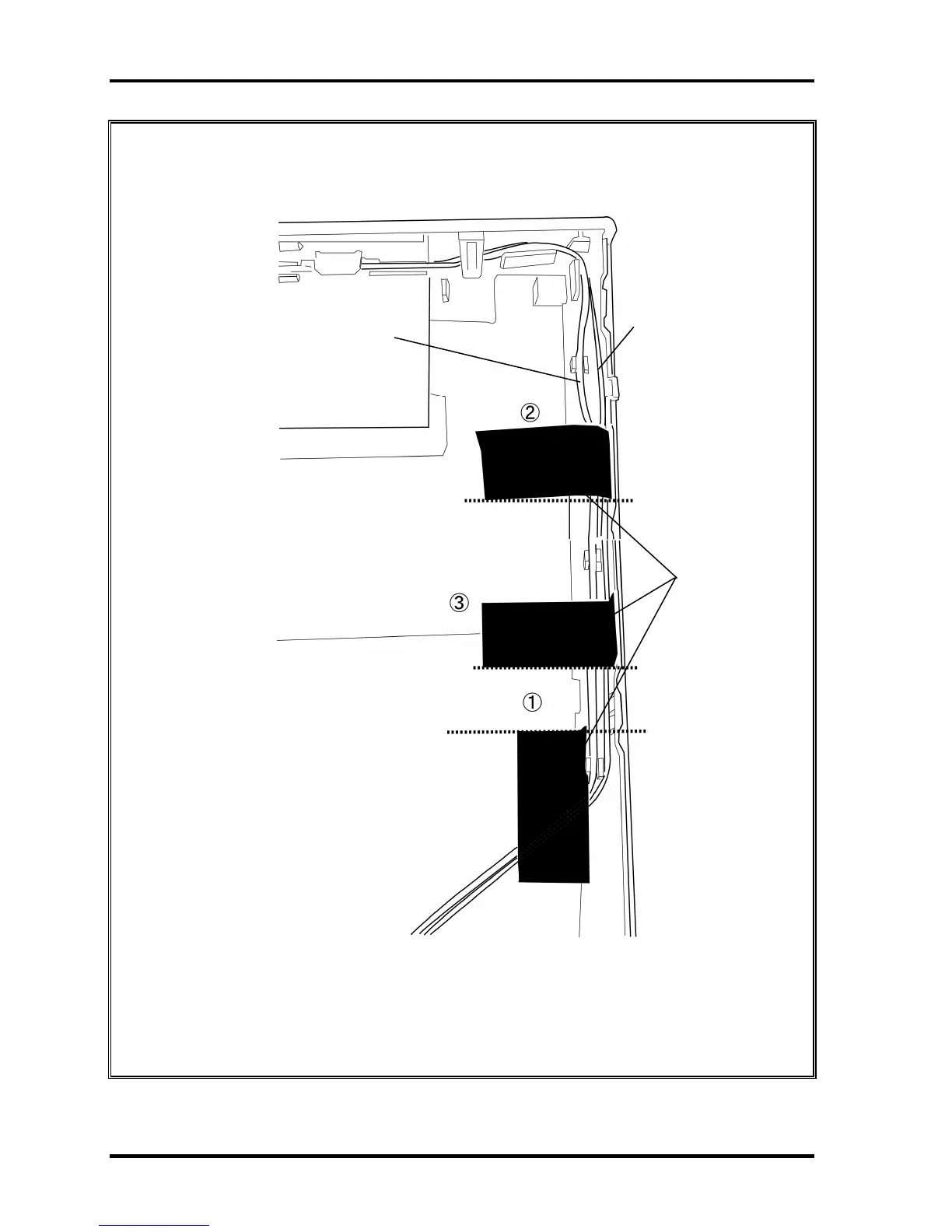

Arrange the wireless LAN antenna cable (black) and Bluetooth antenna
cable (brown), and stick three acetate tapes in place.
Wireless LAN antenna cable (black)
Bluetooth antenna
cable (brown)
cetate tape
1. Arrange the Bluetooth antenna cable (brown).
2. Arrange the wireless LAN antenna cable (black).
3. Secure the Bluetooth antenna cable (brown) and Wireless LAN antenna cable (black)
with the three acetate tapes.
* When arranging the cables, be careful not to put the cables on top of each other.
4-78 [CONFIDENTIAL] TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633)
