Toshiba TOSVERT VF-nC3E - Connecting an External Braking Resistor; Separate-Optional Resistor (with Thermal Fuse); Connecting Thermal Relays and an External Braking Resistor

E6582233
F-30
6
1) Connecting an external braking resistor (optional)
Separate-optional resistor (with thermal fuse)
Note 1: A TC (Trip coil) is connected, as shown in this figure, when an MCCB with a trip coil is used instead
of an MC. A step-down transformer is needed for every 400V-class inverter.
Note 2: As a last resort to prevent fire, be sure to connect a thermal relay (THR). Although the inverter has a
means of preventing overload and overcurrent to protect the braking resistor, the thermal relay is
activated in case the protection function fails to work. Select and connect a thermal relay (THR)
appropriate to the capacity (wattage) of the braking resistor.

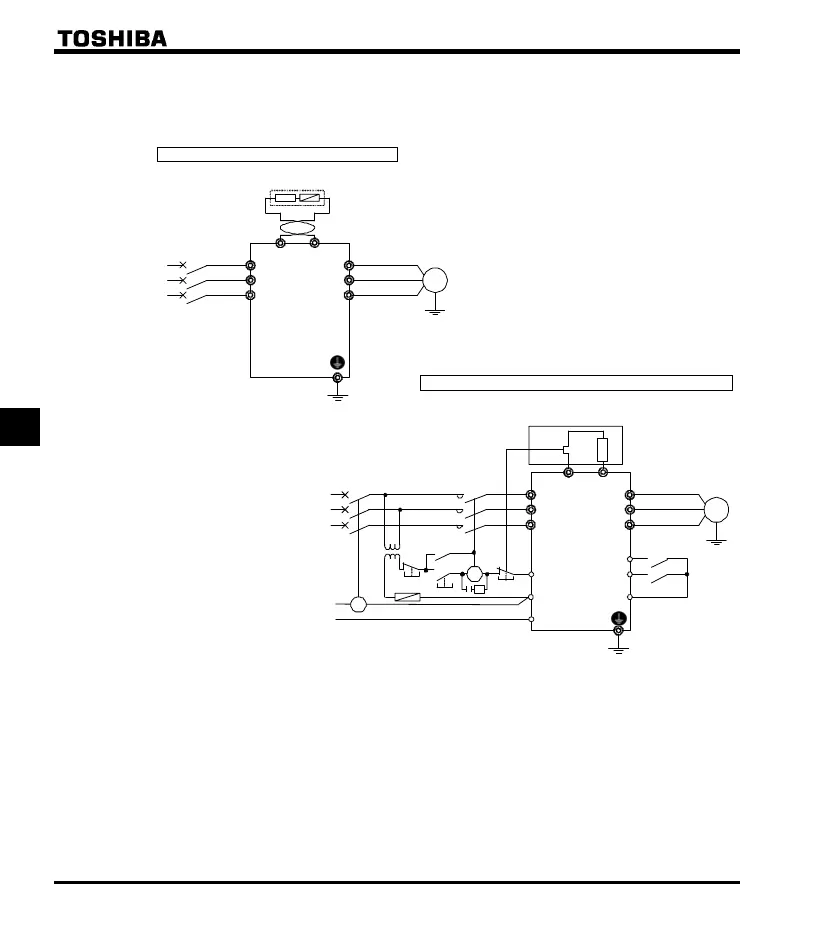

Connecting thermal relays and an external braking resistor
IM
Motor
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
Three-phase m ain circuits
Power supply
P
A/+
PB
MCCB
Braking resistor (optional)
PBR
Inverter
Fuse
TC
FLB
F
FLC
FLA
R
CC
MC
Power supply
TH-R
S
urge
suppressor
Forward
Reverse
IM
Motor
R/L1
S/L 2
T/L3
U/T1
V/T2
W/T3
Th ree-phase main circuits
Power supply
P
A/+
PB
MCCB
Bra king resistor (optional)
PBR
Inverter
St ep
-
down
transformer
2:1
MC
