Toshiba TOSVERT VF-nC3E - Setting of Frequency Using External Signals to Terminal Block; Frequency Setting; Setting the Frequency Using External Potentiometer; Setting the Frequency Using Voltage Input (0-10 V)

E6582233
C-6
3

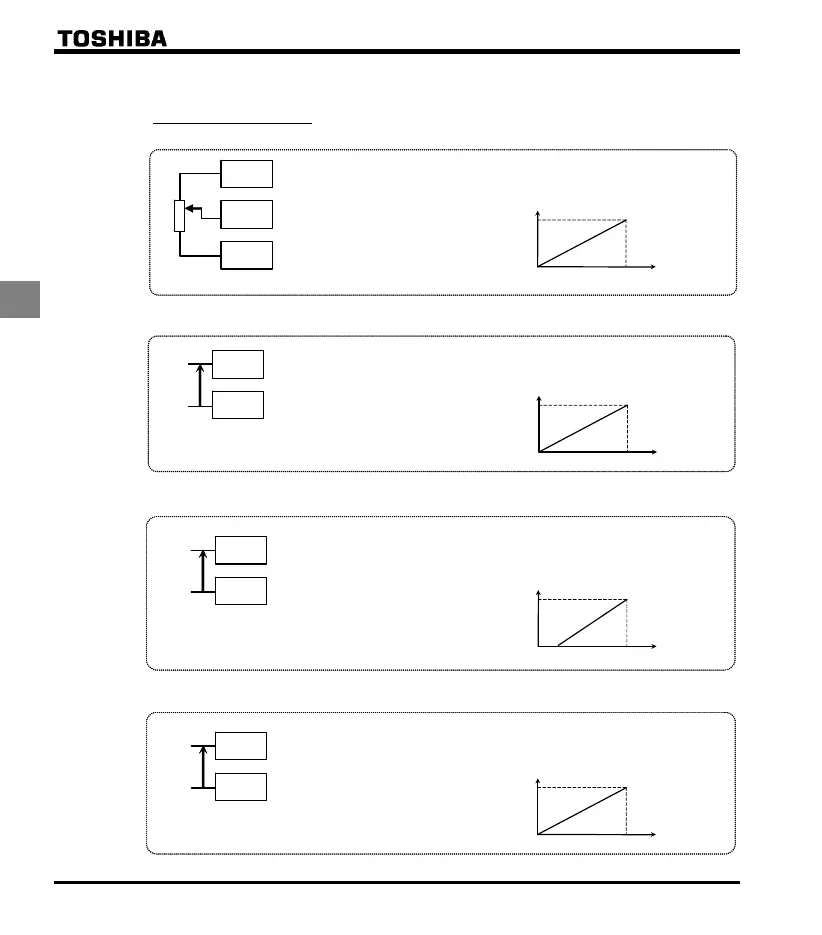

(2) Setting of frequency using external signals to terminal block (=)
 Frequency setting
1) Setting the frequency using external potentiometer
: Setting frequency
using potentiometer
★Potentiometer
Setting frequency using the potentiometer (1-10k, 1/4W)
Refer to section 6.6.2 for detailed adjustment.
Frequency
50 or 60Hz
0
MIN MAX
P5
CC
V
I
Note) Set parameter =.
2) Setting the frequency using voltage input (0-10V)
★Voltage signal
Setting frequency using voltage signals (0-10V).
Refer to section 6.6.2 for detailed adjustment.
Frequency
50 or 60Hz
0
0Vdc 10Vdc
Note) Set parameter =.
CC
V I +
-
: Voltage signal 0-10Vdc
3) Setting the frequency using current input (4-20mA)
★Current Signal
Current signal Setting frequency using current signals (4-20mA).
Refer to section 6.6.2 for detailed adjustment.
Frequency
50 or 60Hz
0
4mAdc 20mAdc
* Setting of parameters also allow 0-20mAdc.
Note) Set parameter = and =.
CC
V I +
-
: Current signal 4-20mAdc
4) Setting the frequency using voltage input (0-5V)
Note) Set parameter =.
CC
V I +
-
: Voltage signal 0-5Vdc
Frequency
50 or 60Hz
0
0Vdc 5Vdc
★Voltage signal
Set the frequency using voltage signals (0-5V).
Refer to section 6.6.2 for detailed adjustment.
