Toshiba TOSVERT VF-nC3E User Manual

E6582233
D-5
4


 
  ⇔

y
Standard monitor mode
(1)
(3)
(2)
(4)
* Parameter title and the setting
value are displayed alternately
Registered parameters
(Max. 24 parameters)
*
MODE
MODE
Basic parameter setting

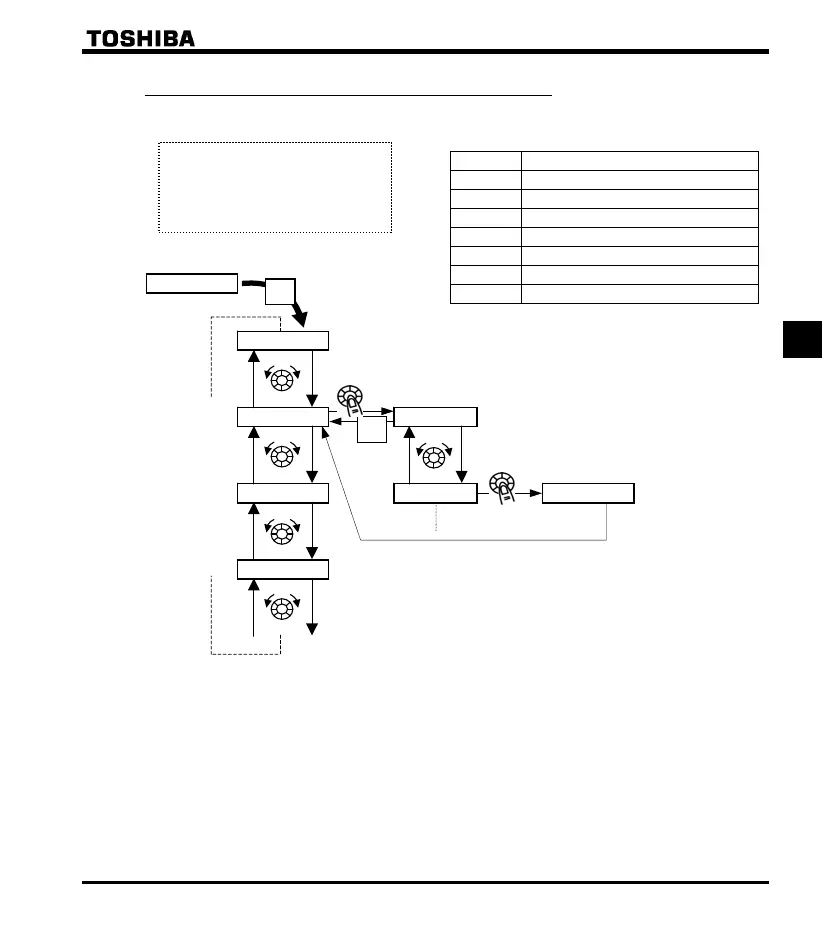

4.2.1 Settings in the Easy setting mode
The inverter enters this mode by pressing the MODE key when the Easy setting mode is selected
 Setting parameters in the Easy setting mode
(1) Selects parameter to be changed. (Turn the setting dial.)
(2) Reads the programmed parameter setting. (Press the center of the setting dial.)
(3) Change the parameter value. (Turn the setting dial.)
(4) Press this key to save the change. (Press the center of the setting dial.)
☆ To switch to the Standard setting mode, press the EASY key in the Standard monitor mode. "" is displayed,
and the mode is switched.
Easy setting mode (Default registered parameters)
Title Function
 Command mode selection

Frequency setting mode selection

Acceleration time 1

Deceleration time 1

Motor overload protection level 1

Connection meter adjustment

Registered parameter display selection
When you are unsure of something
during operation:
You can return to the Standard monitor
mode by pressing the MODE key
several times.
