E6582233
F-47
6

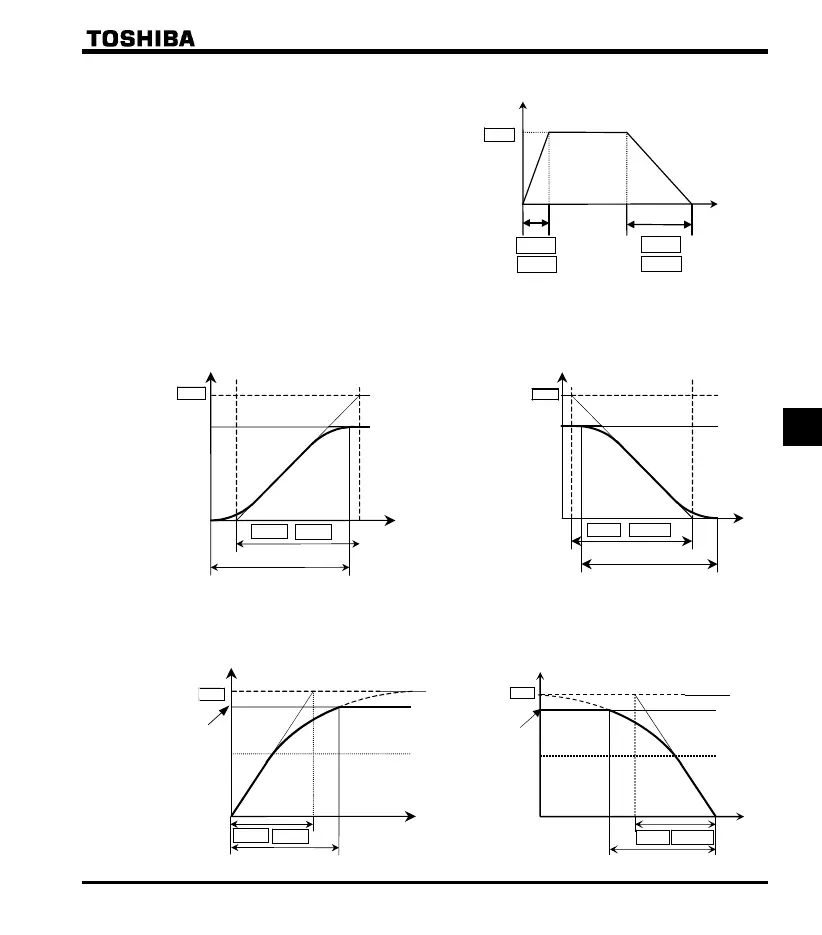

1) Linear acceleration/deceleration
Normal acceleration/deceleration
pattern.
Normally, this setting can be used.
2) S-pattern acceleration/deceleration 1
Used when necessary to accelerate or decelerate in a short period of time up to a high-speed area over 60
Hz, and to moderate shock at acceleration. Perfect for conveyance machinery.
Actual acceleration time
Max. frequency
Set frequency
Time [s]
Output frequency [Hz]
0
Actual deceleration time
Max. frequency
Set frequency
Time [s]
Output frequency [Hz]
0
3) S-pattern acceleration/deceleration 2
Motor acceleration torque increases slowly in areas with a small weak magnetic field. Perfect for operation of
high-speed spindles.
utput frequency [Hz]
Max. frequency
Time [s]
0
Max. frequenc
Set frequency
Actual acceleration time
Output frequency [Hz]
Time [s]
0
Base frequency
Set frequency
Actual deceleration time
Output frequency [Hz]
Time
[s]
0
Max. frequency
Base frequency
