Toshiba TOSVERT VF-nC3E User Manual

E6582233
G-3
7 7

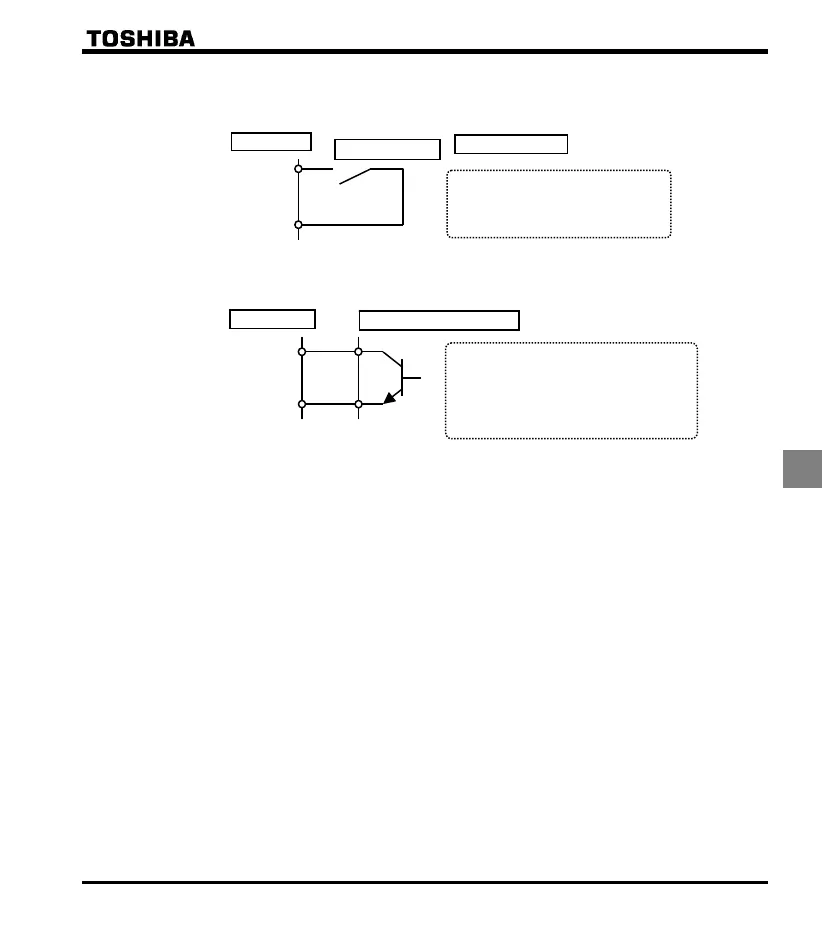

 Connecting
1) For logic input a
2) For connection (sink logic) via transistor output
 About programmable controllers and interfaces
Supply the power for logic input terminal from external to P24 terminal (external 24Vdc input terminal) in case of
controlling the inverter by using an open collector output of programmable controller.
CC
Input terminal
Operates by short circuiting between
the input terminal and CC (common).
Use for forward rotation, reverse
rotation, and multi-stage speed.
Inverte
r
Relay a-contac
t
With sink settings
Control by connecting the input terminal
and CC (common) to the output (non-logic
switch) of the programmable controller. Use
for forward rotation, reverse rotation, and
multi-stage speed. Use a 5 mA transistor
that operates at 24 V dc.
Inverte
r
Pro
g
rammable controlle
r
CC
Input terminal
