10.6 ARP
Address Resolution Protocol (ARP) records the mapping relationship between IP addresses and
MAC addresses in the ARP table. You can also define a static ARP cache entry on the page Static
ARP.
10.6.1 ARP Table
Choose the menu Routing→ARP→ARP Table to load the following page.

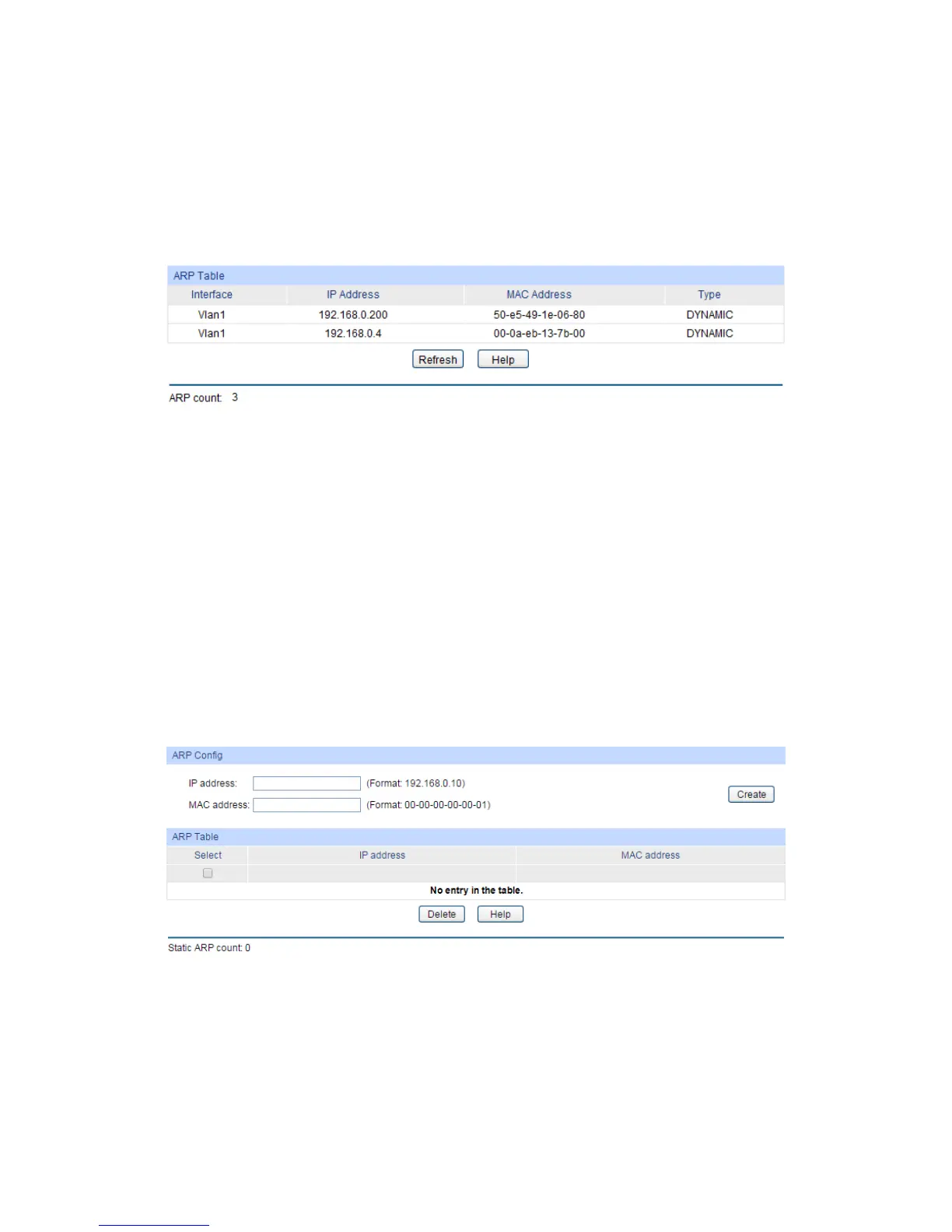

Figure 10-26 ARP Table
The following entries are displayed on this screen:
ARP Table
Interface: Displays the network interface of ARP entry.
IP Address: Enter the IP address of the ARP entry.
MAC Address: Displays the MAC address of ARP entry.
Type: Displays the type of ARP entry, e.g. Static, Dynamic.
10.6.2 Static ARP
You can configure the static ARP entry on this page.
Choose the menu Routing→ARP→Static ARP to load the following page.
Figure 10-27 Static ARP
ARP Config
IP Address: Configure the IP address of the ARP entry.
MAC address: Configure the MAC address of the ARP entry.
ARP Table
Here you can view or delete the current static ARP entries.
