115
OHA112A

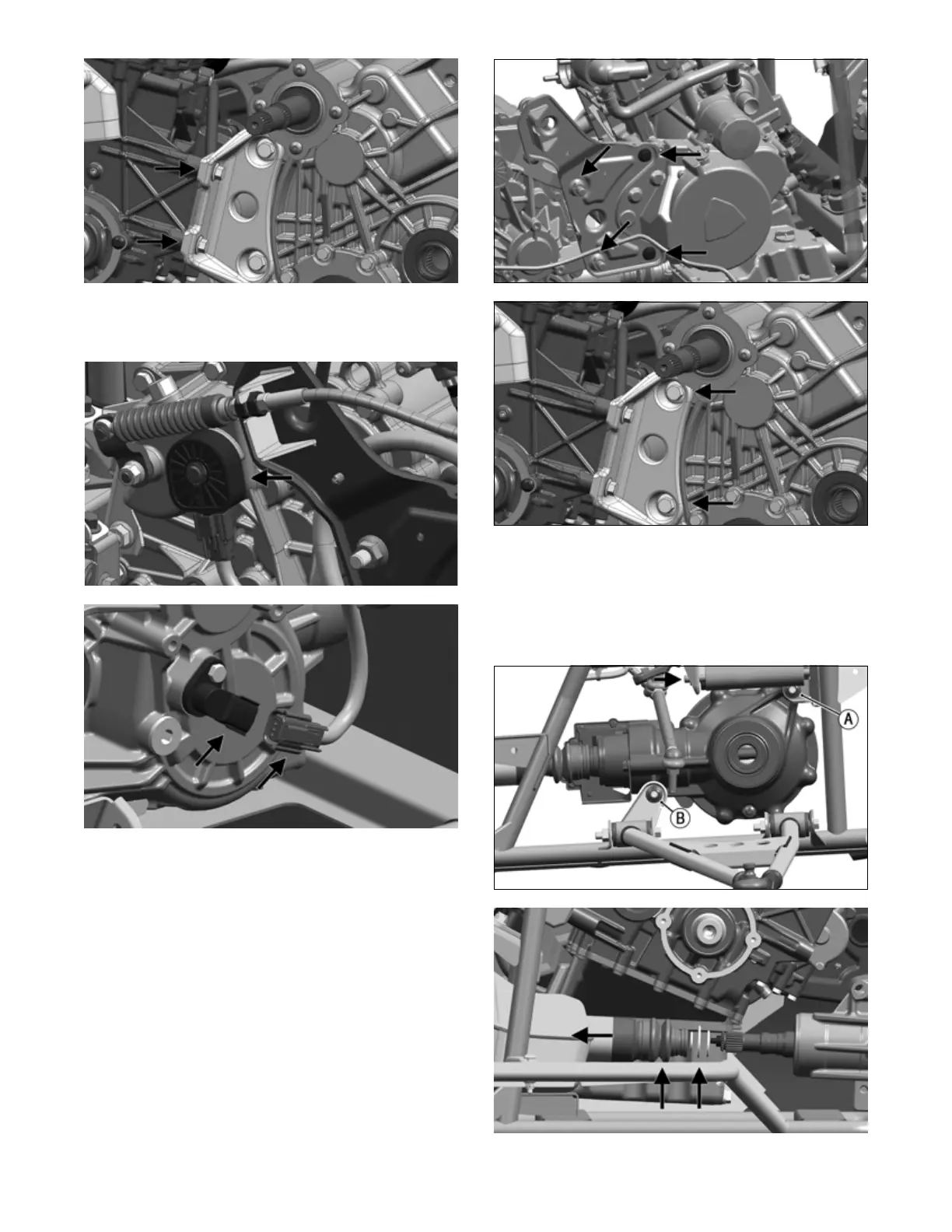

8. On right side, remove shift lever cable bracket, Dis-
connect the gear position switch connector and speed
sensor connector.
OHA100
OHA102
9. Remove the two right-side mounting plate bolts
securing engine, then remove the nuts holding plate
to transaxle and discard nuts. From left side of vehi-
cle, remove the bolts securing plate to transaxle.
Remove both the right-side plate and left-side
mounting bracket.
OHA142A
OHA112B
10. Remove front differential mounting bolts and discard
lock nuts, and move front differential and driveshaft
forward to disengage driveshaft from transaxle.
Account for boots and seals.
NOTE: The front differential does not have to be
removed to perform step 9.
OHA075
OHA118
