120
NKL043

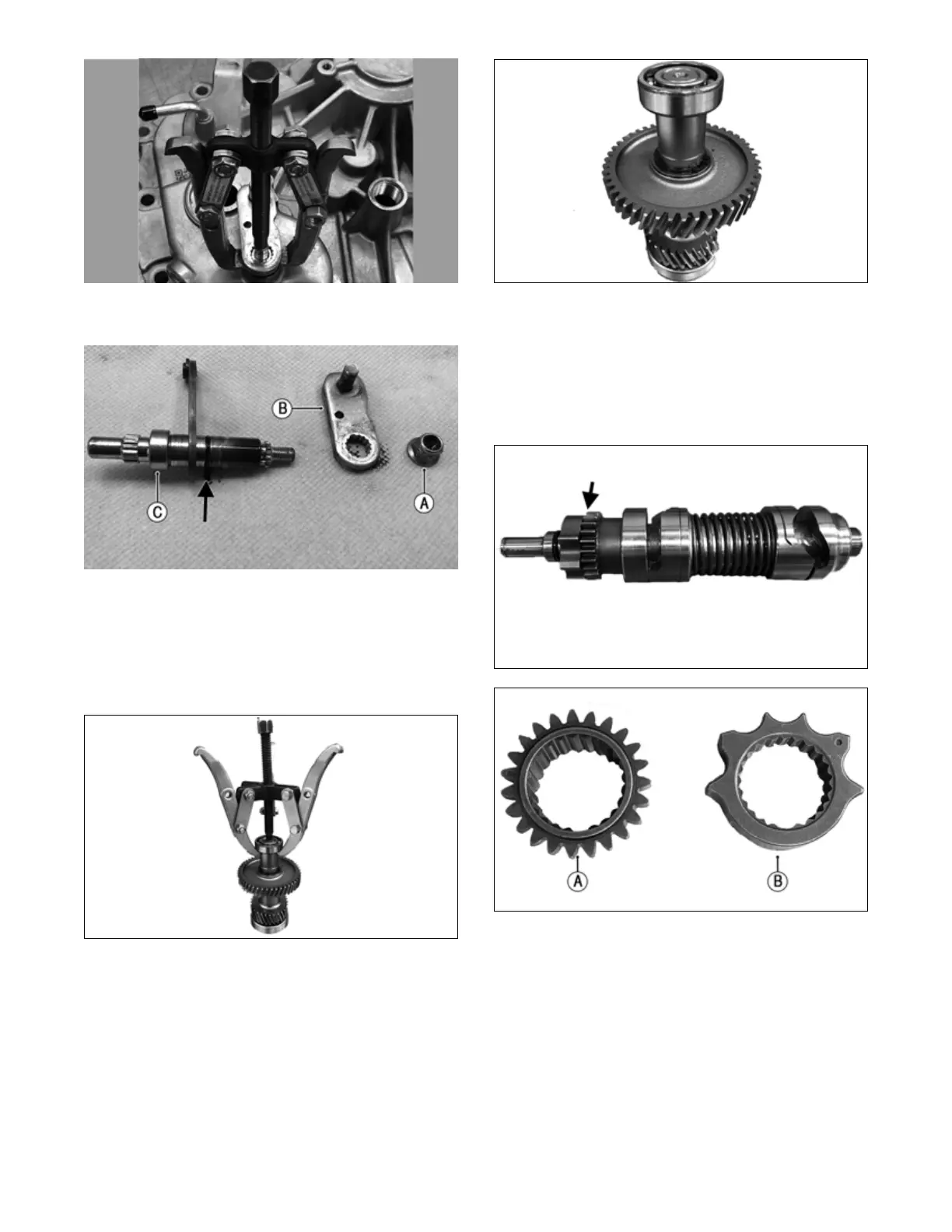

3. Push shift shaft (C) through case and remove.
Inspect and replace O-ring if needed.
NKL044
4. Reassemble in reverse order. Tight nut (A) to 15 ft-lb
(20.5 ± 3 N-m).
E. Idler Shaft
1. Inspect the bearings for free and smooth turning. If
either bearing does not turn freely, it must be
replaced.
NKL006
2. Inspect the gear teeth for nicks, cracks, chips, or
signs of wear. If any are present, the gear must be
replaced.
NKL007
3. Inspect the shaft gear teeth for nicks, cracks, chips,
or signs of wear. If any are present, the shaft must be
replaced.
F. Shift Drum
1. Check the shift drum gear (A) and (B) detent star for
nicks, cracks, chips, or signs of wear. If any are pres-
ent, the detent star must be replaced.
NKL0013
NKL0014
2. Remove the snap ring and washer.
To Next Page
