121
NKL015

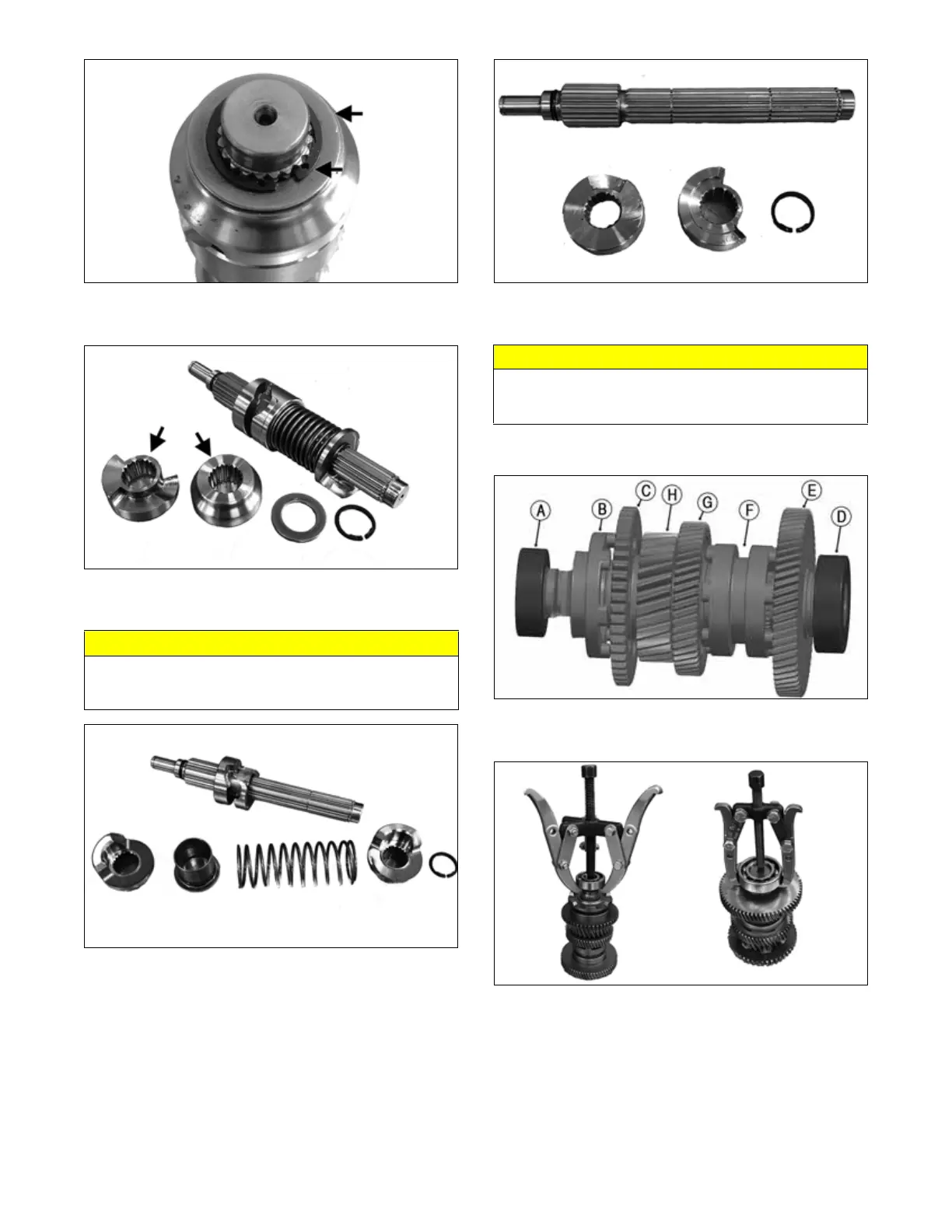

3. Then pull the cam off the shift drum. Inspect the cam
groove for signs of wear. If present, replace the cam.
NKL016
4. Next remove the snap ring, cam, spring, bushing, and
cam.
NKL017
5. Remove snap ring and cams. Check the shaft splines
for nicks, cracks, chips, or signs of wear. If any pres-
ent, the shaft must be replaced.
NKL018
6. Reassemble parts in reverse order of disassembly,
from step 5 to step 1.
G. Reverse Shaft
NKL027
1. Inspect the bearings for free and smooth turning. If a
bearing does not turn freely, it must be replaced.
NKL020
2. Remove bearing (A) and then remove engagement
dog (B), account for spacer. Inspect the dogs for
nicks, cracks, chips, or signs of wear. If any are pres-
ent, the dog must be replaced.
CAUTION
When removing snap ring, the cam is under a spring
load. Hold cam down during snap ring removal, then
slowly raise until spring pressure is released.
CAUTION
When installing snap ring, the cam is under a spring
load. Hold cam down and assembly away from you
during snap ring installation.
