TRENDnet TL2-G244 - Page 17

24-Port Gigabit Layer 2 Switch w/ 4 Shared Mini-GBIC Slots
4-2

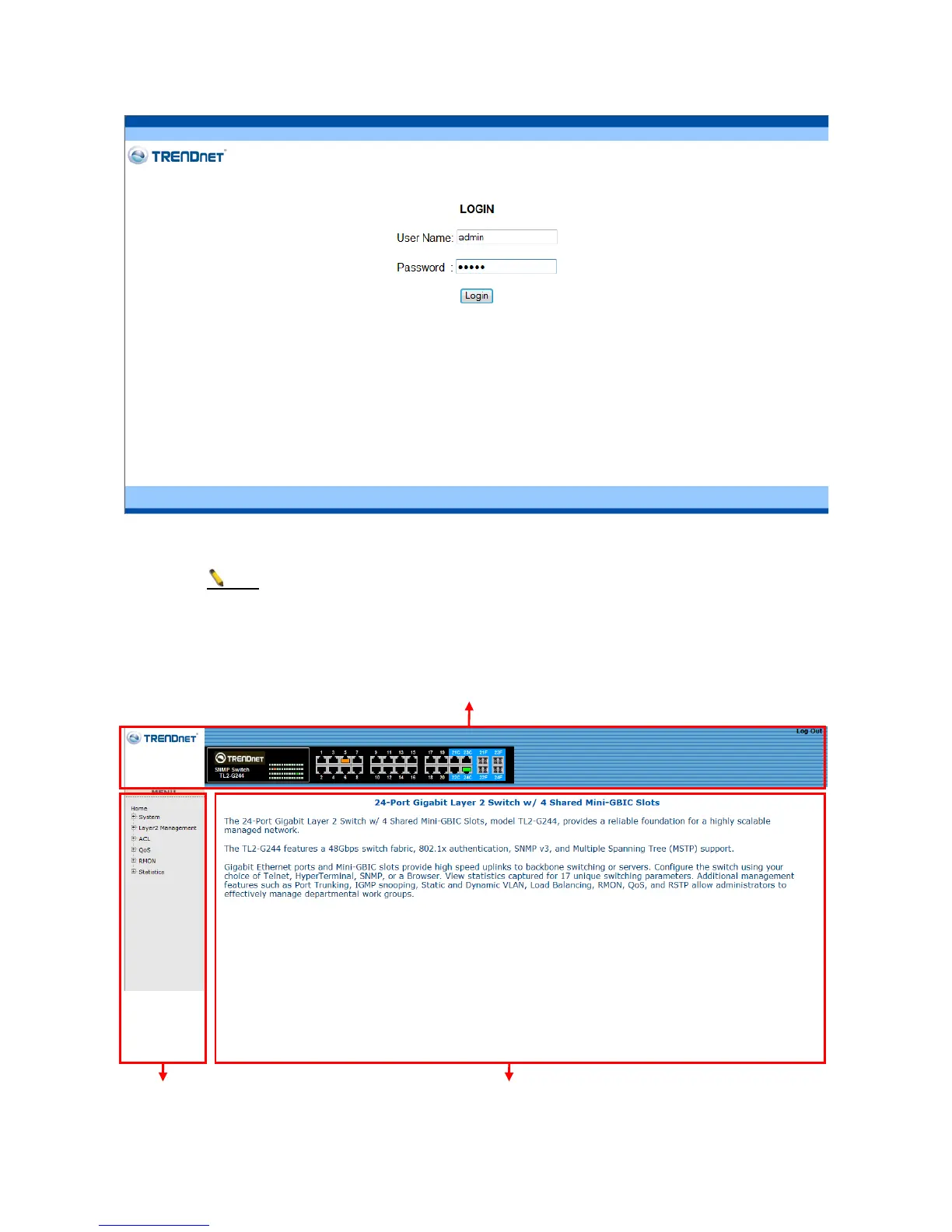

Figure 7 – Enter the IP address 192.168.10.200 in the web browser
Note
The default user name and password are:
User Name Password Privilege
admin admin 15
guest guest123 1
After login successfully, following page will appear.
Figure 8 – Web User Interface
The three main areas are the Device Status on top, the Function Tree, and the
Main Configuration Screen.
Device Status
Function Tree Main Configuration Screen
